Clutch System And Controls (400 Gt)

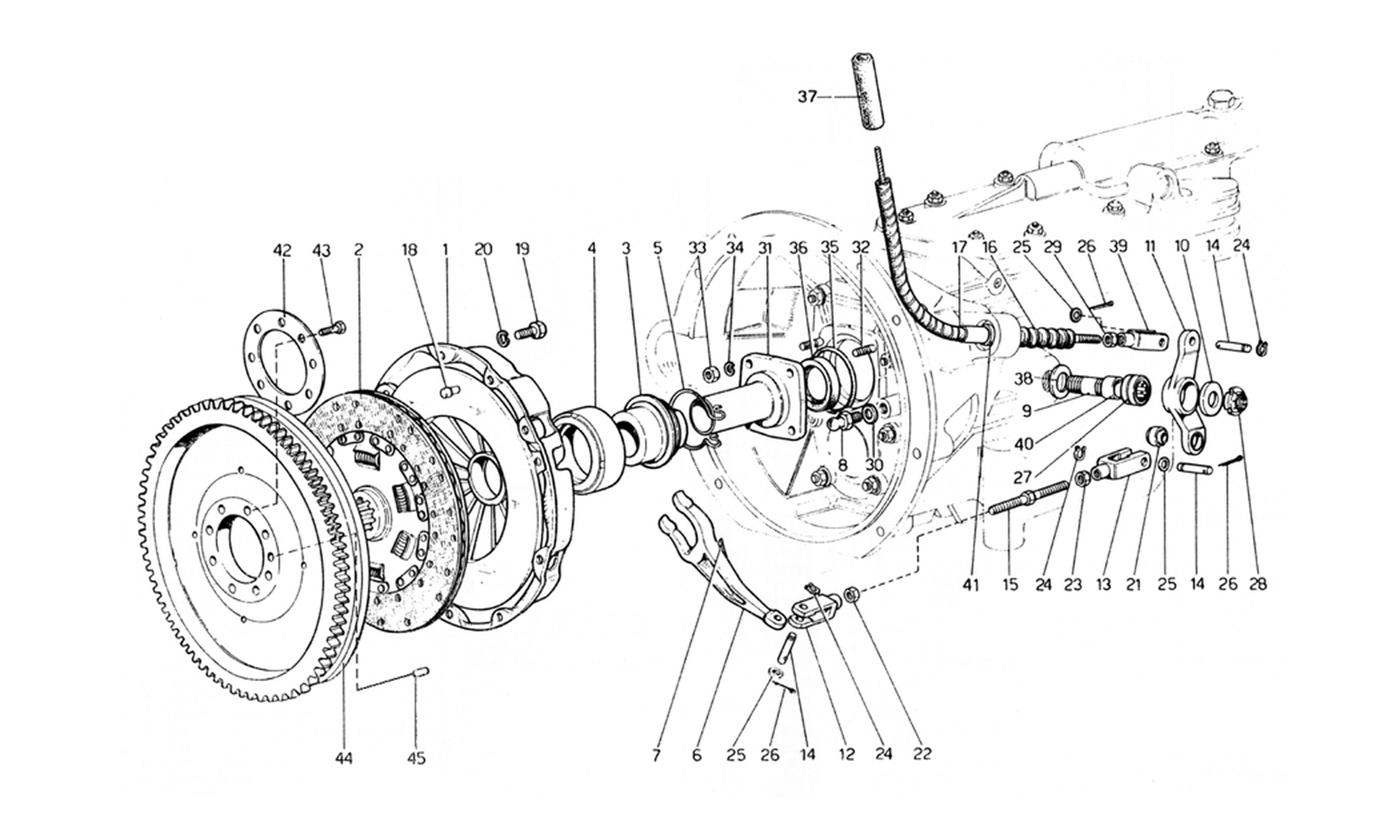

Schematic: Clutch System And Controls (400 Gt)
Loc
Part
Cond       Price
1
Clutch Cover 275
109382 (1) Full qty
1
Clutch Cover 275
109382 (1) Full qty
1
Clutch Pressure Plate V12
109382 (1) Full qty
2
Clutch Plate 275
110558 (1) Full qty
2
Clutch Disc
110558 (1) Full qty
2
Clutch Centre Plate 330 GT MK.…
110558 (1) Full qty
3
Assieme boccola e cuscinetto c…
100845 (1) Full qty
3
New       £ 185.80
100848 (1) Full qty
GB10160n
4
New       Price on Enquiry
100849 (1) Full qty
CL11616n
5
New       Price on Enquiry
105732 (1) Full qty
CL12002n
6
Clutch control lever
100847 (1) Full qty
6
Used       £ 434.50
100846 (1) Full qty
CL00021u
7
Clutch Fork Spring
100851 (1) Full qty
8
Ball and socket joint
100852 (1) Full qty
9
Perno per leva rinvio
105296 (1) Full qty
9
Stud
110923 (1) Full qty
10
Washer
100853 (1) Full qty
11
LEVER
100854 (1) Full qty
11
Lever
103539 (1) Full qty
12
Fork
108575 (1) Full qty
12
FORK
100575 (1) Full qty
13
Fork
100855 (1) Full qty
14
Pivot
100857 (3) Full qty
14
Clevis Pin
103218 (3) Full qty
15
Adjuster
101566 (1) Full qty
16
Protection boot
110947 (1) Full qty
17
Flexible for clutch control
110020 (1) Full qty
18
New       £ 19.67
101535 (3) Full qty
CL11899n
19
Bolt. securing clutch to flywh…
16043430 (6) Full qty
20
Washer
10516677 (6) Full qty
21
Bail joint
100860 (1) Full qty
22
New       £ 2.15
100861 (1) Full qty
CL12097n
23
New       £ 3.84
100862 (1) Full qty
CL12098n
24
Seeger Ring
11065475 (4) Full qty
25
WASHER
13550221 (4) Full qty
26
Cotter pin
10734101 (4) Full qty
27
Roller bearing
100864 (1) Full qty
28
Ring nut
100865 (1) Full qty
29
New       £ 2.15
100861 (1) Full qty
CL12097n
30
Washer
12601471 (1) Full qty
31
Flangia con manicotto
100863 (1) Full qty
32
Stud for cover of flywheel ins…
11500021 (4) Full qty
33
Nut
15896221 (4) Full qty
34
Washer
10516471 (4) Full qty
35
New       £ 2.20
101615 (1) Full qty
GB10132n
36
New       Price on Enquiry
106779 (1) Full qty
GE00430n
37
Protective tube for sheath
102508 (1) Full qty
38
Spacer
105297 (1) Full qty
39
Fork
100856 (1) Full qty
40
Ring
110924 (1) Full qty
41
Spacer
106024 (1) Full qty
42
Safety plate
108662 (1) Full qty
43
Flywheel Bolt
103875 (8) Full qty
44
Assieme volano corona
109267 (1) Full qty
45
New       £ 16.89
100185 (1) Full qty
CC11649n
