Webber Carburettors (38 Dcoe 110 - 111 - 110M - 111M)

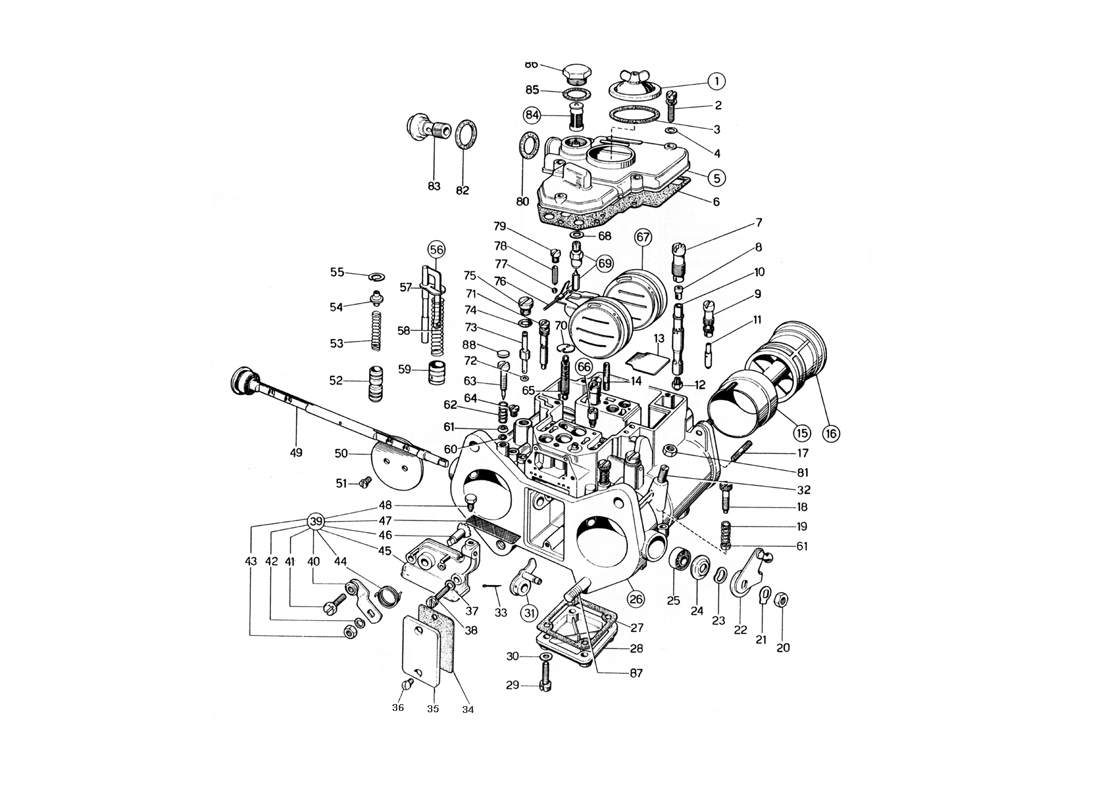

Schematic: Webber Carburettors (38 Dcoe 110 - 111 - 110M - 111M)
Schematic: Webber Carburettors (38 Dcoe 110 - 111 - 110M - 111M)
Loc
Part
Cond       Price
1
Cover
32376.003 (1) Full qty
2
Screw
64700.001 (5) Full qty
3
GASKET
41550.002 (1) Full qty
4
WASHER
55510.034 (5) Full qty
5
Cover
31734.071 (1) Full qty
5
Cover
31734.070 (1) Full qty
6
GASKET
41715.001 (1) Full qty
7
Portagetto
52580.001 (2) Full qty
8
Getto aria di freno (210)
41365.001 (2) Full qty
9
Portagetto
52585.006 (2) Full qty
10
Tubetto emulslonatore
61450.033 (2) Full qty
11
Getto minimo F 24/45
41165.058 (2) Full qty
11
Getto minimo F 24/45
41165.058 (2) Full qty
12
Getto principale (125)
41110.001 (2) Full qty
13
PLATE
52130.003 (1) Full qty
14
THREADED STUD
64955.007 (1) Full qty
15
Diffuser
34926.002 (2) Full qty
16
Centratore (450)
31906.006 (2) Full qty
17
THREADED STUD
64955.103 (2) Full qty
18
Screw
64585.005 (1) Full qty
19
Spring
47600.007 (1) Full qty
20
Carb Nut
34710.003 (1) Full qty
21
Carb Lock Tab
55520.004 (1) Full qty
21
Carb Lock Tab
55520.004 (1) Full qty
22
LEVER
45034.094 (1) Full qty
22
LEVER
45034.093 (1) Full qty
23
WASHER
47600.063 (1) Full qty
24
Gasket or Seal
41570.001 (2) Full qty
25
Bearing
32650.001 (2) Full qty
26
Corpo carburatore completo di …
19536.002 (1) Full qty
27
GASKET
41640.001 (1) Full qty
28
COVER
32374.008 (1) Full qty
29
Screw
64700.001 (4) Full qty
30
WASHER
55510.034 (4) Full qty
31
LEVER
45082.005 (1) Full qty
32
Screw
64750.002 (2) Full qty
33
Pin
58445.001 (1) Full qty
34
GASKET
41640.021 (1) Full qty
35
COVER
52135.024 (1) Full qty
36
Screw
64570.009 (2) Full qty
37
WASHER
55510.038 (2) Full qty
38
Screw
64700.004 (2) Full qty
39
Comando awiamento
32556.023 (1) Full qty
40
LEVER
45025.003 (1) Full qty
41
Screw
64615.004 (1) Full qty
42
WASHER
55525.010 (1) Full qty
43
Nut
34715.010 (1) Full qty
44
Spring
47610.042 (1) Full qty
45
COVER
32556.006 (1) Full qty
46
Alberino awiamento
10085.009 (1) Full qty
47
Reticella f iltrante
37000.016 (1) Full qty
48
Screw
64605.017 (1) Full qty
49
Alberino per farfalle
10005.401 (1) Full qty
50
Valvola a farfalla
64005.047 (2) Full qty
51
Screw
64570.006 (4) Full qty
52
Valvola stantuffo
64330.003 (2) Full qty
53
Spring
47600.005 (2) Full qty
54
Ritegno eguida molla
12775.004 (2) Full qty
55
Seeger Ring
10140.010 (2) Full qty
56
Asta comando pompa
10410.016 (1) Full qty
57
PLATE
52140.004 (1) Full qty
58
Spring
47600.055 (1) Full qty
59
Stantuffo pompa
58602.003 (1) Full qty
60
GASKET
41565.002 (3) Full qty
61
Scodellino
58000.006 (3) Full qty
62
Spring
47600.007 (2) Full qty
63
Screw
64750.023 (2) Full qty
64
Tappo ispezione
61015.002 (2) Full qty
65
Spring
47605.009 (1) Full qty
66
Valvola aspirazione e scarico …
64290.001 (1) Full qty
67
Galleggiante
41030.004 (1) Full qty
68
GASKET
41535.015 (1) Full qty
69
Valvola a spillo (150)
64240.004 (1) Full qty
70
Piattello
52210.006 (1) Full qty
71
Getto awiamento (065)
41205.101 (2) Full qty
72
GASKET
41535.036 (2) Full qty
73
Getto pompa (035)
82201.035 (2) Full qty
74
GASKET
41565.009 (2) Full qty
75
Plug
61015.008 (2) Full qty
76
Pivot
52000.001 (1) Full qty
77
Sf era per valvola
58300.001 (2) Full qty
78
Premisfera
52730.001 (2) Full qty
79
Tappo chiusura valvola
61015.006 (2) Full qty
80
GASKET
100366 (1) Full qty
81
Nut
34705.001 (2) Full qty
82
GASKET
100365 (1) Full qty
83
Union
100364 (1) Full qty
84
Elemento filtrante
37022.002 (1) Full qty
85
GASKET
41530.024 (1) Full qty
86
Plug
61002.010 (1) Full qty
87
THREADED STUD
64955.103 (2) Full qty
88
Tappo colore bianco per inviol…
111183 (12) Full qty
