Central Console Components

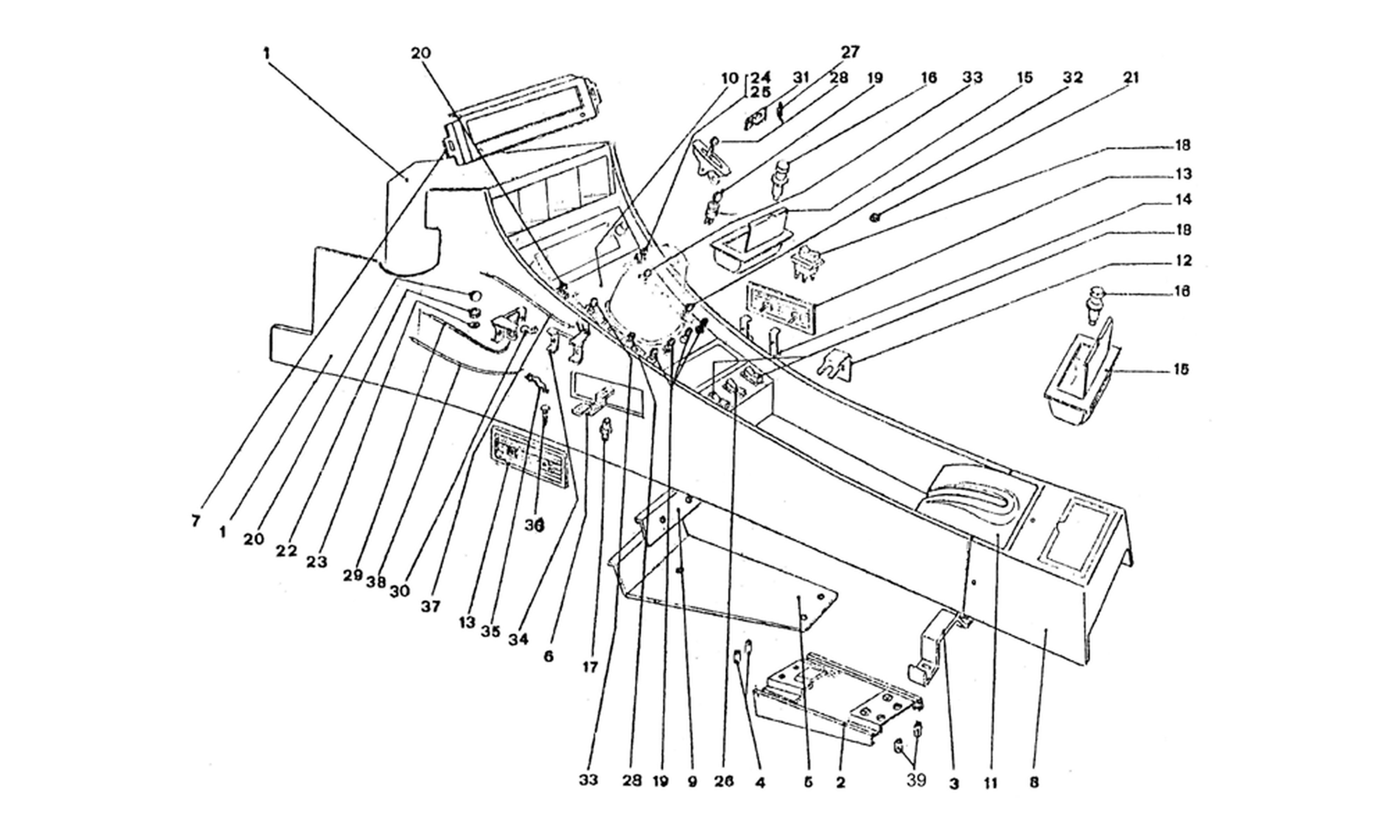

Schematic: Central Console Components
Loc
Part
Cond       Price
1
RH Side Panel LHD
255-62-060-00 (1) Full qty
1
LH Side Panel LHD
255-62-061-00 (1) Full qty
1
RH Side Panel RHD
256-62-060-00 (1) Full qty
1
LH Side Panel RHD
256-62-061-00 (1) Full qty
2
Support
253-62-082-06 (1) Full qty
3
Bracket
253-62-074-01 (1) Full qty
4
Space
255-62-088-01 (2) Full qty
4
Space
255-62-089-01 (2) Full qty
5
Panel
253-62-092-00 (1) Full qty
6
Bracket
253-62-114-01 (1) Full qty
7
CENTRE CONSOLE TOP SEC 400
253-62-124-06 (1) Full qty
8
REAR CONSOLE SECTION
255-62-130-00 (1) Full qty
9
PANEL
255-62-162-00 (1) Full qty
10
CENTRE CONSOLE
255-62-170-00 (1) Full qty
11
LOWER REAR COVER
255-62-178-00 (1) Full qty
12
SIDE BRACKET
253-62-186-06 (2) Full qty
13
Vent Grille
691-76-688-00 (2) Full qty
14
CLIP
691-76-694-00 (4) Full qty
15
New       Price on Enquiry
253-64-920-00 (2) Full qty
NT00110n
16
New       £ 274.45
253-80-670-00 (1) Full qty
NT10209n
17
Lamp holder
253-80-760-00 (1) Full qty
18
WINDOW SWITCH
255-80-860-00 (2) Full qty
19
New       £ 48.09
244-80-864-00 (4) Full qty
NT10154n
20
Knob
253-80-872-00 (1) Full qty
21
Ring nut
244-80-882-02 (5) Full qty
22
Ring nut
253-80-882-02 (1) Full qty
23
Washer
246-80-882-02 (6) Full qty
24
SWITCH
253-80-884-00 (1) Full qty
25
New       £ 48.09
244-80-864-00 (1) Full qty
NT10154n
26
FOG LAMP SWITCH
255-80-864-00 (1) Full qty
27
Switch
802-80-816-00 (1) Full qty
28
CHOKE LEVER
253-77-550-02 (1) Full qty
29
Cable
253-77-562-00 (1) Full qty
30
BRACKET
255-76-580-06 (1) Full qty
31
Stop
255-76-586-01 (1) Full qty
32
HEATER DASH CONTROL
251-86-200-02 (1) Full qty
33
LEVER
253-86-240-02 (2) Full qty
34
BRACKET
246-86-204-06 (3) Full qty
35
Bracket
246-86-210-01 (4) Full qty
36
HEATER CONTROLS FIXING SCREW
0-241-86-230-01 (5) Full qty
37
Cable
253-86-638-00 (2) Full qty
38
Cable
253-87-640-00 (1) Full qty
38
CABLE
255-90-192-00 (2) Full qty
