Front Frame Components

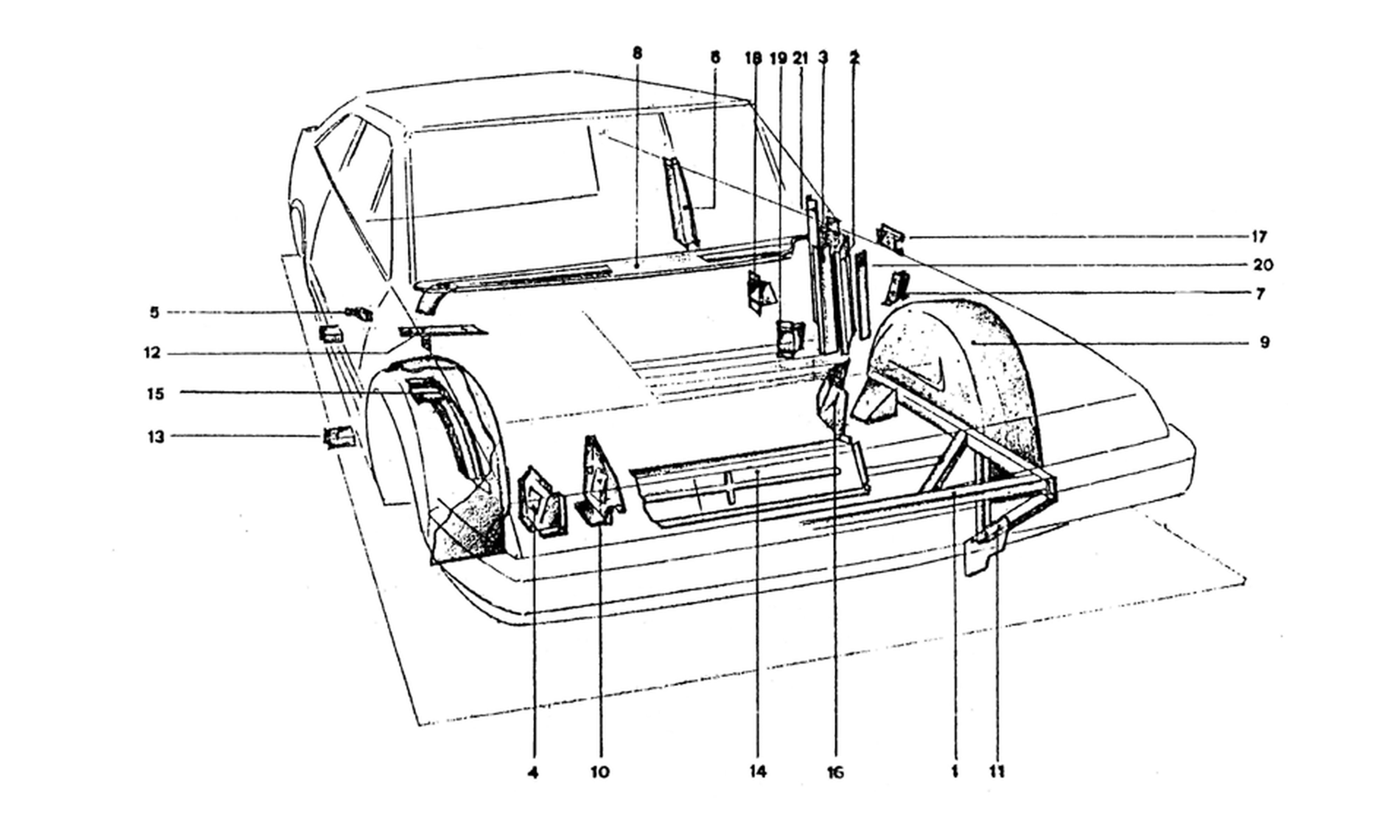

Schematic: Front Frame Components
Loc
Part
Cond       Price
1
CHASSIS SUB FRAME
255-12-002-07 (1) Full qty
1
365GTC4 FRONT NOSE SUB-FRAME
253-13-002-07 (1) Full qty
2
OUTER PLATE RH
255-12-204-07 (1) Full qty
2
OUTER PLATE LH
255-12-205-07 (1) Full qty
3
INNER PLATE RH
255-12-208-07 (1) Full qty
3
INNER PLATE LH
255-12-209-07 (1) Full qty
4
BRACKET
255-12-165-07 (1) Full qty
4
BRACKET
255-12-164-07 (1) Full qty
5
RH SUPPORT
255-12-292-07 (1) Full qty
5
LH SUPPORT
255-12-293-07 (1) Full qty
6
PANEL
255-12-300-07 (1) Full qty
6
PANEL
255-12-301-07 (1) Full qty
7
SUPPORT LH
255-10-599-07 (1) Full qty
7
SUPPORT RH
255-10-598-07 (1) Full qty
8
CROSS RAIL LHD
255-12-780-7 (1) Full qty
8
CROSS RAIL RHD
256-12-780-07 (1) Full qty
9
LH FRONT WHEEL ARCH (LHD EARLY…
255-10-561-07 (1) Full qty
9
INNER WING PANEL
256-10-561-07 (1) Full qty
9
WHEEL ARCH PANEL
256-10-560-07 (1) Full qty
9
RH FRONT WHEEL ARCH (LHD EARLY…
255-10-560-07 (1) Full qty
10
RH RAD SUPPORT
255-10-620-06 (1) Full qty
10
LH RAD SUPPORT
255-10-621-06 (1) Full qty
11
LOWER RAD COVER
255-92-154-06 (2) Full qty
12
BRACKET
256-10-896-07 (1) Full qty
13
BRACKET
255-10-904-07 (4) Full qty
14
UPPER CENTRE COVER
255-10-600-07 (1) Full qty
15
PILLAR RH
255-10-552-07 (1) Full qty
15
PILLAR LH
255-10-553-07 (1) Full qty
16
PANEL
255-10-568-07 (1) Full qty
16
PANEL
255-10-569-07 (1) Full qty
17
SUPPORT LH
255-12-063-07 (1) Full qty
17
SUPPORT RH
255-12-062-07 (1) Full qty
18
PANEL RH
255-12-224-07 (1) Full qty
18
PANEL LH
255-12-225-07 (1) Full qty
19
PANEL RH
255-12-228-07 (1) Full qty
19
PANEL LH
255-12-229-07 (1) Full qty
20
FRONT LH PLATE
255-12-271-07 (1) Full qty
20
FRONT RH PLATE
255-12-270-07 (1) Full qty
21
RH PLATE
255-12-272-07 (1) Full qty
21
LH PLATE
255-12-273-07 (1) Full qty
