Weber Carburettor (40 Dfi-5)

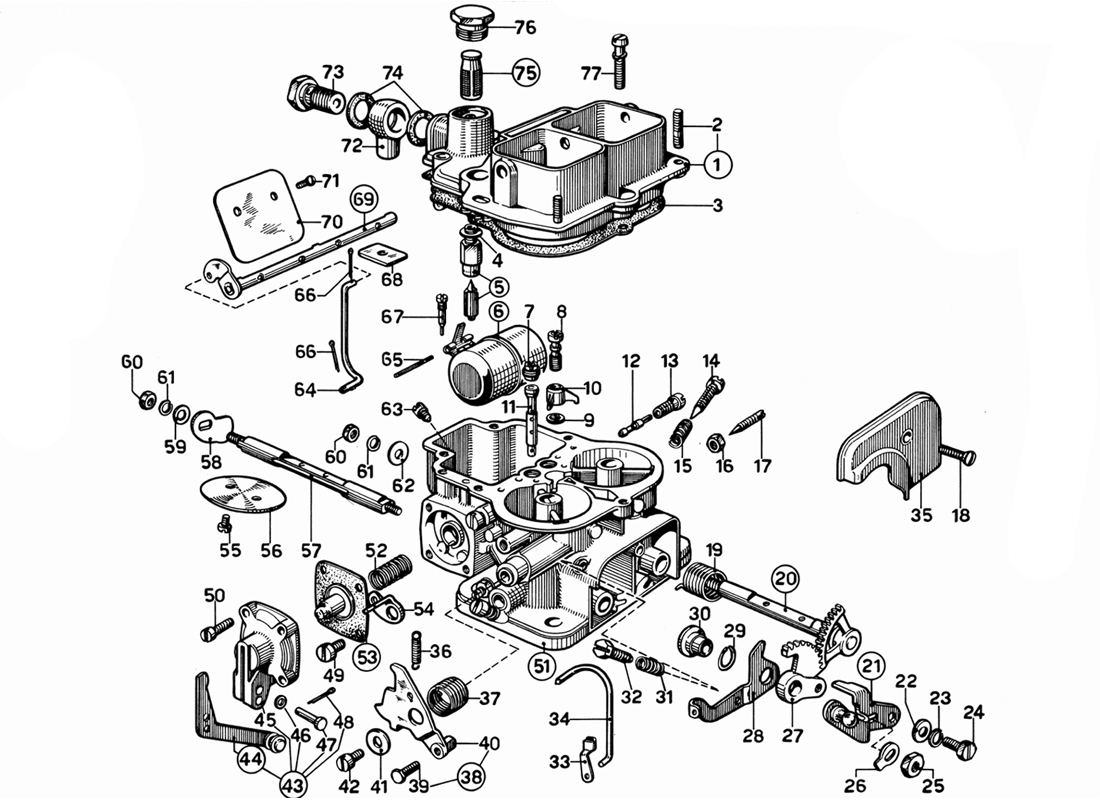

Schematic: Weber Carburettor (40 Dfi-5)
Loc
Part
Cond       Price
1
COVER
31716017 (1) Full qty
2
SCREW
64955002 (3) Full qty
3
GASKET OR SEAL
41705020 (1) Full qty
4
GASKET
83102070 (1) Full qty
5
VALVE SPILLO
64240013 (1) Full qty
6
FLOAT
41015004 (1) Full qty
7
JET AIR BRAKE
41360001 (2) Full qty
8
VALVOLA MANDATORY POMP
64290005 (1) Full qty
9
GASKET OR SEAL
41530012 (1) Full qty
10
JET PUMP
41252013 (1) Full qty
11
TUBE EMULSIFIER
61440166 (2) Full qty
12
JET MIN
41160003 (2) Full qty
13
MINIMUM SIDE PROTECTION
52570005 (2) Full qty
14
SCREW
64750009 (2) Full qty
15
SPRING
47600007 (2) Full qty
16
NUT
34705001 (2) Full qty
17
SCREW
64750010 (2) Full qty
18
SCREW
64570010 (1) Full qty
19
SPRING
47610039 (1) Full qty
20
POST RIGHT
10015459 (1) Full qty
21
LEVER
45034030 (1) Full qty
22
WASHER
55510046 (1) Full qty
23
WASHER
55525001 (1) Full qty
24
SCREW
64615003 (1) Full qty
25
NUT
34710003 (1) Full qty
26
WASHER
55520004 (1) Full qty
27
SECTOR DENTATO
58202016 (1) Full qty
28
LEVER
45032085 (1) Full qty
29
WASHER
55530002 (1) Full qty
30
BUSH
12765003 (1) Full qty
31
SPRING
47600007 (1) Full qty
32
SCREW
64625001 (1) Full qty
33
CLIP
47670001 (1) Full qty
34
TIRANTINO
61280043 (1) Full qty
35
COPERC''IIO BOX AREAS
32464004 (1) Full qty
36
SPRING
47605022 (1) Full qty
37
SPRING
47610056 (1) Full qty
38
LEVER
45202024 (1) Full qty
39
SCREW
64615004 (1) Full qty
40
LEVER
45202025 (1) Full qty
41
WASHER
55510002 (1) Full qty
42
SCREW
64700012 (1) Full qty
43
COVER
32486014 (1) Full qty
44
LEVER
45103003 (1) Full qty
45
COVER
32484001 (1) Full qty
46
WASHER
55530006 (1) Full qty
47
PIVOT
52010033 (1) Full qty
48
SPLIT PIN
32610006 (1) Full qty
49
SCREW
64895004 (1) Full qty
50
SCREW
64700004 (4) Full qty
51
Nut
- (1) Full qty
52
SPRING
47600107 (1) Full qty
53
MEMBRANE POMP
47407014 (1) Full qty
54
LEVER
45032091 (1) Full qty
55
SCREW
64520023 (4) Full qty
56
VALVO A FARFA
64005087 (2) Full qty
57
POST LEFT
10000426 (1) Full qty
57
POST PLUS S
10001454 (1) Full qty
58
CAMMA COMMAND POMP
14850003 (1) Full qty
59
WASHER
55510046 (1) Full qty
60
NUT
34705001 (2) Full qty
61
WASHER
55525001 (2) Full qty
62
WASHER
55510002 (1) Full qty
63
JET HOME
41120001 (2) Full qty
64
TIRANTINO
61280045 (1) Full qty
65
PIVOT FASTENING
52000015 (1) Full qty
66
SPLIT PIN
32610006 (2) Full qty
67
SCREW
64900001 (1) Full qty
68
PLATE
52135010 (1) Full qty
69
POST START
10020206 (1) Full qty
70
BUTTERFLY START
64010007 (2) Full qty
71
SCREW
64525003 (4) Full qty
72
UNION
10354012 (1) Full qty
73
SCREW
12715021 (1) Full qty
74
Fuel Inlet Gasket
41530001 (2) Full qty
75
FILTER ELEMENT
37022002 (1) Full qty
76
FUEL FILTER INSPECTION
61002018 (1) Full qty
77
SCREW
64700005 (5) Full qty
