Pedal Board - Brake Control

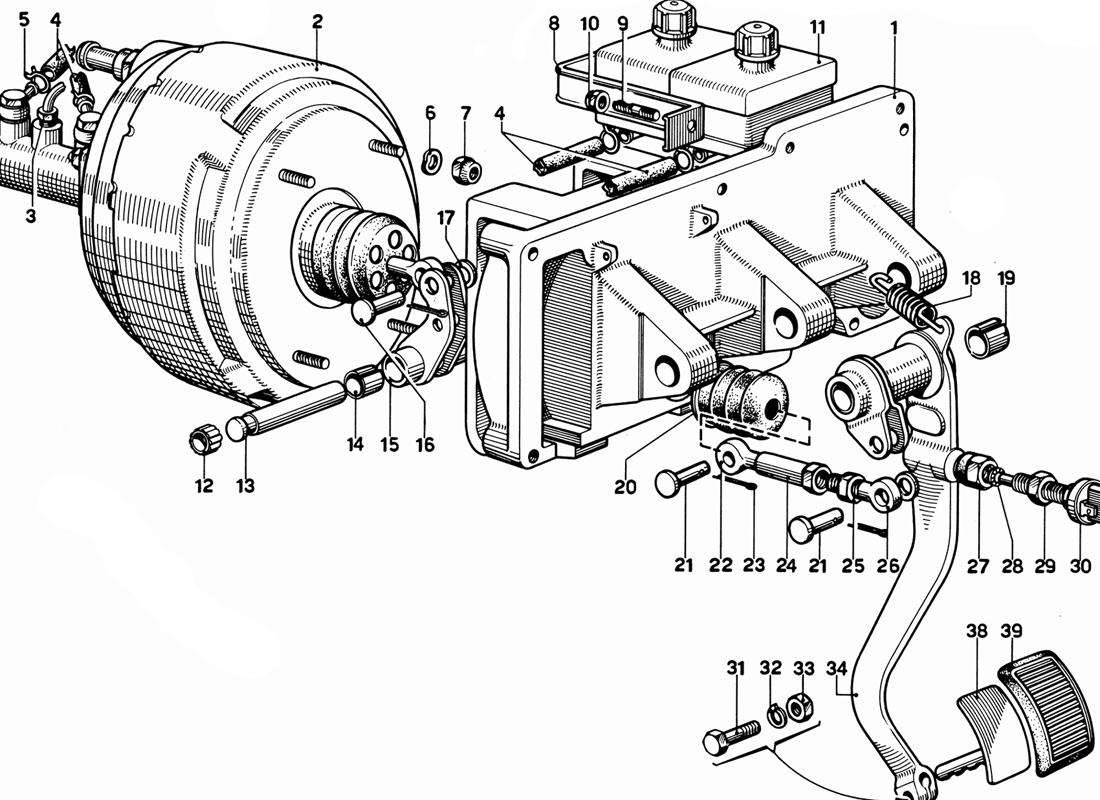

Schematic: Pedal Board - Brake Control
Loc
Part
Cond       Price
1
SUPPORT
660680 (1) Full qty
1
PEDAL ASSEMBLY
1362 (1) Full qty
2
Nut
- (1) Full qty
3
THE BRAKE HOSE ALL''APPARECCHI…
680449 (1) Full qty
4
Fluid Hose Reservoir To Master…
660197 (2) Full qty
5
SPRING
94951 (4) Full qty
6
WASHER
12001 (4) Full qty
7
Nut
- (4) Full qty
8
HOSE FOR OIL STORAGE TANK
660687 (1) Full qty
9
THREADED STUD
95920110 (2) Full qty
10
Cam/Chain Cover Nuts
101239 (2) Full qty
10
Cam/Chain Cover Nuts
101239 (2) Full qty
10
New       £ 7.21
101239 (2) Full qty
CH11808n
11
BRAKE FLUID RESERVOIR
660442 (2) Full qty
12
RING
BNI2X7 (1) Full qty
13
PIVOT
660333 (1) Full qty
14
BUSH
660347 (2) Full qty
15
New       £ 149.60
660544 (1) Full qty
PB13997n
16
PIVOT
660574 (1) Full qty
17
WASHER
10R2 (3) Full qty
18
SPRING
660343 (1) Full qty
19
BUSH
MB1820DU (2) Full qty
20
BELLOWS DUST
660340 (1) Full qty
21
New       £ 14.00
660169 (2) Full qty
BS00778n
22
TIE ROD
660575 (1) Full qty
23
SPLIT PIN
C1 (3) Full qty
24
SLEEVE FOR THE REGISTER
660395 (1) Full qty
25
LOCKNUT
95285 (1) Full qty
26
TIE ROD
660167 (1) Full qty
27
NUT
660573 (1) Full qty
28
WASHER
660525 (1) Full qty
29
NUT
660524 (1) Full qty
30
Brake Light Switch
101663 (1) Full qty
31
BOLT
95192 (2) Full qty
32
WASHER
REG8 (2) Full qty
33
Nut
- (2) Full qty
34
BRAKE LEVER ASSEMBLY
660636 (1) Full qty
38
BRAKE PEDAL ASSEMBLY
660734 (1) Full qty
39
COVER PEDAL
660469 (1) Full qty
