Heater Matrix & Ventilation

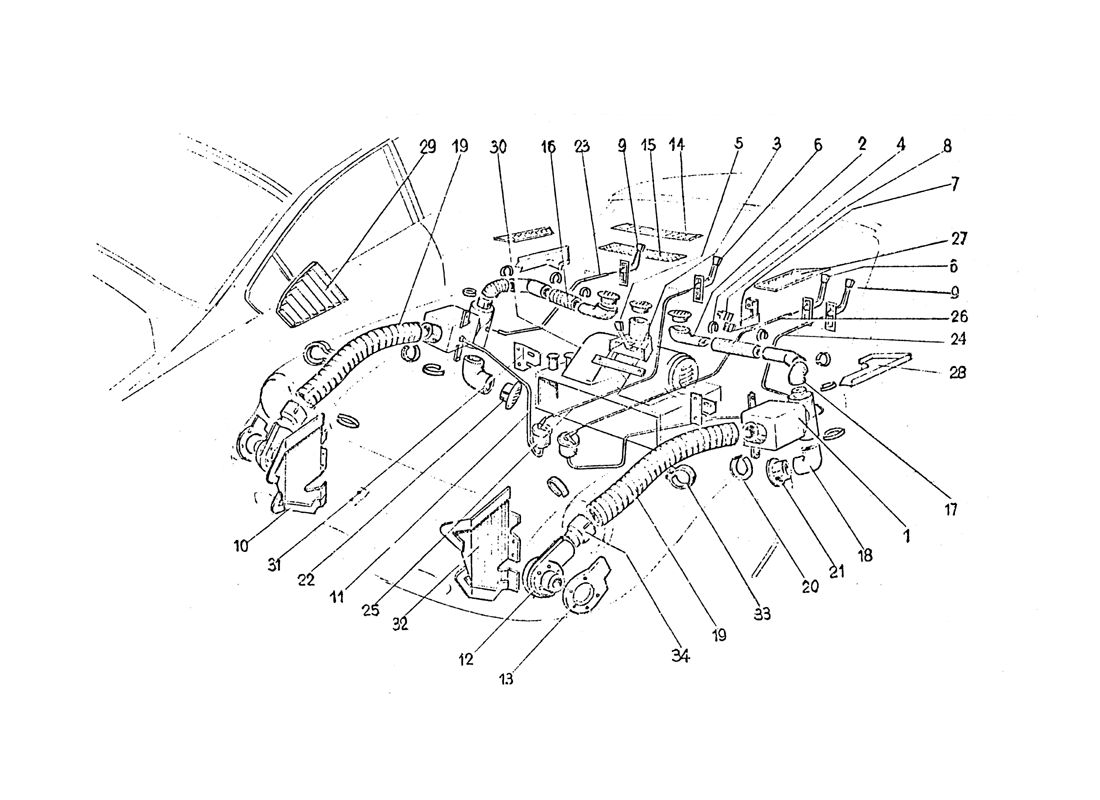

Schematic: Heater Matrix & Ventilation
Loc
Part
Cond       Price
1
RH Heater unit
246-86-002-06 (1) Full qty
1
LH Heater unit
246-86-003-06 (1) Full qty
2
RH Air Vent Tubing
251-86-102-00 (1) Full qty
2
LH Air Vent Tubing
251-86-103-00 (1) Full qty
2
RH Air Vent Tubing
251-86-102-10 (1) Full qty
2
LH Air Vent Tubing
251-86-103-10 (1) Full qty
3
Central Air Vent
251-86-110-06 (1) Full qty
4
Clip
241-86-130-00 (1) Full qty
5
Knob
251-86-132-00 (1) Full qty
6
HEATER DASH CONTROL
251-86-200-02 (2) Full qty
7
BRACKET
246-86-204-06 (1) Full qty
8
Bracket
246-86-210-01 (1) Full qty
9
Heater control device
251-86-240-02 (2) Full qty
10
Gasket
242-86-266-00 (1) Full qty
11
RH Tube
251-86-312-00 (1) Full qty
11
LH Tube
251-86-313-00 (1) Full qty
12
RH FAN MOTOR
242-86-350-00 (1) Full qty
12
LH FAN MOTOR
242-86-351-00 (1) Full qty
13
Plastic Finish
242-86-360-06 (1) Full qty
14
Grill
251-86-502-06 (1) Full qty
15
Vent
251-86-510-06 (1) Full qty
16
Rubber Tube
251-86-526-00 (1) Full qty
17
Rubber Tube
251-86-528-00 (1) Full qty
18
Flexible Pipe
246-86-530-00 (1) Full qty
19
Hose
251-86-550-00 (1) Full qty
20
Clip
241-86-552-00 (1) Full qty
21
Air Vent
251-86-630-06 (1) Full qty
22
LH Deflector Air Vent LHD
246-86-630-16 (1) Full qty
22
LH Deflector Air Vent LHD
246-86-630-16 (1) Full qty
23
Cable
251-86-638-00 (1) Full qty
23
RH Cable
251-86-638-10 (1) Full qty
24
LH Cable
243-86-638-00 (1) Full qty
24
LH Cable
243-86-638-10 (1) Full qty
25
RH Cable
251-86-640-00 (1) Full qty
25
RH Cable
251-86-640-10 (1) Full qty
26
LH Cable
246-86-640-00 (1) Full qty
26
LH Cable
246-86-640-10 (1) Full qty
27
New       £ 290.40
251-86-650-06 (1) Full qty
ET00236n
27
New       £ 290.40
251-86-651-06 (1) Full qty
ET00238n
28
RH Drip Tray
251-86-658-00 (1) Full qty
28
LH Drip Tray
251-86-659-00 (1) Full qty
29
RH Grill
251-86-660-06 (1) Full qty
29
LH Grill
251-86-661-06 (1) Full qty
30
Condizionatore aria interno ve…
251-86-850-06 (1) Full qty
31
Bracket / sinistraupport
246-86-938-00 (1) Full qty
31
Bracket / sinistraupport
246-86-939-00 (1) Full qty
32
RH Panel RHD
251-86-954-06 (1) Full qty
32
LH Panel RHD
251-86-955-06 (1) Full qty
32
RH Panel LHD
252-86-954-06 (1) Full qty
32
LH Panel LHD
252-86-955-06 (1) Full qty
33
Clip
242-12-768-00 (1) Full qty
34
Tube
242-86-288-16 (1) Full qty
