Doors & Trim

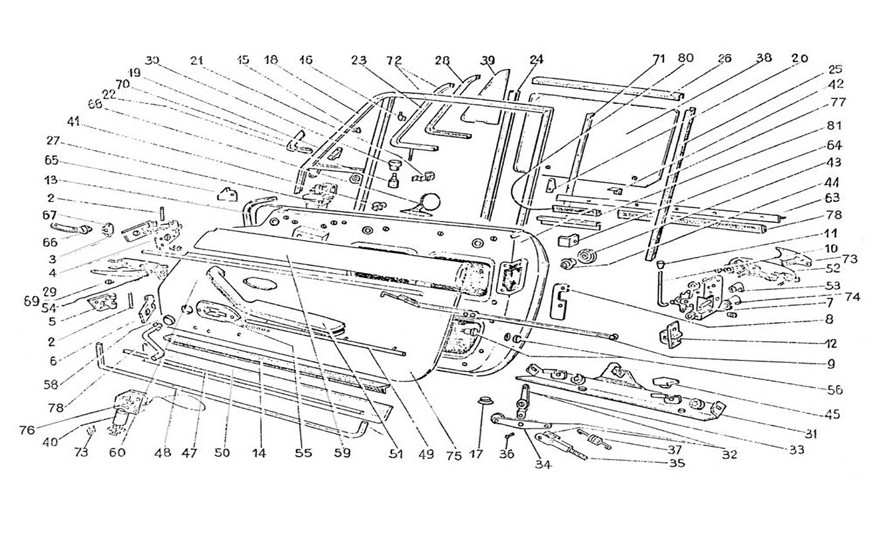

Schematic: Doors & Trim
Schematic: Doors & Trim
Loc
Part
Cond       Price
1
RH Door C/W Skin
251-30-004-07 (1) Full qty
1
LH Door C/W Skin
251-30-005-08 (1) Full qty
2
Door Hinge Pin
241-30-068-00 (4) Full qty
3
RH Top Hinge
251-30-072-07 (1) Full qty
3
LH Top Hinge
251-30-073-07 (1) Full qty
3
Cover plate for door RH
251-30-174-08 (1) Full qty
3
Cover plate for door LH
251-30-175-02 (1) Full qty
4
Top Hinge
251-30-074-07 (2) Full qty
5
RH Bottom hinge
251-30-082-07 (1) Full qty
5
LH Bottom hinge
251-30-083-07 (1) Full qty
6
RH Bottom hinge
241-30-084-07 (1) Full qty
6
LH Bottom hinge
241-30-085-07 (1) Full qty
7
LH Door Lock
251-30-171-01 (1) Full qty
7
Door Latch Assembly DX (365GT)
New       Price on Enquiry
251-30-170-01 (1) Full qty
BW99196n
9
RH Door Lock Opening Rod
251-30-176-01 (1) Full qty
9
LH Door Lock Opening Rod
251-30-177-01 (1) Full qty
10
Door lock safety rod
251-30-194-01 (2) Full qty
11
Interior Door Lock Push Button
New       £ 5.45
242-30-198-00 (2) Full qty
NT10265n
12
RH Door Lock Catch Plate
251-30-210-01 (1) Full qty
12
LH Door Lock Catch Plate
251-30-211-01 (1) Full qty
13
Door Leading Edge Rubber
251-30-224-00 (2) Full qty
14
Lower Door Seal
251-30-226-00 (2) Full qty
15
RH Upper Qtr Light Hinge
251-30-272-02 (1) Full qty
15
LH Upper Qtr Light Hinge
251-30-273-02 (1) Full qty
16
RH Lower Qtr Light Hinge
251-30-274-02 (1) Full qty
16
LH Lower Qtr Light Hinge
251-30-275-02 (1) Full qty
17
End cap closing hole
144-10-288-00 (2) Full qty
18
Door Window Frame LH 365 GT 2+2
New       Price on Enquiry
251-30-295-08 (1) Full qty
ET25108n
18
Door Window Frame RH 365 GT 2+2
New       Price on Enquiry
251-30-294-08 (1) Full qty
ET25110n
19
RH Upper Front Door Wedge
251-30-296-04 (1) Full qty
19
LH Upper Front Door Wedge
251-30-297-04 (1) Full qty
20
RH Upper Rear Door Wedge
251-30-298-04 (1) Full qty
20
LH Upper Rear Door Wedge
251-30-299-05 (1) Full qty
21
Clip
251-30-324-01 (2) Full qty
22
RH Rotating Shaft
251-30-326-01 (1) Full qty
22
LH Rotating Shaft
251-30-327-01 (1) Full qty
23
RH Front Qtr Light Chrome Fram…
251-30-334-08 (1) Full qty
23
LH Front Qtr Light Chrome Fram…
251-30-335-08 (1) Full qty
24
Window Frame Front Channel
251-30-354-00 (2) Full qty
25
Window Frame Rear Channel
251-30-356-00 (2) Full qty
26
Window Frame Upper Channel
251-30-360-00 (2) Full qty
27
RH Qtr Light Motor
251-30-362-00 (1) Full qty
27
LH Qtr Light Motor
251-30-363-00 (1) Full qty
28
Quarter Light Rubber LH 365 GT 2+2
New       £ 324.50
251-30-373-00 (1) Full qty
GL00346n
28
Quarter Light Rubber RH 365 GT 2+2
New       £ 324.50
251-30-372-00 (1) Full qty
GL00347n
29
Clip
0-242-28-414-01 (1) Full qty
29
Clip
0-242-28-415-01 (1) Full qty
30
RH Rubber Block
241-30-430-00 (1) Full qty
31
RH Lower Crossrail
251-30-490-01 (1) Full qty
31
LH Lower Crossrail
251-30-491-01 (1) Full qty
32
RH Fork
251-30-500-01 (1) Full qty
32
LH Fork
251-30-501-01 (1) Full qty
33
Lever
251-30-502-01 (2) Full qty
34
Lever
251-30-504-01 (2) Full qty
35
Fork
251-30-506-01 (2) Full qty
36
Screws for tensioning adjustme…
0-922-1-035-1 (2) Full qty
37
Spring
251-30-508-01 (2) Full qty
38
RH Door Glass
251-30-510-00 (1) Full qty
38
LH Door Glass
251-30-511-00 (1) Full qty
39
RH Qtr Light Glass
251-30-528-00 (1) Full qty
39
LH Qtr Light Glass
251-30-529-00 (1) Full qty
40
RH Window Winder Motor Assy
251-30-540-00 (1) Full qty
40
Electric Window Motor Assy Wit…
246-30-542-00 (1) Full qty
41
Bush
144-30-552-01 (4) Full qty
42
Bracket / Support
251-30-554-01 (4) Full qty
43
Window winder sliding pulley
241-30-576-00 (4) Full qty
44
Pivot
251-30-578-01 (4) Full qty
45
Lower Stop Pad
802-30-584-00 (4) Full qty
46
RH Panel inside Door
251-30-592-00 (1) Full qty
46
LH Panel inside Door
251-30-593-00 (1) Full qty
47
Panel
251-30-660-08 (2) Full qty
48
RH Moulding
251-30-662-08 (1) Full qty
48
LH Moulding
251-30-663-08 (1) Full qty
49
RH Internal Upper Door Panel
251-30-666-08 (1) Full qty
49
LH Internal Upper Door Panel
251-30-667-08 (1) Full qty
50
RH Lower Door Moulding
251-30-674-08 (1) Full qty
50
LH Lower Door Moulding
251-30-675-08 (1) Full qty
51
RH Armrest Complete
251-30-700-00 (1) Full qty
51
LH Armrest Complete
251-30-701-00 (1) Full qty
52
RH Door Handle Chrome Finish
251-30-750-02 (1) Full qty
52
LH Door Handle Chrome Finish
251-30-751-02 (1) Full qty
52
RH External Door Handle
251-30-754-02 (1) Full qty
52
LH External Door Handle
251-30-755-02 (1) Full qty
53
Locking Barrel
251-30-790-02 (2) Full qty
54
Interior Door Handle 330/365 GT 2+2
New       £ 598.95
95403505 (1) Full qty
NT10191n
55
Inner Door Handle Surround
242-30-830-02 (1) Full qty
56
Door open indicator light
251-80-840-00 (2) Full qty
57
Handle
251-30-880-02 (2) Full qty
58
Window Winder Plug
251-30-884-00 (1) Full qty
59
RH Upper Inside Door Trim
251-30-898-00 (2) Full qty
59
LH Upper Inside Door Trim
251-30-899-00 (1) Full qty
60
RH Lower Moulding
251-30-912-08 (1) Full qty
60
LH Lower Moulding
251-30-913-08 (1) Full qty
61
Door Panel Seal RH
251-30-902-00 (1) Full qty
61
Door Panel Seal LH
251-30-901-01 (1) Full qty
62
Rubber retaining plate on door…
251-30-924-00 (1) Full qty
62
Rubber retaining plate on door…
251-30-925-00 (1) Full qty
63
Door Trim RH
251-30-922-08 (1) Full qty
63
Door Trim LH
251-30-923-08 (1) Full qty
64
RH Trim
251-30-938-04 (1) Full qty
64
LH Trim
251-30-939-04 (1) Full qty
65
RH Plate
251-30-944-04 (1) Full qty
65
LH Plate
251-30-945-04 (1) Full qty
66
Check Strap 365 GT 2+2
New       £ 203.50
691-30-962-01 (1) Full qty
ET02497n
67
Door Stop
242-30-978-01 (2) Full qty
68
Circular Small Wing Mirror
243-44-360-00 (2) Full qty
68
Circular Small Wing Mirror
243-44-360-00 (2) Full qty
69
TASSELL PARACOLPI P.CERN.SPORT…
691-34-084-00 (1) Full qty
70
RH Trim
251-30-422-02 (2) Full qty
70
LH Trim
251-30-423-02 (1) Full qty
71
RH moulding
251-30-270-04 (1) Full qty
71
LH moulding
251-30-271-04 (1) Full qty
72
RH Window Moulding
251-30-284-08 (1) Full qty
72
LH Window Moulding
251-30-285-08 (1) Full qty
73
LEVER
251-30-752-02 (1) Full qty
74
Sleeve For Door Lock Mechanism…
251-30-774-00 (2) Full qty
75
RH Internal Panel Complete
251-30-592-10 (2) Full qty
75
LH Internal Panel Complete
251-30-593-10 (1) Full qty
75
RH Internal Panel Complete
251-30-592-19 (1) Full qty
75
LH Internal Panel Complete
251-30-593-19 (1) Full qty
76
RH Window Winder Turret
251-30-540-09 (1) Full qty
76
LH Window Winder Turret
251-30-541-09 (1) Full qty
77
RH Door
251-30-004-17 (1) Full qty
77
LH Door
251-30-005-17 (1) Full qty
78
EMER WINDOW WINDER HANDLE 365G…
410-30-880-06 (1) Full qty
79
Felt seal for Door Pannel
251-30-920-10 (2) Full qty
80
Rubber seal for Door Pannel
251-30-921-10 (2) Full qty
81
Metal Trim for Door Pannel
251-30-924-10 (2) Full qty
