F1 Clutch Hydraulic Control -Valid For F1-

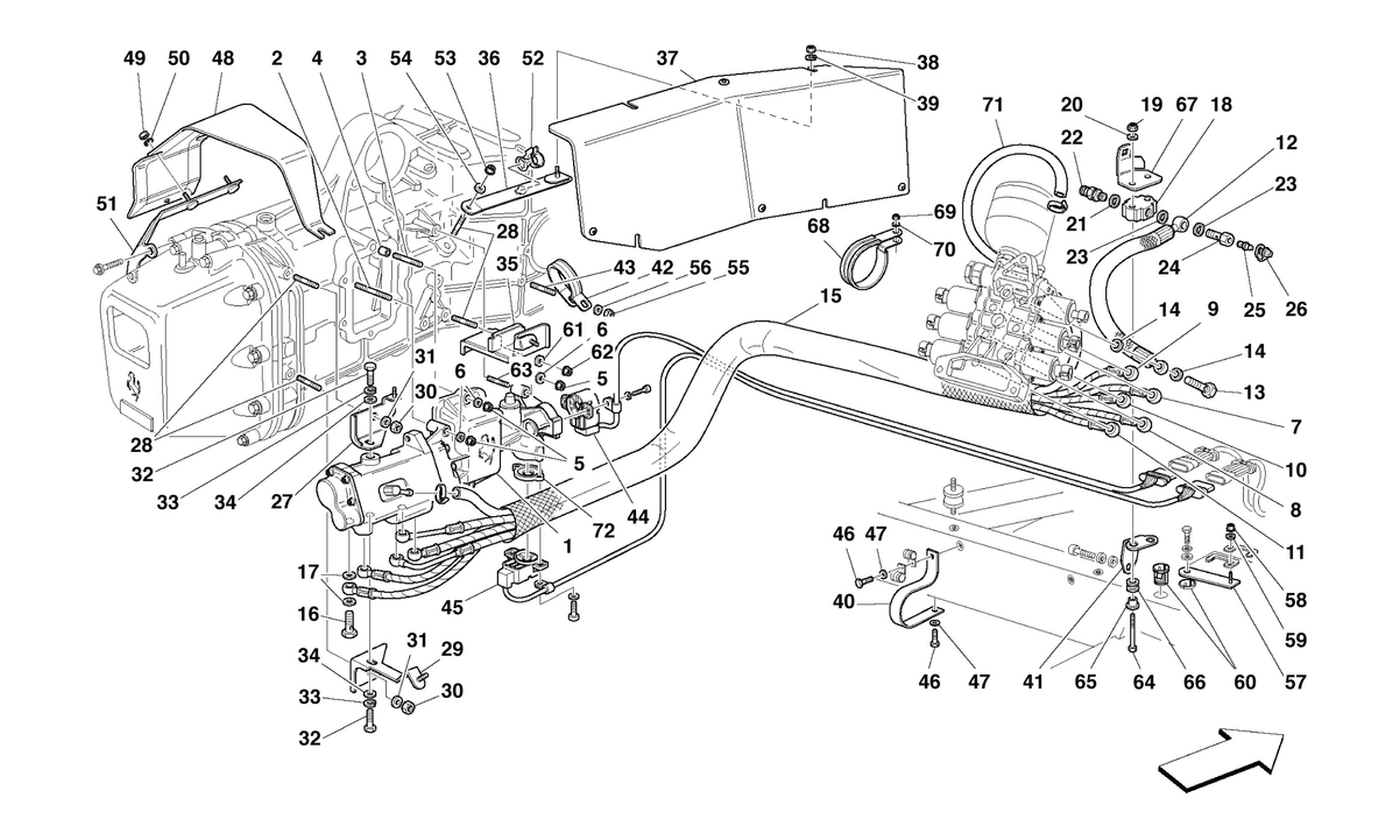

Schematic: F1 Clutch Hydraulic Control -Valid For F1-
Schematic: F1 Clutch Hydraulic Control -Valid For F1-
Loc
Part
Cond       Price
1
COMPLETE HYDRAULIC ACTUATOR
181160 (1) Full qty
2
STUD
11501024 (4) Full qty
3
STUD
11500724 (2) Full qty
4
Dowel
103038 (2) Full qty
5
Nut
132877 (8) Full qty
6
Washer
12601279 (8) Full qty
7
PIPE (EV1)
179340 (1) Full qty
8
PIPE (EV2)
179342 (1) Full qty
9
PIPE (EV3)
179343 (1) Full qty
10
PIPE (EV4)
179344 (1) Full qty
11
PIPE (EV5)
179345 (1) Full qty
12
PIPE FROM PUMP TO BLOCK
179348 (1) Full qty
13
UNION
171454 (6) Full qty
14
Gasket
10261060 (12) Full qty
15
PROTECTIVE SHEATH
179346 (1) Full qty
16
UNION
171454 (5) Full qty
17
Gasket
10261060 (10) Full qty
18
BLOCK
175667 (1) Full qty
19
NUT
15896214 (2) Full qty
20
Washer
12601279 (2) Full qty
21
WASHER
171755 (1) Full qty
22
FEMALE CoupeING
70001184 (1) Full qty
23
Gasket
10261060 (2) Full qty
24
UNION
171630 (1) Full qty
25
Bleed Screw
152954 (1) Full qty
26
PROTECTION BOOT
152955 (1) Full qty
27
UPPER ACTUATOR SUPPORT BRACKET…
174257 (1) Full qty
28
STUD
13516424 (2) Full qty
29
LOWER ACTUATOR SUPPORT BRACKET…
174260 (1) Full qty
29
ACTUATOR SUPPORT LOWER BRACKET…
195549 (1) Full qty
30
NUT
16100814 (2) Full qty
31
Wavy Lock Washer 8mm
127496 (2) Full qty
32
Screw
16043124 (2) Full qty
33
Wavy Lock Washer 8mm
127496 (2) Full qty
34
Washer
10519624 (2) Full qty
35
PIPES SUPPORTING BRACKET
180807 (1) Full qty
36
SHIELD SUPPORTING BRACKET
181614 (1) Full qty
37
SHIELD FOR ACTUATOR PROTECTI…
177384 (1) Full qty
38
NUT
160472 (4) Full qty
39
WASHER
12637824 (4) Full qty
40
PIPES SUPPORTING BRACKET
180782 (2) Full qty
41
BLOCK MOUNTING BRACKET
186685 (1) Full qty
42
BRACKET WITH SHEATH
124034 (1) Full qty
43
STUD
13540724 (1) Full qty
44
Differential Belleville Washer 512BB/BBi, 512TR/M
New       £ 984.50
181325 (1) Full qty
GB11632n
45
Differential Belleville Washer 512BB/BBi, 512TR/M
New       £ 984.50
181325 (1) Full qty
GB11632n
46
SCREW -M6 X 14-
10902124 (4) Full qty
47
WASHER
14496424 (4) Full qty
48
SENSOR PROTECTION SHIELD
180744 (1) Full qty
49
NUT
160472 (2) Full qty
50
WASHER
12637824 (2) Full qty
51
SHIELD MOUNTING BRACKET
180745 (1) Full qty
52
FIXING CLIP
164565 (1) Full qty
53
NUT
177778 (1) Full qty
54
WASHER
12638524 (2) Full qty
55
Nut
102741 (1) Full qty
56
WASHER
12643724 (1) Full qty
57
BRACKET
181344 (1) Full qty
58
NUT
169180 (1) Full qty
59
WASHER
14496324 (1) Full qty
60
NUT WITH CAGE
65891200 (4) Full qty
61
WASHER
12638524 (2) Full qty
62
NUT
177778 (2) Full qty
63
STUD
11500624 (2) Full qty
64
SCREW
10903224 (2) Full qty
65
Spacer
New       Price on Enquiry
149707 (2) Full qty
CS11902n
66
GROMMET
177576 (2) Full qty
67
R.H. BRACKET
66213000 (1) Full qty
68
BRACKET WITH SHEATH
124034 (1) Full qty
69
Nut
102741 (1) Full qty
70
WASHER
12639724 (1) Full qty
71
OIL RECYCLE PIPE
180965 (1) Full qty
72
POTENTIOMETER SUPPORT
192911 (1) Full qty
