Capote Movement - Upper Part

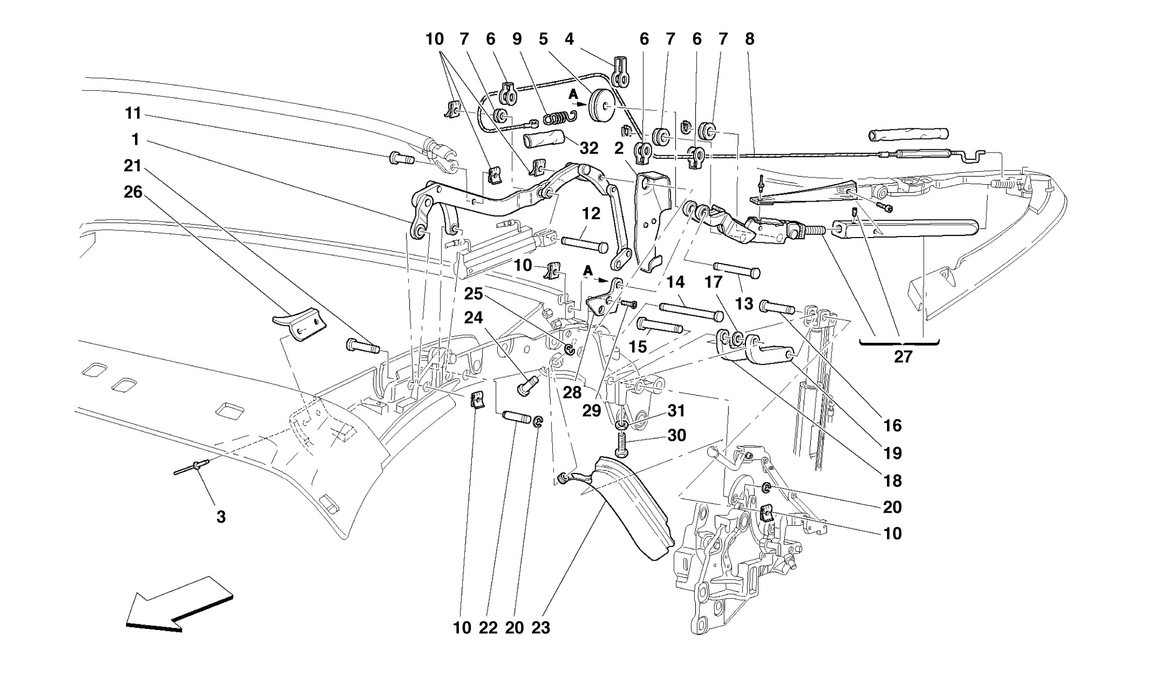

Schematic: Capote Movement - Upper Part
Loc
Part
Cond       Price
1
LH. SWING ARM
66458200 (1) Full qty
1
RH. SWING ARM
66458300 (1) Full qty
2
RH. SHIELD
66693900 (1) Full qty
2
LH. SHIELD
66694000 (1) Full qty
3
RIVET
66693000 (4) Full qty
4
PULLEY BRACKET
66688100 (2) Full qty
5
PULLEY
66688000 (2) Full qty
6
PULLEY BRACKET
66687900 (6) Full qty
7
PULLEY
66687800 (6) Full qty
8
STRETCH CABLE
66375700 (2) Full qty
8
Stretch Cord
67047300 (2) Full qty
9
SPRING
66688200 (2) Full qty
10
CLIP
66682200 (12) Full qty
11
PIN
66682100 (2) Full qty
12
PIN
66682800 (2) Full qty
13
PIN
66682700 (2) Full qty
14
PIN
66683200 (2) Full qty
15
PIN
66683300 (2) Full qty
16
PIN
66682900 (2) Full qty
17
WASHER
66694100 (2) Full qty
18
RH. BRACKET
66683100 (2) Full qty
19
LH. BRACKET
66683000 (2) Full qty
20
SEEGER
66682400 (4) Full qty
21
PIN
66682000 (2) Full qty
22
PIN
66682300 (2) Full qty
23
LH. PILLAR
66460200 (1) Full qty
23
RH. PILLAR
66460300 (1) Full qty
24
PIN
66682500 (2) Full qty
25
SEEGER
66682600 (2) Full qty
26
LH BRACKET
66681900 (1) Full qty
26
RH BRACKET
66681800 (1) Full qty
27
L.H. LONGITUDINAL TIE ROD
66458000 (1) Full qty
27
COMPLETE CABLE LH. TRIPLE JOIN…
67047100 (1) Full qty
27
R.H. LONGITUDINAL TIE ROD
66458100 (1) Full qty
27
COMPLETE CABLE RH. TRIPLE JOIN…
67047200 (1) Full qty
28
TRIPLE JOINT COLUMN
67048800 (2) Full qty
29
SCREW
67048900 (4) Full qty
30
SCREW
67048500 (2) Full qty
31
NUT
67048600 (2) Full qty
32
SHEATH
67048700 (2) Full qty
