Rear Suspension - Shock Absorber And Brake Disc

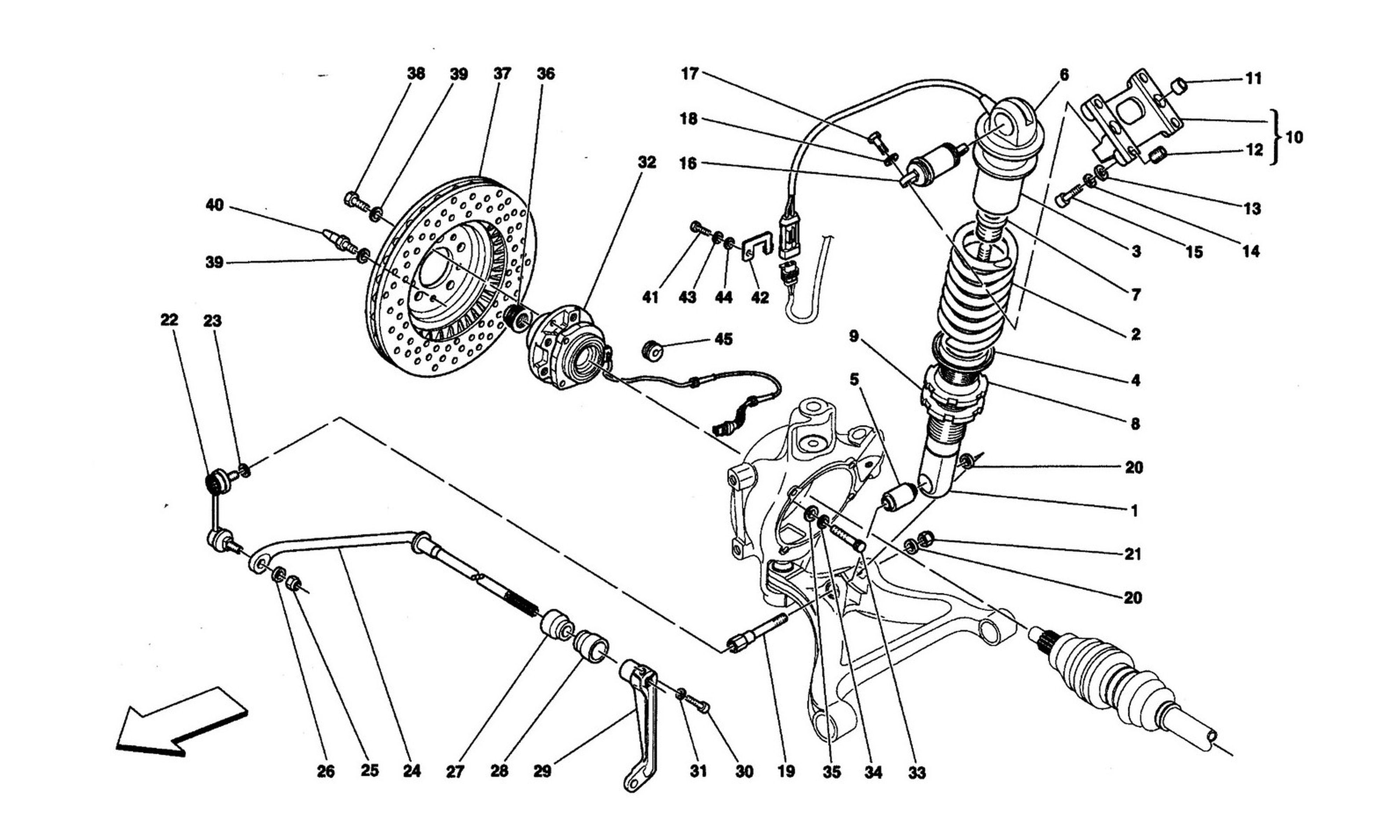

Schematic: Rear Suspension - Shock Absorber And Brake Disc
Loc
Part
Cond       Price
1
New       Price on Enquiry
174724 (2) Full qty
RS00316n
2
SPRING
182408 (2) Full qty
2
SPRING
190677 (2) Full qty
2
SPRING
173851 (2) Full qty
3
UPPER SPACER
177688 (2) Full qty
4
New       £ 7.95
169684 (2) Full qty
FS00103n
5
New       Price on Enquiry
157630 (2) Full qty
RS00314n
6
UPPER SPRING RETENTION CAP
174727 (2) Full qty
7
SHOCK ABSORBER PAD
174728 (2) Full qty
8
SPACER
174725 (2) Full qty
9
RING NUT
174726 (2) Full qty
10
SHOCK ABSORBER CONNECTION SUPP…
176625 (2) Full qty
11
Dowel
100013 (4) Full qty
12
Heli-coil
13526170 (4) Full qty
13
WASHER
14496524 (8) Full qty
14
Wavy Lock Washer 8mm
127496 (8) Full qty
15
SCREW
14306774 (8) Full qty
16
New       Price on Enquiry
212948 (2) Full qty
RS00312n
17
SCREW
11306934 (4) Full qty
18
WASHER
160092 (4) Full qty
19
SCREW
204974 (2) Full qty
19
SCREW
177664 (2) Full qty
20
WASHER
129225 (4) Full qty
21
New       £ 3.56
148020 (2) Full qty
FS00201n
22
New       £ 69.73
161109 (1) Full qty
RS10389n
22
New       £ 43.80
161110 (1) Full qty
RS10416n
23
WASHER
160092 (2) Full qty
24
REAR ANTI-ROLL BAR
182432 (1) Full qty
25
NUT
12164714 (2) Full qty
26
New       £ 0.12
12601474 (2) Full qty
CC11464n
26
New       Price on Enquiry
12601474 (2) Full qty
CC11574n
27
STABILISER BAR BUSH
170716 (1) Full qty
28
STABILISER BAR BUSH
170717 (1) Full qty
29
LH. DIAGONAL BRACE
175861 (1) Full qty
30
SCREW
170950 (1) Full qty
31
New       £ 0.12
12601474 (1) Full qty
CC11464n
31
New       Price on Enquiry
12601474 (1) Full qty
CC11574n
32
HUB COMPLETE BEARING
179070 (2) Full qty
33
SCREW
180591 (8) Full qty
34
WASHER
160092 (8) Full qty
35
WASHER
10732414 (8) Full qty
36
NUT
167259 (2) Full qty
36
New       Price on Enquiry
209184 (2) Full qty
BS00508n
37
Brake Disc Front & Rear 360, 4…
182606 (2) Full qty
38
SCREW
16043424 (2) Full qty
39
Wavy Lock Washer 8mm
127496 (4) Full qty
40
New       £ 4.68
104370 (2) Full qty
BS00951n
41
Screw
10902024 (2) Full qty
42
CLIP
162606 (2) Full qty
43
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
44
WASHER
12643724 (2) Full qty
45
RUBBER RING
10460287 (2) Full qty
