Lay Shaft Gears

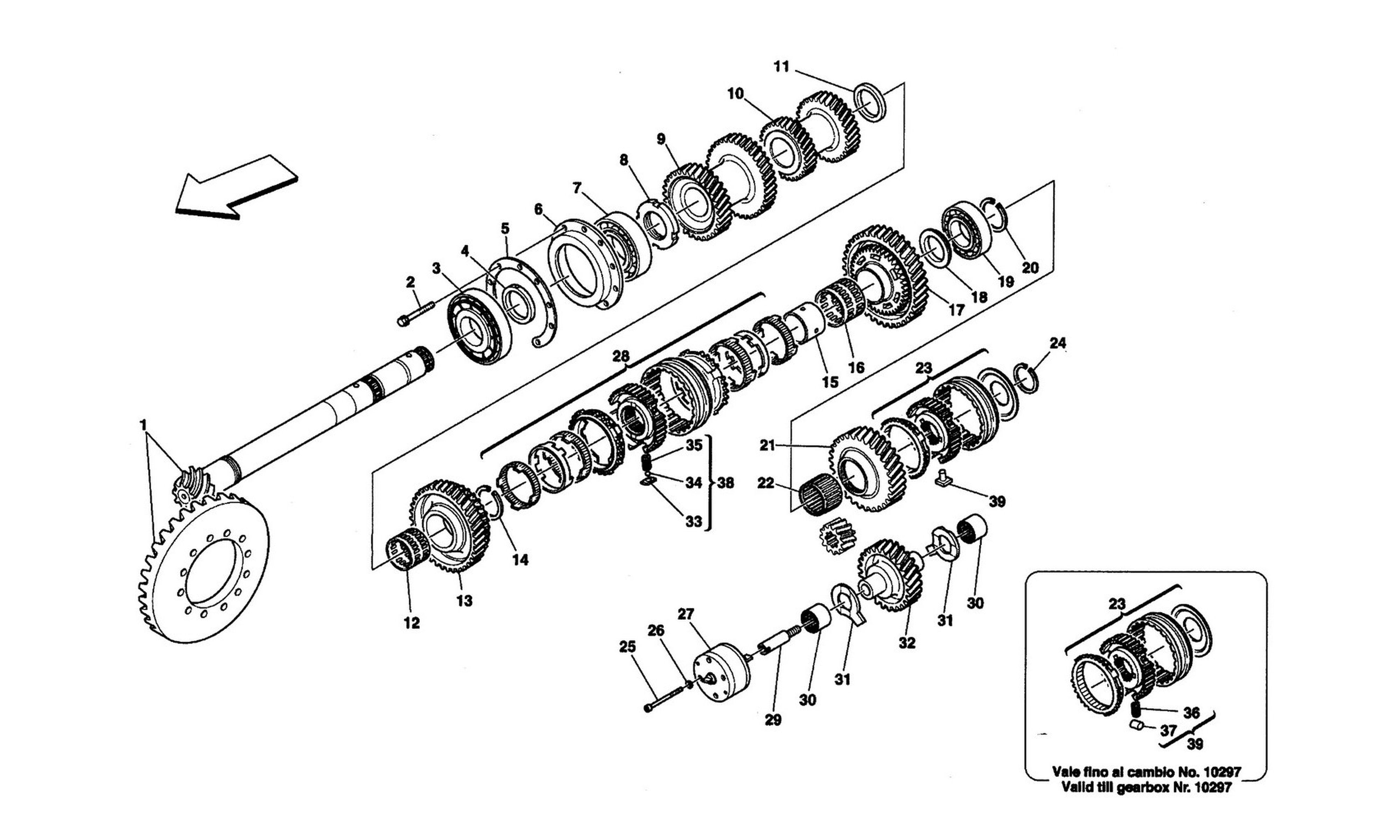

Schematic: Lay Shaft Gears
Loc
Part
Cond       Price
1
COMPLETE BEVEL SET
185023 (1) Full qty
2
SCREW
16287731 (9) Full qty
2
SCREW
16287730 (9) Full qty
3
ROLLER BEARING
185022 (1) Full qty
4
RING ADJUSTER
185046 (1) Full qty
4
RING ADJUSTER
185045 (1) Full qty
4
RING ADJUSTER
185047 (1) Full qty
5
RING ADJUSTER
185044 (1) Full qty
5
RING ADJUSTER
185043 (1) Full qty
5
REGISTER RING
185042 (1) Full qty
6
BEARING MOUNTING
185020 (1) Full qty
7
ROLLER BEARING
185021 (1) Full qty
8
RING NUT
185019 (1) Full qty
8
RING NUT
196667 (1) Full qty
9
3RD AND 4TH DRIVEN GEAR
185018 (1) Full qty
10
5th AND 6th DRIVEN GEAR
185017 (1) Full qty
11
RING
183974 (1) Full qty
11
RING
185039 (1) Full qty
11
RING
185038 (1) Full qty
12
ROLLER BEARING CAGE
184014 (1) Full qty
13
2nd SPEED GEAR
183946 (1) Full qty
14
SNAP RING
183976 (1) Full qty
14
SNAP RING
185037 (1) Full qty
14
SNAP RING
185036 (1) Full qty
15
BUSHING
183971 (1) Full qty
16
ROLLER BEARING CAGE
184016 (1) Full qty
17
1st SPEED GEAR
183945 (1) Full qty
18
RING Thickness mm. 4,60
185041 (1) Full qty
18
RING Thickness mm. 4,85
185040 (1) Full qty
18
CENTRE BEARING
183972 (1) Full qty
19
ROLLER BEARING
184020 (1) Full qty
20
SNAP RING
184042 (1) Full qty
21
REVERSE GEAR
193438 (1) Full qty
21
REVERSE GEAR
185168 (1) Full qty
22
ROLLER BEARING CAGE
184018 (1) Full qty
23
REVERSE SPEED SYNCHRONISER
193439 (1) Full qty
23
REVERSE GEAR COMPLETE SYNCHRON…
185167 (1) Full qty
24
SNAP RING
184041 (1) Full qty
25
SCREW
14303624 (4) Full qty
26
WASHER
10571379 (4) Full qty
27
BEARBOX OIL PUMP
185048 (1) Full qty
28
COMPLETE 1st AND 2nd SPEED SYN…
185164 (1) Full qty
29
PUMP DRIVE SHAFT
185050 (1) Full qty
30
DRAWN CUP NEEDLE BEARING
184017 (2) Full qty
31
RING
183975 (2) Full qty
32
IDLE GEAR FOR REVERSE
183969 (1) Full qty
33
SMALL BLOCK
184991 (3) Full qty
34
BALL
184997 (3) Full qty
35
SYNCHRO BLOCK/BALL/SPRING REPL…
188320 (3) Full qty
36
SPRING
185015 (3) Full qty
37
ROLL
185016 (3) Full qty
38
SYNCHRO BLOCK/BALL/SPRING REPL…
188320 (1) Full qty
39
SPRING/ROLL/SYNCHRO REVERSE GE…
188321 (1) Full qty
39
SYNCHROREVERSE/BLOCKS REPLACEM…
193440 (1) Full qty
