Pedals -Valid For Rhd

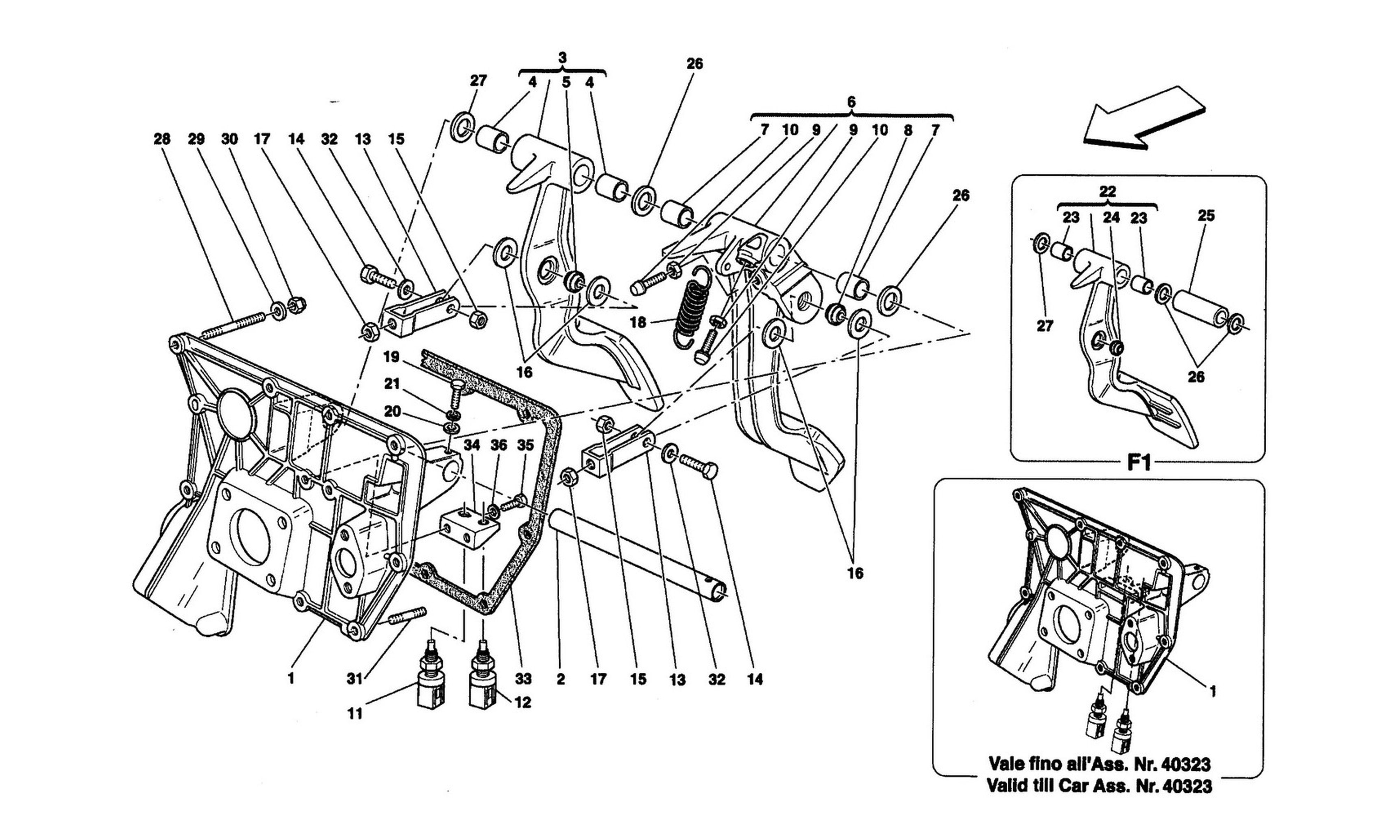

Schematic: Pedals -Valid For Rhd
Loc
Part
Cond       Price
1
PEDALS SUPPORT
184388 (1) Full qty
1
PEDALS SUPPORT
176168 (1) Full qty
2
PEDALS MOUNTING PIN
177120 (1) Full qty
3
COMPLETE BRAKE PEDAL
177118 (1) Full qty
4
Bush
103163 (2) Full qty
5
BALL-JOINT
176475 (1) Full qty
6
COMPLETE CLUTCH PEDAL
177119 (1) Full qty
7
Bush
103163 (2) Full qty
8
BALL-JOINT
176475 (1) Full qty
9
NUT
16102314 (2) Full qty
10
Clutch adjustment cap
144011 (2) Full qty
10
PEDAL ADJUSTEMENT PIN
187014 (2) Full qty
11
Brake Light Switch
133555 (1) Full qty
11
New       Price on Enquiry
133555 (1) Full qty
ET02508n
12
Brake Light Switch
133555 (1) Full qty
12
New       Price on Enquiry
133555 (1) Full qty
ET02508n
13
FORK
176471 (2) Full qty
14
Screw
16043724 (2) Full qty
15
NUT
147985 (2) Full qty
16
PLASTIC WASHER
176522 (4) Full qty
17
NUT
16102314 (2) Full qty
18
Clutch spring short Daytona
101305 (1) Full qty
19
SCREW -M6 X 20- -Fastening bra…
10902424 (1) Full qty
20
WASHER
14488624 (1) Full qty
20
Washer 1.6mm 6.4x11.95x1.6
10519424 (1) Full qty
21
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
22
COMPLETE BRAKE PEDAL
178511 (1) Full qty
23
Bush
103163 (2) Full qty
24
BALL-JOINT
176475 (1) Full qty
25
SHIM
178496 (1) Full qty
26
Shim, 1,4 mm. thick
113836 (2) Full qty
27
Shim, 1,3 mm. thick
113835 (1) Full qty
27
Shim, 1,2 mm. thick
113834 (1) Full qty
27
Shim, 1,1 mm. thick
113833 (1) Full qty
27
Shim, 1,4 mm. thick
113836 (1) Full qty
27
Shim
106083 (1) Full qty
28
STUD BOLT
13517524 (2) Full qty
29
WASHER
12638524 (11) Full qty
30
NUT
104030 (11) Full qty
31
STUD
13516924 (9) Full qty
32
Do Not Use - See GE07667n
12601374 (2) Full qty
32
New       £ 0.12
12601374 (2) Full qty
CH11905n
33
PEDAL BOARD MOUNTING GASKET
177131 (1) Full qty
34
SMALL PLATE
186401 (1) Full qty
35
SCREW
16043224 (2) Full qty
36
Wavy Lock Washer 8mm
127496 (2) Full qty
