Pedals -Not For Rhd

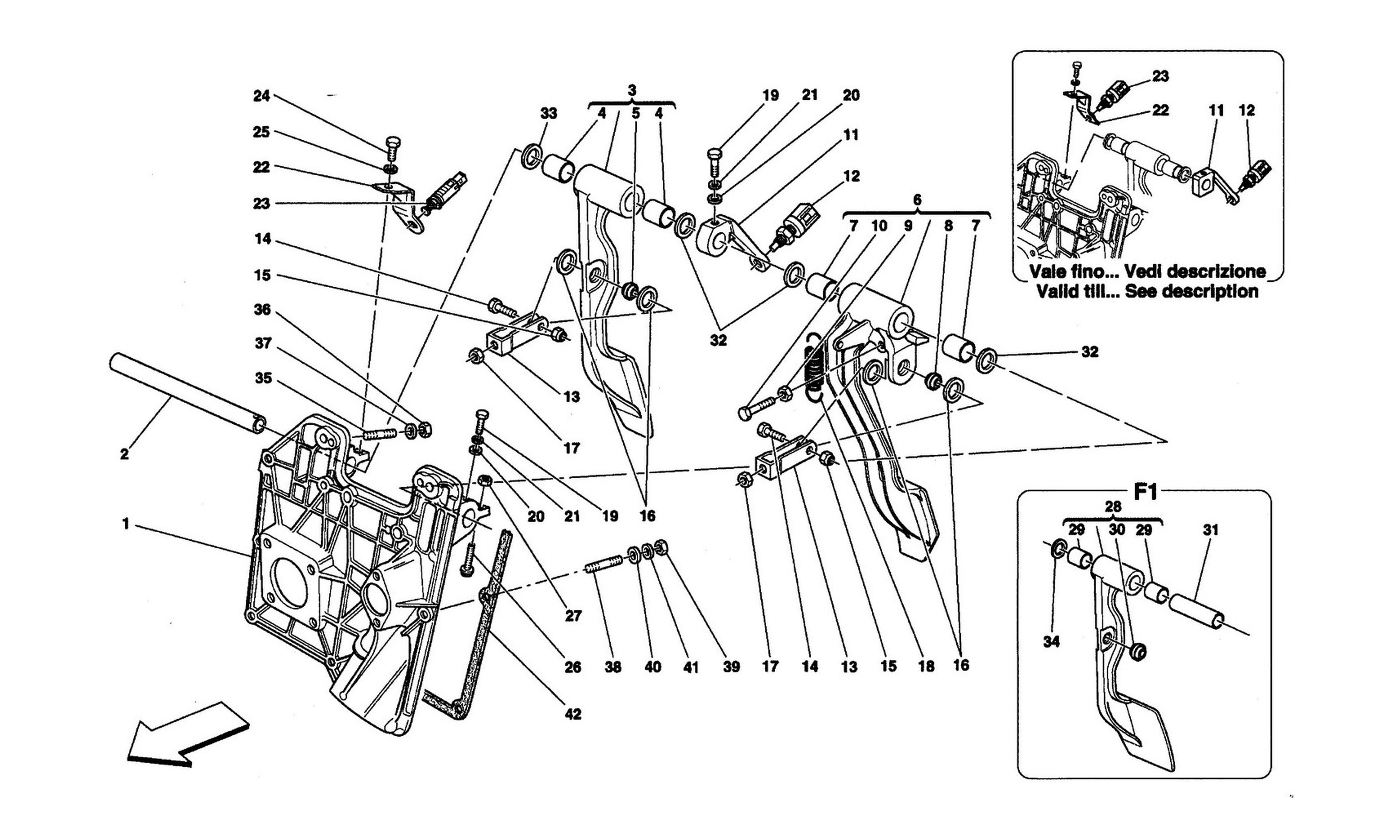

Schematic: Pedals -Not For Rhd
Loc
Part
Cond       Price
1
PEDAL BOARD MOUNTING
176464 (1) Full qty
2
PEDALS MOUNTING PIN
176466 (1) Full qty
3
COMPLETE BRAKE PEDAL
176473 (1) Full qty
3
COMPLETE BRAKE PEDAL
180558 (1) Full qty
4
Bush
103163 (2) Full qty
5
BALL-JOINT
176475 (1) Full qty
6
COMPLETE CLUTCH PEDAL
176519 (1) Full qty
6
COMPLETE CLUTCH PEDAL
180559 (1) Full qty
7
Bush
103163 (2) Full qty
8
BALL-JOINT
176475 (1) Full qty
9
NUT
16102314 (1) Full qty
10
Clutch adjustment cap
144011 (1) Full qty
10
PEDAL ADJUSTEMENT PIN
187014 (1) Full qty
11
CENTRAL BRACKET
180516 (1) Full qty
11
CENTRAL BRACKET
176521 (1) Full qty
11
CENTRAL BRACKET
179785 (1) Full qty
12
Brake Light Switch
133555 (1) Full qty
12
New       Price on Enquiry
133555 (1) Full qty
ET02508n
13
FORK
176471 (2) Full qty
14
Screw
16043724 (2) Full qty
15
NUT
147985 (2) Full qty
16
PLASTIC WASHER
176522 (4) Full qty
17
NUT
16102314 (2) Full qty
18
Clutch spring short Daytona
101305 (1) Full qty
19
SCREW -M6 X 20- -Fastening bra…
10902424 (1) Full qty
20
WASHER
14488624 (2) Full qty
20
Washer 1.6mm 6.4x11.95x1.6
10519424 (2) Full qty
21
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
22
SWITCH SUPPORT
176472 (1) Full qty
22
SWITCH SUPPORT
183818 (1) Full qty
23
PUSH-BUTTON SWITCH
183433 (1) Full qty
23
Brake Light Switch
133555 (1) Full qty
23
New       Price on Enquiry
133555 (1) Full qty
ET02508n
24
SCREW
16043224 (1) Full qty
25
Wavy Lock Washer 8mm
127496 (1) Full qty
26
Clutch adjustment cap
144011 (1) Full qty
26
PEDAL ADJUSTEMENT PIN
187014 (1) Full qty
27
NUT
16102314 (1) Full qty
28
COMPLETE BRAKE PEDAL
176910 (1) Full qty
28
COMPLETE BRAKE PEDAL
180560 (1) Full qty
29
Bush
103163 (2) Full qty
30
BALL-JOINT
176475 (1) Full qty
31
SHIM
176918 (1) Full qty
32
Shim, 1,4 mm. thick
113836 (3) Full qty
33
Shim, 1,2 mm. thick
113834 (1) Full qty
33
Shim, 1,4 mm. thick
113836 (1) Full qty
33
Shim
106083 (1) Full qty
33
Shim, 1,1 mm. thick
113833 (1) Full qty
33
Shim, 1,3 mm. thick
113835 (1) Full qty
34
Shim
106083 (1) Full qty
35
STUD
13516924 (6) Full qty
36
NUT
104030 (6) Full qty
37
WASHER
12638524 (6) Full qty
38
STUD BOLT
13517024 (2) Full qty
39
NUT
16102377 (2) Full qty
40
Washer
13550321 (2) Full qty
41
Do Not Use - See GE07667n
12601374 (2) Full qty
41
New       £ 0.12
12601374 (2) Full qty
CH11905n
42
PEDAL BOARD MOUNTING GASKET
176524 (1) Full qty
