Fuel Tanks - Fixing And Protection

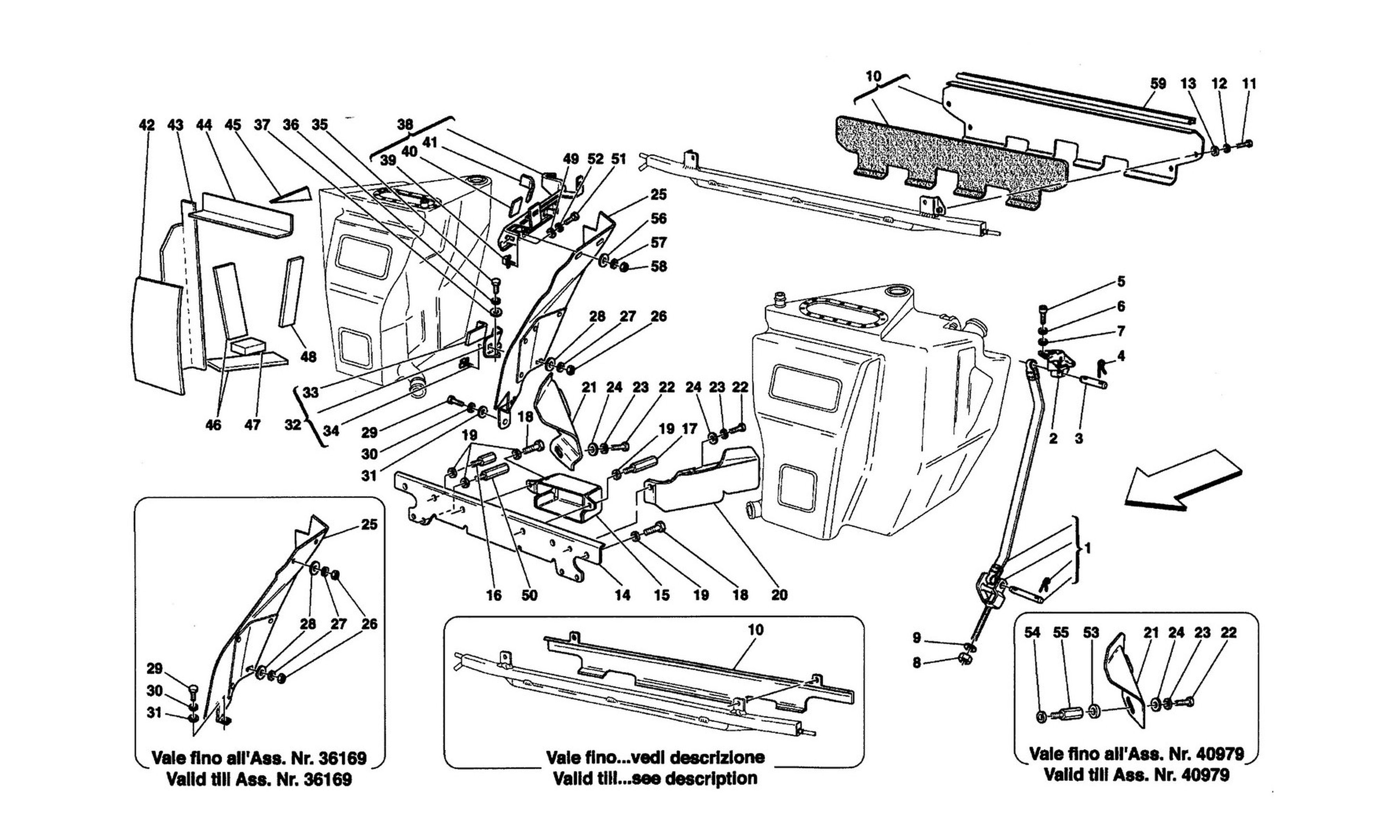

Schematic: Fuel Tanks - Fixing And Protection
Loc
Part
Cond       Price
1
FUEL TANK FASTENER
174098 (2) Full qty
1
TANK FASTENING STRAP
180348 (2) Full qty
2
LH. BRACKET
175768 (1) Full qty
2
RH. BRACKET
174445 (1) Full qty
3
Pin
103447 (2) Full qty
4
Split pin
10796440 (4) Full qty
5
SCREW
14305324 (6) Full qty
6
WASHER
12605371 (6) Full qty
7
Washer 1.6mm 6.4x11.95x1.6
10519424 (6) Full qty
8
NUT
104030 (2) Full qty
9
WASHER
14496524 (2) Full qty
10
DISAREATOR ANTI-HEAT SHIELD
179526 (1) Full qty
10
DISAREATOR ANTI-HEAT SHIELD
178636 (1) Full qty
11
SCREW
10977524 (4) Full qty
12
Washer
127493 (4) Full qty
13
New       Price on Enquiry
12601174 (4) Full qty
ST00358n
14
PROTECTION PLATE
176993 (1) Full qty
15
CHASSIS
186045 (1) Full qty
16
STUD BOLT -Not for GD-
178772 (1) Full qty
17
STUD
179242 (1) Full qty
18
Screw
10902324 (7) Full qty
19
WASHER
13550221 (10) Full qty
20
LOWER L.H. ANTI HEAT SHIELD
180233 (1) Full qty
21
LOWER R.H. ANTI-HEAT SHIELD
180234 (1) Full qty
21
LOWER R.H. ANTI HEAT SHIELD
188471 (1) Full qty
21
LOWER R.H. ANTI-HEAT SHIELD
182238 (1) Full qty
22
SCREW -M6 X 20- -Fastening bra…
10902424 (4) Full qty
23
WASHER
12605371 (4) Full qty
24
WASHER
14499324 (4) Full qty
25
R.H. ANTI-HEAT SHIELD
180232 (1) Full qty
25
R.H. ANTI-HEAT SHIELD
184301 (1) Full qty
25
L.H. ANTI-HEAT SHIELD
184300 (1) Full qty
25
L.H. ANTI-HEAT SHIELD
180231 (1) Full qty
26
NUT
15896214 (4) Full qty
27
WASHER
12605371 (4) Full qty
28
New       Price on Enquiry
12644424 (4) Full qty
CS12006n
28
Used       Price on Enquiry
12644424 (4) Full qty
CS12006u
29
SCREW -M6 X 20- -Fastening bra…
10902424 (4) Full qty
30
WASHER
12605371 (4) Full qty
31
WASHER
14499324 (4) Full qty
32
LOWER LH. TANK FASTENER BRACKE…
177774 (1) Full qty
32
LOWER RH. TANK FASTENER BRACKE…
177775 (1) Full qty
33
LH. RUBBER SPACER
177772 (1) Full qty
33
RH. RUBBER SPACER
177773 (1) Full qty
34
Screw
14664790 (2) Full qty
35
SCREW -M6 X 20- -Fastening bra…
10902424 (4) Full qty
36
WASHER
12605371 (4) Full qty
37
WASHER
12647624 (4) Full qty
38
RH. TANK FASTENER BRACKET
177770 (1) Full qty
38
LH. TANK FASTENER BRACKET
177771 (1) Full qty
39
Screw
14664790 (4) Full qty
40
RUBBER SHIM
177769 (4) Full qty
41
RUBBER SHIM
177768 (2) Full qty
42
RUBBER SHIM
177752 (2) Full qty
43
LH. RUBBER SPACER
181192 (1) Full qty
43
RH. RUBBER SPACER
181191 (1) Full qty
44
RUBBER THICKNESS
181377 (2) Full qty
45
LH. RUBBER SPACER.
177763 (1) Full qty
45
RH. RUBBER SPACER.
177753 (1) Full qty
46
RUBBER THICKNESS FOR PIPE
177749 (4) Full qty
47
RUBBER SHIM
177748 (2) Full qty
48
PLUG
159147 (2) Full qty
49
WASHER
12647624 (2) Full qty
50
STUD BOLT
182363 (1) Full qty
51
SCREW -M6 X 20- -Fastening bra…
10902424 (2) Full qty
52
WASHER
12605371 (2) Full qty
53
WASHER
12643724 (1) Full qty
54
New       Price on Enquiry
12644424 (1) Full qty
CS12006n
54
Used       Price on Enquiry
12644424 (1) Full qty
CS12006u
55
STUD BOLT -Not for GD-
178772 (1) Full qty
56
Washer 1.6mm 6.4x11.95x1.6
10519424 (2) Full qty
57
New       Price on Enquiry
12644424 (2) Full qty
CS12006n
57
Used       Price on Enquiry
12644424 (2) Full qty
CS12006u
58
Nut
102741 (2) Full qty
59
RUBBER GASKET
190115 (1) Full qty
