Frame - Rear Elements Sub-Groups

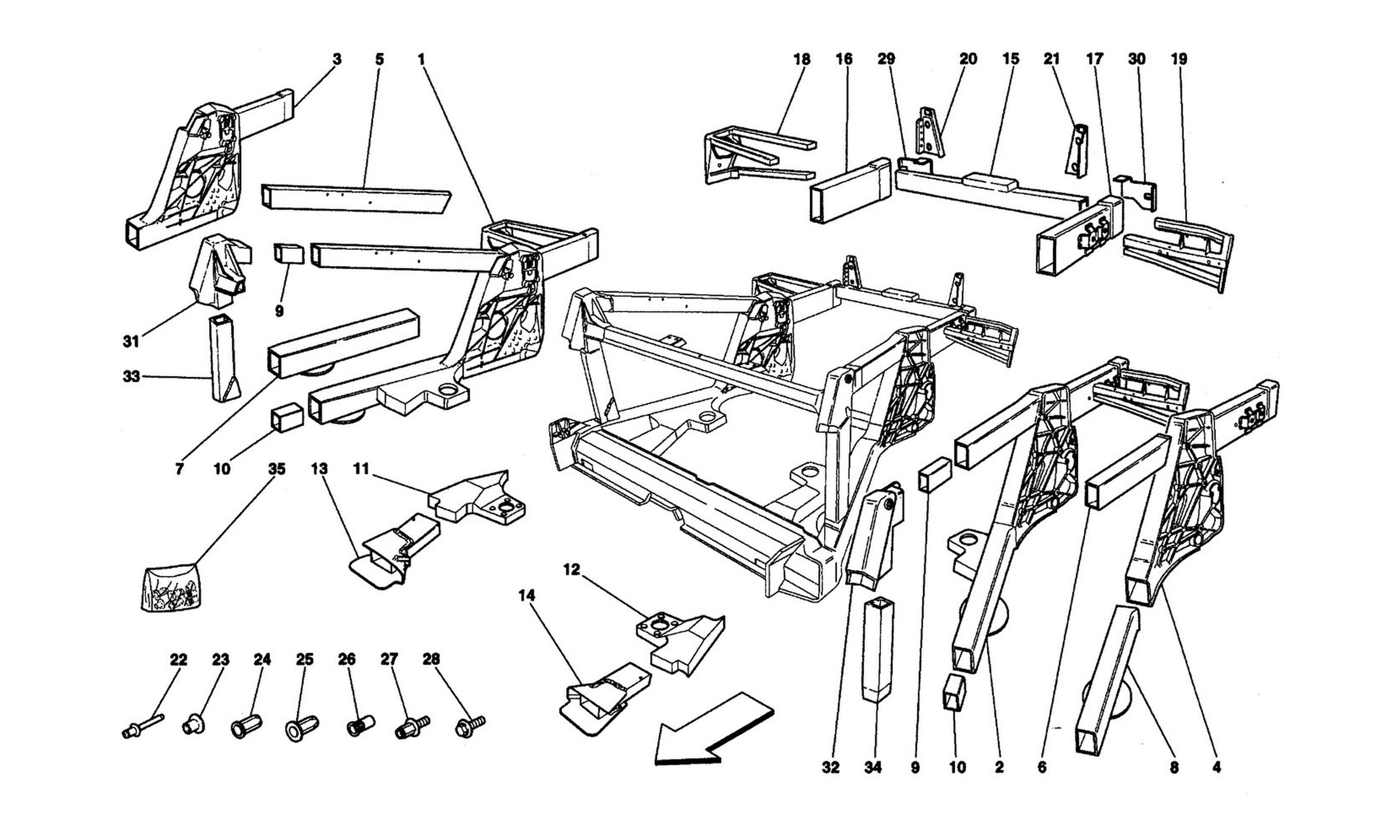

Schematic: Frame - Rear Elements Sub-Groups
Loc
Part
Cond       Price
1
COMPLETE R.H. SIDE FRAME
66214900 (1) Full qty
1
COMPLETE R.H. SIDE FRAME
66453300 (1) Full qty
2
COMPLETE L.H. SIDE FRAME
66453400 (1) Full qty
2
COMPLETE L.H. SIDE FRAME
66290100 (1) Full qty
3
R.H. REAR LATERAL CASTING
66453500 (1) Full qty
3
R.H. REAR LATERAL CASTING
65941800 (1) Full qty
4
L.H. REAR LATERAL CASTING
65941900 (1) Full qty
4
L.H. REAR LATERAL CASTING
66453600 (1) Full qty
5
R.H. UPPER FRAME
166227 (1) Full qty
6
L.H. UPPER FRAME
166127 (1) Full qty
7
R.H. LOWER FRAME
166235 (1) Full qty
7
R.H. LOWER FRAME
66465000 (1) Full qty
8
L.H. LOWER FRAME
66465100 (1) Full qty
8
L.H. LOWER FRAME
166135 (1) Full qty
9
UPPER INNER CORE
181980 (0) Full qty
10
LOWER INNER CORE
181979 (0) Full qty
11
R.H. BRACKET ENGINE SUPPORT
166237 (1) Full qty
11
R.H. BRACKET ENGINE SUPPORT
195208 (1) Full qty
11
R.H. BRACKET ENGINE SUPPORT
6187237 (1) Full qty
12
L.H. BRACKET ENGINE SUPPORT
6187137 (1) Full qty
12
L.H. BRACKET ENGINE SUPPORT
195207 (1) Full qty
12
L.H. BRACKET ENGINE SUPPORT
166137 (1) Full qty
13
R.H. SUPPORT FOR BRACKET
65942200 (1) Full qty
14
L.H. SUPPORT FOR BRACKET
65942300 (1) Full qty
15
REAR BUMPER CROSS MEMBER
183978 (1) Full qty
16
R.H. REAR FRAME
183834 (1) Full qty
17
L.H. REAR FRAME
183833 (1) Full qty
18
R.H. REAR FENDER FRAME
64810000 (1) Full qty
19
L.H. REAR FENDER FRAME
65995500 (1) Full qty
20
R.H. SIDE BRACKET
65151600 (1) Full qty
20
R.H. SIDE BRACKET
65151611 (1) Full qty
21
L.H. SIDE BRACKET
65151711 (1) Full qty
21
L.H. SIDE BRACKET
65151700 (1) Full qty
22
HALF REPOTTED HEAD RIVET
66292300 (0) Full qty
22
STANDARD HEAD RIVET
66292200 (0) Full qty
23
RIVET
65133800 (0) Full qty
24
HEXAGONAL RIVET
15624411 (0) Full qty
24
HEXAGONAL RIVET
15624211 (0) Full qty
24
RIVET
15624311 (0) Full qty
24
HEXAGONAL RIVET
15624511 (0) Full qty
24
RIVET
15180411 (0) Full qty
25
RIVET
65151200 (0) Full qty
26
RIVET M10 BLIND
179299 (0) Full qty
26
KNURLED RIVET
166101 (0) Full qty
26
KNURLED RIVET
65930400 (0) Full qty
26
KNURLED RIVET
65135000 (0) Full qty
26
NUT KNURLED RIVET
65319800 (0) Full qty
27
HEXAGONAL HEAD STUD BOLT
65065400 (0) Full qty
28
SCREW
13836971 (0) Full qty
29
R.H. BRACKET
166288 (1) Full qty
30
L.H. BRACKET
166188 (1) Full qty
31
R.H. UPPER FUSION REAR PILLAR
6166261 (1) Full qty
32
L.H. UPPER FUSION REAR PILLAR
6166161 (1) Full qty
33
COMPLETE R.H. REAR PANEL
66051200 (1) Full qty
34
COMPLETE L.H. REAR PANEL
66051100 (1) Full qty
35
REPAIR INSERTS KIT
70000950 (1) Full qty
