F1 Clutch Hydraulic Control -Valid For 355 F1 Cars-

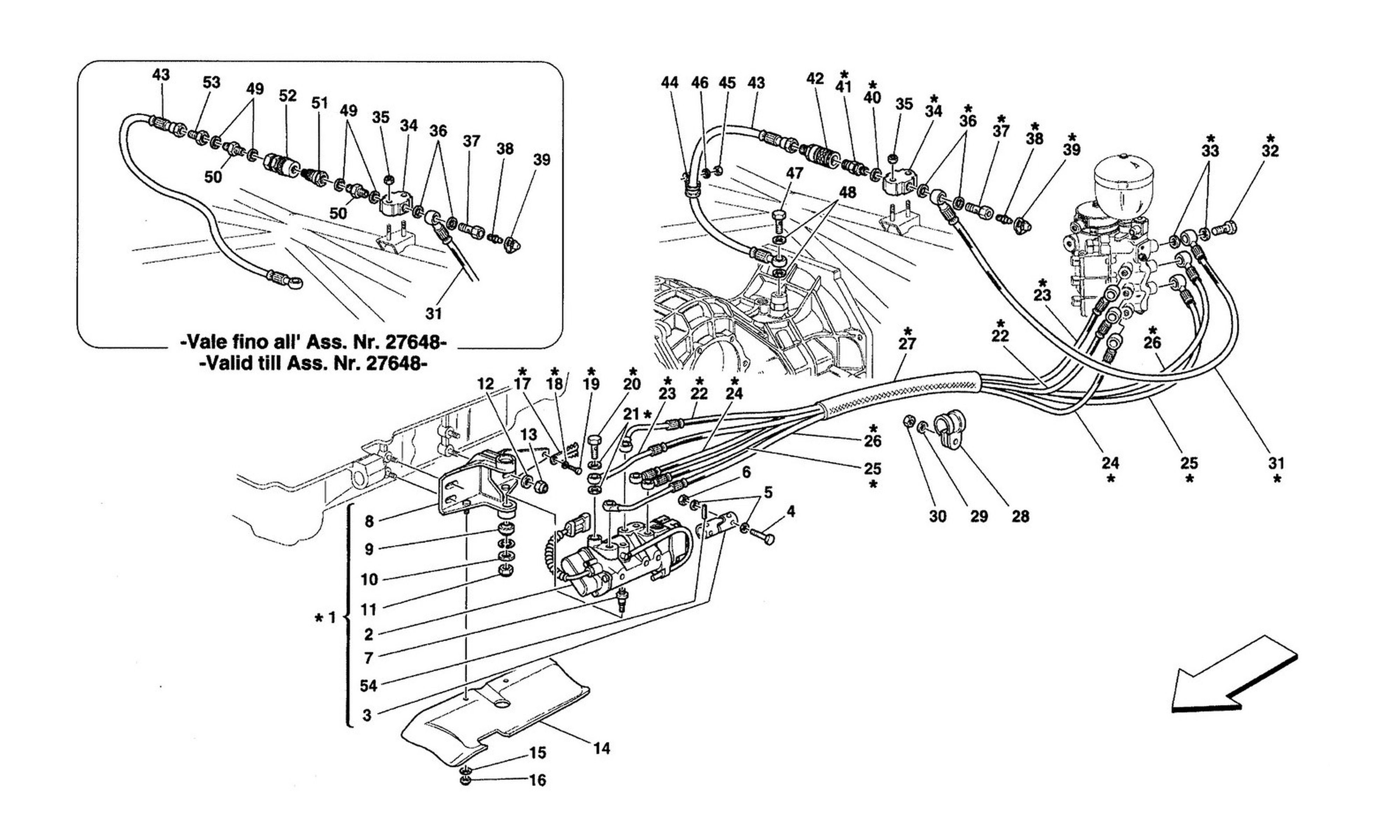

Schematic: F1 Clutch Hydraulic Control -Valid For 355 F1 Cars-
Schematic: F1 Clutch Hydraulic Control -Valid For 355 F1 Cars-
Loc
Part
Cond       Price
1
ACTUATOR
177687 (1) Full qty
2
ACTUATOR
177687 (1) Full qty
3
COUPLING BALL JOINT
167946 (1) Full qty
4
SCREW
170767 (1) Full qty
5
WASHER
103493 (2) Full qty
6
8x1.25 lock nut
New       Price on Enquiry
101139 (1) Full qty
GB10400n
7
THREADED PIN
169221 (2) Full qty
8
ACTUATOR SUPPORT
169219 (1) Full qty
9
BALL JOINT
169222 (2) Full qty
10
WASHER
126980 (2) Full qty
11
8x1.25 lock nut
New       Price on Enquiry
101139 (2) Full qty
GB10400n
12
Washer
12646724 (4) Full qty
13
8x1.25 lock nut
New       Price on Enquiry
101139 (4) Full qty
GB10400n
14
SHIELD FOR ACTUATOR PROTECTION…
168523 (1) Full qty
15
WASHER
12637824 (2) Full qty
16
NUT
12578011 (2) Full qty
17
CLIP
166935 (1) Full qty
18
WASHER -Version with front cam…
12601074 (1) Full qty
19
Screw
10444521 (1) Full qty
20
Fitting
111644 (5) Full qty
21
Gasket
10261060 (10) Full qty
22
PIPE (EV4)
168472 (1) Full qty
23
PIPE (EV3)
168470 (1) Full qty
24
PIPE (EV5)
168474 (1) Full qty
25
PIPE (EV2)
168468 (1) Full qty
26
PIPE (EV1)
168466 (1) Full qty
27
PROTECTION SHEATH
168525 (1) Full qty
28
BRACKET WITH SHEATH
124034 (2) Full qty
29
WASHER
14496424 (2) Full qty
30
Nut
102741 (2) Full qty
31
PIPE FROM PUMP TO BLOCK
175833 (1) Full qty
32
Fitting
111644 (6) Full qty
33
Gasket
10261060 (12) Full qty
34
BLOCK
175667 (1) Full qty
35
Nut
102741 (2) Full qty
36
Gasket
10261060 (2) Full qty
37
UNION
171630 (1) Full qty
38
Bleed Screw
152954 (1) Full qty
39
PROTECTION BOOT
152955 (1) Full qty
40
GASKET
10284460 (1) Full qty
41
FEMALE CoupeING
70001184 (1) Full qty
42
FEMALE CoupeING
70001184 (1) Full qty
43
PIPE FROM BLOCK TO GEARBOX
174421 (1) Full qty
44
Bracket
10441790 (1) Full qty
45
Nut
102741 (1) Full qty
46
WASHER
12639724 (1) Full qty
47
UNION
171454 (1) Full qty
48
Gasket
10261060 (2) Full qty
49
GASKET
10284460 (4) Full qty
50
UNION
172447 (2) Full qty
51
QUICK MALE COUPLING
171773 (1) Full qty
52
QUICK FEMALE COUPLING
171602 (1) Full qty
53
UNION
174317 (1) Full qty
54
PIN
14164274 (2) Full qty
