Body - Shield And Wheelhouses

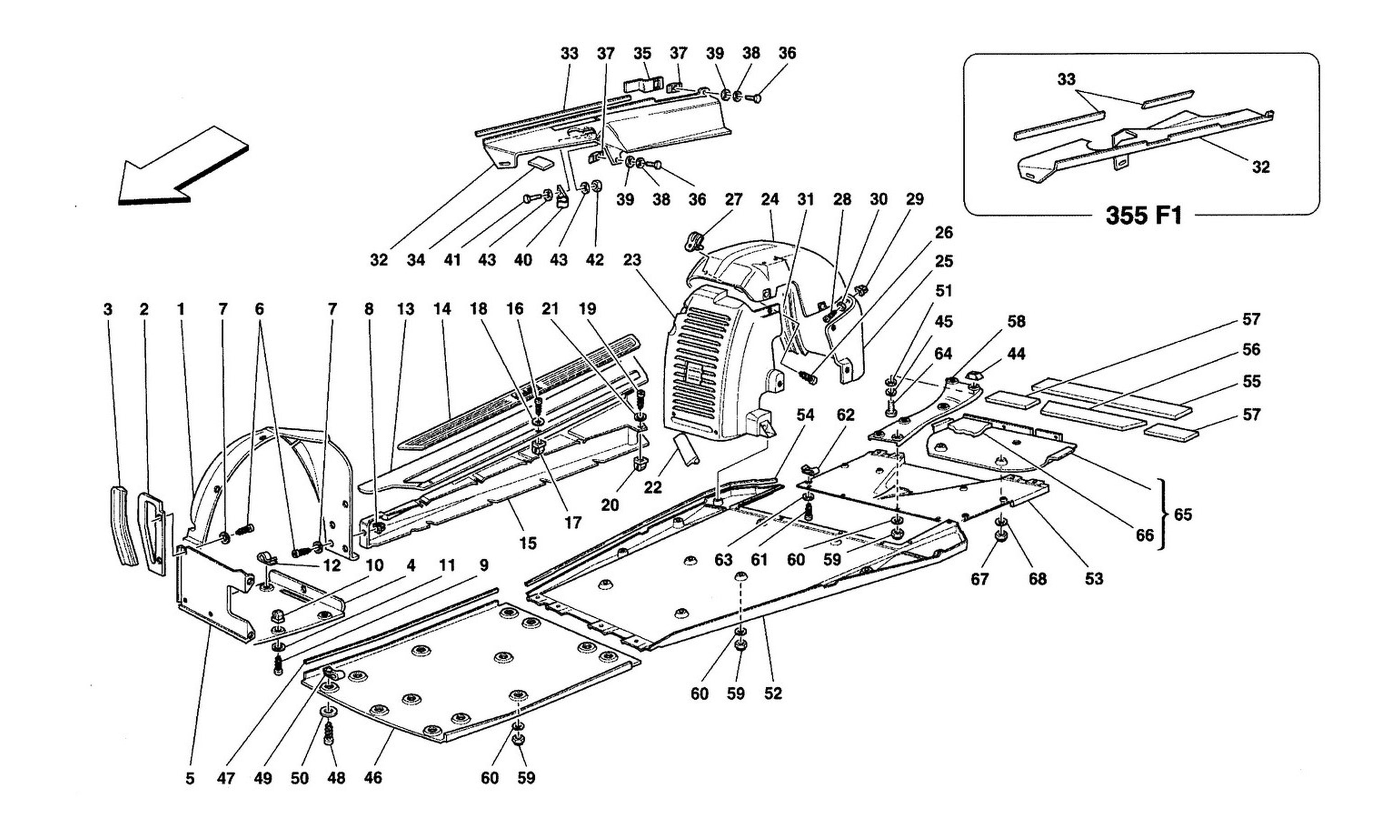

Schematic: Body - Shield And Wheelhouses
Schematic: Body - Shield And Wheelhouses
Loc
Part
Cond       Price
1
L.H. FRONT WHEELHOUSE GRAVEL …
65260600 (1) Full qty
1
R.H. FRONT WHEELHOUSE GRAVEL …
65260500 (1) Full qty
2
R.H. FRONT LATERAL GRAVEL GUAR…
64110700 (1) Full qty
2
L.H. FRONT LATERAL GRAVEL GUAR…
64110800 (1) Full qty
3
GASKET
63393200 (2) Full qty
4
L.H. LOWER GUARD FOR UNDERBOD…
65142800 (1) Full qty
4
R.H. LOWER GUARD FOR UNDERBOD…
65142700 (1) Full qty
5
R.H. LOWER FRONT GRAVEL GUARD…
64242900 (1) Full qty
5
L.H. LOWER FRONT GRAVEL GUARD…
64243000 (1) Full qty
6
SCREW
15903975 (14) Full qty
7
Washer
12638177 (14) Full qty
8
Block
14215480 (14) Full qty
9
SCREW
15644175 (10) Full qty
10
BLOCK
14115885 (4) Full qty
11
Washer
60711900 (10) Full qty
12
CLIP FOR SCREW
66252300 (6) Full qty
13
R.H. KICK PLATE
64119200 (1) Full qty
13
LH Kick Plate
New       Price on Enquiry
64119300 (1) Full qty
BW99172n
14
Sill Rubber Strip
New       Price on Enquiry
62172100 (2) Full qty
BW99174n
15
COVERING FOR L.H. SIDE MEMBER…
64101210 (1) Full qty
15
COVERING FOR R.H. SIDE MEMBER…
64101110 (1) Full qty
16
SCREW
15914977 (6) Full qty
17
BLOCK
14115580 (6) Full qty
18
Washer
12642878 (6) Full qty
19
SCREW
15688275 (20) Full qty
20
BLOCK
14203587 (20) Full qty
21
Washer
12638177 (20) Full qty
22
L.H. REAR GASKET
63251500 (1) Full qty
22
R.H. REAR GASKET
63251400 (1) Full qty
23
R.H. REAR WHEELHOUSE
65291300 (1) Full qty
23
L.H. REAR WHEELHOUSE
64878600 (1) Full qty
24
L.H. REAR WHEELHOUSE
64878400 (1) Full qty
24
R.H. REAR WHEELHOUSE
64878300 (1) Full qty
25
R.H. REAR WHEELHOUSE
64676400 (1) Full qty
25
L.H. REAR WHEELHOUSE
64676500 (1) Full qty
26
SCREW
15903975 (6) Full qty
27
Clip
60517200 (6) Full qty
28
SCREW -Not for USA-
15687375 (20) Full qty
29
Block
14215480 (20) Full qty
30
Washer
12638177 (20) Full qty
31
GASKET
63393200 (2) Full qty
32
L.H. LATERAL PROTECTION
64936100 (1) Full qty
32
R.H. LATERAL PROTECTION
64501500 (1) Full qty
32
L.H. LATERAL PROTECTION
64501600 (1) Full qty
33
GASKET
64517900 (2) Full qty
34
Shim for tank
127403 (2) Full qty
35
REAR BRACKET
64335200 (2) Full qty
36
SCREW
14305287 (8) Full qty
37
Caget nut
60758600 (8) Full qty
38
WASHER
160957 (8) Full qty
39
WASHER
12643778 (10) Full qty
40
Clip
131783 (2) Full qty
41
Screw
10977624 (2) Full qty
42
NUT
169180 (2) Full qty
43
WASHER
12638124 (4) Full qty
44
Caget nut
60758600 (4) Full qty
45
Clutch Bolt Wavy Washer 550/57…
127494 (4) Full qty
46
355 Front Central Under Panel
New       Price on Enquiry
64841100 (1) Full qty
BW99423n
47
FRONT UNDER THE BODY SHELL GA…
64349600 (2) Full qty
48
SCREW
15644175 (3) Full qty
49
CLIP FOR SCREW
66252300 (3) Full qty
50
Washer
60711900 (3) Full qty
51
WASHER
12643770 (4) Full qty
51
WASHER
12643770 (4) Full qty
52
CENTRAL UNDER- FLOOR
64841300 (1) Full qty
52
Central Under Floor Panel F355 Pattern
New       £ 868.02
64841200 (1) Full qty
BW99512n
53
355 Rear Under Floor Panel
New       Price on Enquiry
64841400 (1) Full qty
BW99427n
54
CENTRAL UNDER-FLOOR GASKET
64473300 (2) Full qty
55
UNDER-FLOOR UPPER CENTRAL INS…
64608700 (1) Full qty
56
UNDER-FLOOR LOWER CENTRAL INS…
64608600 (1) Full qty
57
UNDER-FLOOR LATERAL INSULATIO…
64608800 (2) Full qty
58
LH Rear Air Extractor
New       £ 164.99
64841000 (1) Full qty
BW99382n
58
RH Rear Air Extractor Pattern
New       £ 164.99
64840900 (1) Full qty
BW99383n
59
NUT
64449900 (36) Full qty
60
Washer
12640677 (36) Full qty
61
SCREW
15644175 (8) Full qty
62
CLIP FOR SCREW
66252300 (8) Full qty
63
Washer
60711900 (8) Full qty
64
SCREW
10902180 (4) Full qty
65
355 Under Sump Acoustic Shield
New       Price on Enquiry
65095700 (1) Full qty
BW99429n
66
INSULATION FOR SCREEN
65095800 (1) Full qty
67
Nyloc Nut 6 x 1 x 7.6mm
102948 (5) Full qty
68
WASHER
12643724 (5) Full qty
