Roof - Outer Trims

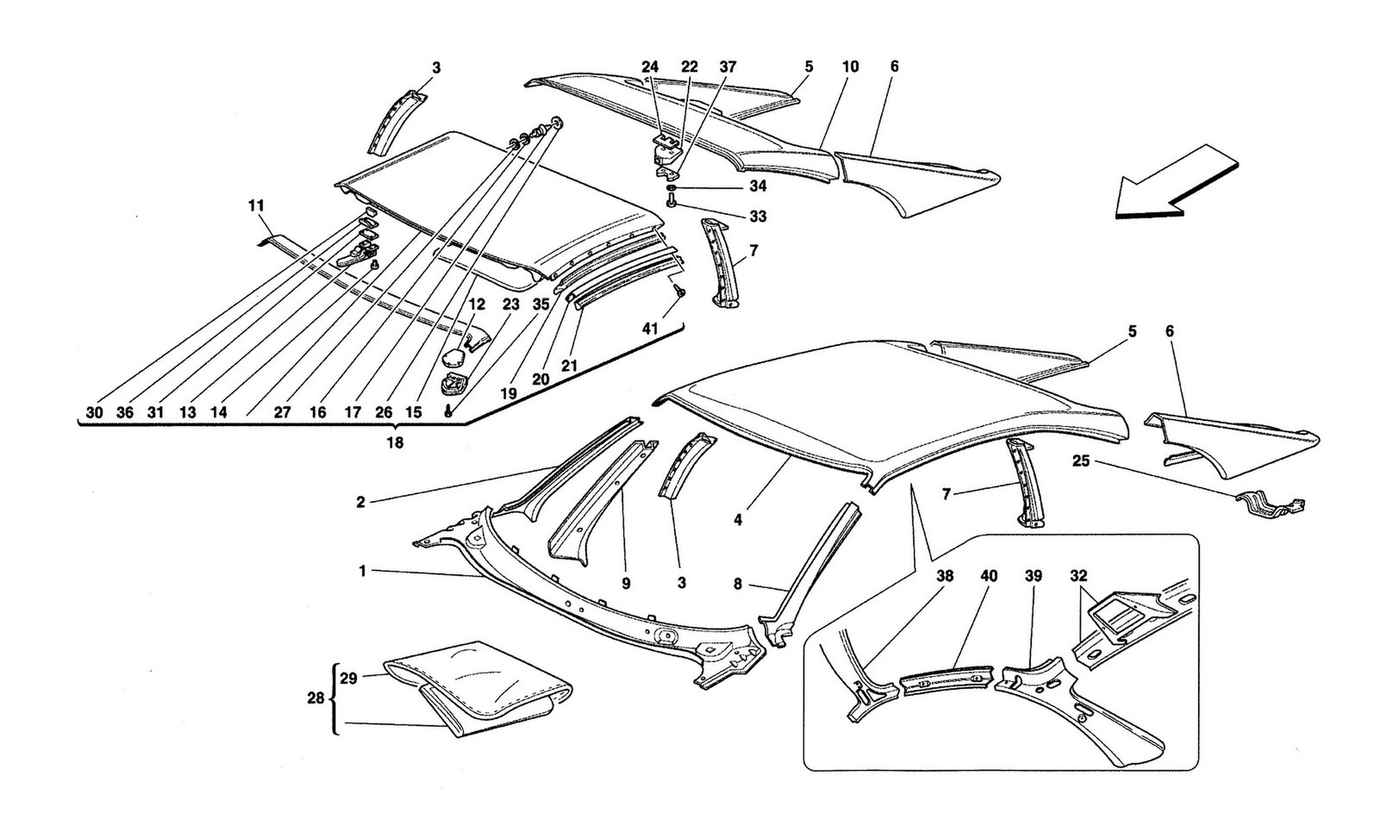

Schematic: Roof - Outer Trims
Loc
Part
Cond       Price
1
TAIL WINDSHIELD TRIM
62183900 (1) Full qty
1
TAIL WINDSHIELD TRIM
62181100 (1) Full qty
2
R.H. OUTER TRIM FOR WINDSHIEL…
62059900 (1) Full qty
3
R.H. REAR VERTICAL ROD
62083700 (1) Full qty
3
R.H. REAR VERTICAL ROD
64383200 (1) Full qty
4
ROOF UPHOLSTERY
63234900 (1) Full qty
5
R.H. FIN TRIM
62062100 (1) Full qty
6
L.H. FIN TRIM
62062200 (1) Full qty
7
L.H. REAR VERTICAL ROD
62083800 (1) Full qty
7
L.H. REAR VERTICAL ROD
64383300 (1) Full qty
8
L.H. OUTER TRIM FOR WINDSHIEL…
62060000 (1) Full qty
9
R.H. INNER VERTICAL ROD
62080300 (1) Full qty
9
L.H. INNER VERTICAL ROD
62080400 (1) Full qty
10
ROOF UPHOLSTERY
63236200 (1) Full qty
11
WINDSHIELD UPPER CROSSPIECE TR…
62110800 (1) Full qty
12
THICKNESS
63238700 (2) Full qty
13
HANDLE
64323200 (2) Full qty
14
SCREW
14303382 (8) Full qty
15
L.H. COVER
64485200 (1) Full qty
15
R.H. COVER
64484800 (1) Full qty
15
R.H. COVER
64484900 (1) Full qty
15
R.H. COVER
64485000 (1) Full qty
15
R.H. COVER
64485100 (1) Full qty
15
L.H. COVER
64485300 (1) Full qty
15
L.H. COVER
64485400 (1) Full qty
15
L.H. COVER
64485500 (1) Full qty
15
R.H. COVER
630198.. (1) Full qty
15
L.H. COVER
630199.. (1) Full qty
16
Do Not Use - See GE07667n
12601374 (2) Full qty
16
New       £ 0.12
12601374 (2) Full qty
CH11905n
17
PIN
63634500 (2) Full qty
18
COMPLETE SUN ROOF
643429.. (1) Full qty
18
COMPLETE SUN ROOF
643431.. (1) Full qty
19
R.H. TROUGH
64343400 (1) Full qty
19
L.H. TROUGH
64343500 (1) Full qty
20
ROOF R.H. MOULDING
64517500 (1) Full qty
20
ROOF L.H. MOULDING
64517600 (1) Full qty
21
R.H. GASKET
65269100 (1) Full qty
21
R.H. GASKET
64343200 (1) Full qty
21
L.H. GASKET
64343300 (1) Full qty
21
L.H. GASKET
65269200 (1) Full qty
22
ROOF FIXING REAR BRACKET
63634600 (2) Full qty
23
ROOF LOCKING FRONT STRIKER
64333700 (2) Full qty
24
THICKNESS
62113200 (2) Full qty
25
L.H. BRACKET
65370900 (1) Full qty
25
R.H. BRACKET
65370800 (1) Full qty
26
SPACER
63635200 (2) Full qty
27
WASHER
12642777 (4) Full qty
28
COMPLETE ROOF OVERLAP
63348200 (1) Full qty
29
ROOF COVER CONTAINING ENVELOPE…
63336200 (1) Full qty
30
ANTI-VIBRATIONS
64619200 (2) Full qty
31
THICKNESS mm. 3
63932300 (2) Full qty
31
THICKNESS mm. 1
60399003 (2) Full qty
32
ROOF REAR CROSS MEMBER
64922500 (1) Full qty
33
SCREW
10902334 (4) Full qty
34
Washer
106850 (4) Full qty
35
New       £ 0.32
13301577 (6) Full qty
NT00051n
36
BLOCK
64328800 (2) Full qty
37
PLATE
64693200 (2) Full qty
38
WINDSCREEN UPPER CROSS ARM BOX…
64692300 (1) Full qty
39
L.H. FIN FRAME
64922900 (1) Full qty
39
R.H. FIN FRAME
64922800 (1) Full qty
40
R.H. ROOF SIDE RAIL FRAME
64922600 (1) Full qty
40
L.H. ROOF SIDE RAIL FRAME
64922700 (1) Full qty
41
SCREW
15914877 (12) Full qty
