Central Part Structures

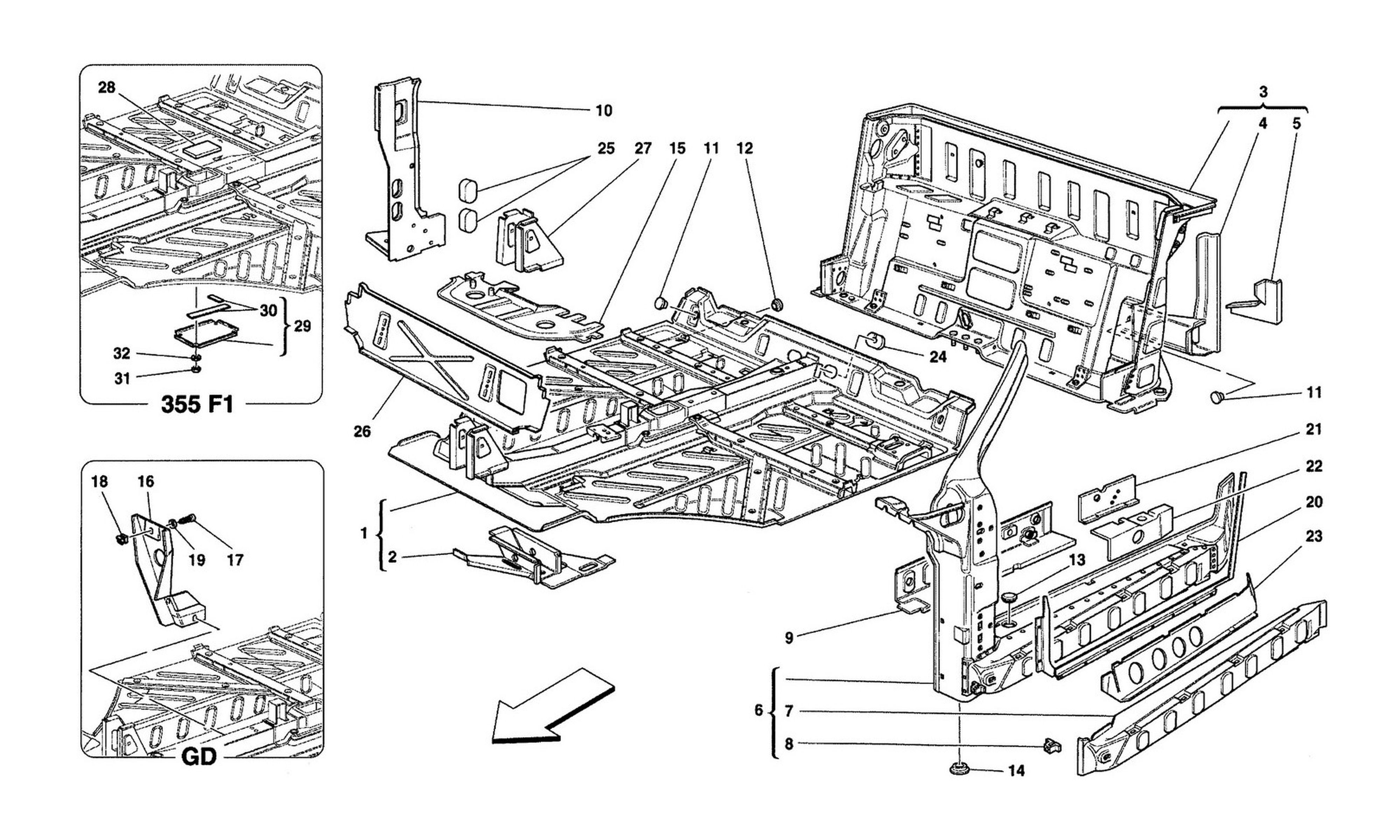

Schematic: Central Part Structures
Schematic: Central Part Structures
Loc
Part
Cond       Price
1
COMPLETE CENTRAL FLOOR
65246200 (1) Full qty
1
COMPLETE CENTRAL FLOOR
65246400 (1) Full qty
1
COMPLETE CENTRAL FLOOR
65245800 (1) Full qty
1
COMPLETE CENTRAL FLOOR
65749200 (1) Full qty
1
COMPLETE CENTRAL FLOOR
65730800 (1) Full qty
1
COMPLETE CENTRAL FLOOR
65730900 (1) Full qty
1
COMPLETE CENTRAL FLOOR
65731000 (1) Full qty
1
COMPLETE CENTRAL FLOOR
65749100 (1) Full qty
1
COMPLETE CENTRAL FLOOR
65749000 (1) Full qty
1
COMPLETE CENTRAL FLOOR
65246000 (1) Full qty
1
COMPLETE CENTRAL FLOOR
65748900 (1) Full qty
1
COMPLETE CENTRAL FLOOR
65731100 (1) Full qty
2
L.H. PLATE WITH REINFORCEMENT
62164100 (1) Full qty
2
R.H. PLATE WITH REINFORCEMENT
62164000 (1) Full qty
3
COMPLETE REAR FRAMEWORK
64934400 (1) Full qty
3
COMPLETE REAR FRAMEWORK
64938000 (1) Full qty
3
COMPLETE REAR FRAMEWORK
64899200 (1) Full qty
3
COMPLETE REAR FRAMEWORK
64954200 (1) Full qty
3
COMPLETE REAR FRAMEWORK
65457800 (1) Full qty
3
COMPLETE REAR FRAMEWORK
65330700 (1) Full qty
3
COMPLETE REAR FRAMEWORK
65342600 (1) Full qty
3
COMPLETE REAR FRAMEWORK
65354600 (1) Full qty
3
COMPLETE REAR FRAMEWORK
65355500 (1) Full qty
3
COMPLETE REAR FRAMEWORK
65403100 (1) Full qty
3
COMPLETE REAR FRAMEWORK
65429100 (1) Full qty
3
COMPLETE REAR FRAMEWORK
65487500 (1) Full qty
4
MOVING FRAME FIXING CROSS MEMB…
64245800 (1) Full qty
4
MOVING FRAME FIXING CROSS MEMB…
64781800 (1) Full qty
5
REINFORCEMENT R.H. BRACKET
64302100 (1) Full qty
5
REINFORCEMENT L.H. BRACKET
64302200 (1) Full qty
6
L.H. DOOR COMPARTMENT FRAME
64522500 (1) Full qty
6
R.H. DOOR COMPARTMENT FRAME
64522400 (1) Full qty
6
L.H. DOOR COMPARTMENT FRAME
64384500 (1) Full qty
6
R.H. DOOR COMPARTMENT FRAME
64384400 (1) Full qty
6
R.H. DOOR COMPARTMENT FRAME
62088500 (1) Full qty
6
L.H. DOOR COMPARTMENT FRAME
62088600 (1) Full qty
7
EXTERNAL COVERING FOR L.H. SI…
62077400 (1) Full qty
7
EXTERNAL COVERING FOR R.H. SI…
62077300 (1) Full qty
8
BRACKET
62055300 (2) Full qty
9
INTERNAL PLATE FOR L.H. SIDE …
62069000 (1) Full qty
9
INTERNAL PLATE FOR R.H. SIDE …
62068900 (1) Full qty
10
L.H. PILLAR BOX-TYPE
62080200 (1) Full qty
10
R.H. PILLAR BOX-TYPE
62080100 (1) Full qty
11
CAP
14506987 (9) Full qty
12
Plug to close hole switch encl…
14506587 (1) Full qty
13
CAP
14507987 (2) Full qty
14
Plug to close hole under frame…
62446300 (4) Full qty
14
CAP
14506787 (4) Full qty
15
REINFORCEMENT PLATE
62209400 (1) Full qty
16
FOOT-REST REINFORCEMENT BRACKE…
64447000 (1) Full qty
17
SCREW
15903975 (2) Full qty
18
BLOCK
14202782 (2) Full qty
19
Washer
12638177 (2) Full qty
20
R.H. STRUCTURAL SHAPE ASSEMBLY…
64374100 (1) Full qty
20
L.H. STRUCTURAL SHAPE ASSEMBLY…
64374200 (1) Full qty
20
L.H. STRUCTURAL SHAPE ASSEMBLY…
64645400 (1) Full qty
20
R.H. STRUCTURAL SHAPE ASSEMBLY…
64645300 (1) Full qty
21
R.H. REAR REINFORCEMENT PLATE
63011200 (1) Full qty
21
L.H. REAR REINFORCEMENT PLATE
63011300 (1) Full qty
21
R.H. REAR REINFORCEMENT PLATE
64384600 (1) Full qty
21
L.H. REAR REINFORCEMENT PLATE
64384700 (1) Full qty
22
R.H. OUTER REAR REINFORCEMENT
64384200 (1) Full qty
22
L.H. OUTER REAR REINFORCEMENT
64384300 (1) Full qty
23
R.H. OUTER REINFORCEMENT
63011400 (1) Full qty
23
L.H. OUTER REINFORCEMENT
63011500 (1) Full qty
24
RING
63566000 (1) Full qty
25
THICKNESS
64463600 (2) Full qty
26
DASH PANEL LOWER SHIELD
64436600 (1) Full qty
26
DASH PANEL LOWER SHIELD
64330200 (1) Full qty
27
UNION BRACKET
62063700 (1) Full qty
28
PLATE FOR CENTRAL TUNNEL HOLE
64733900 (1) Full qty
29
PLATE FOR PAVEMENT HOLE
64733700 (1) Full qty
30
GASKET
64735400 (4) Full qty
31
8x1.25 lock nut
New       Price on Enquiry
101139 (4) Full qty
GB10400n
32
Washer
10519624 (4) Full qty
