Brake Hydraulic System

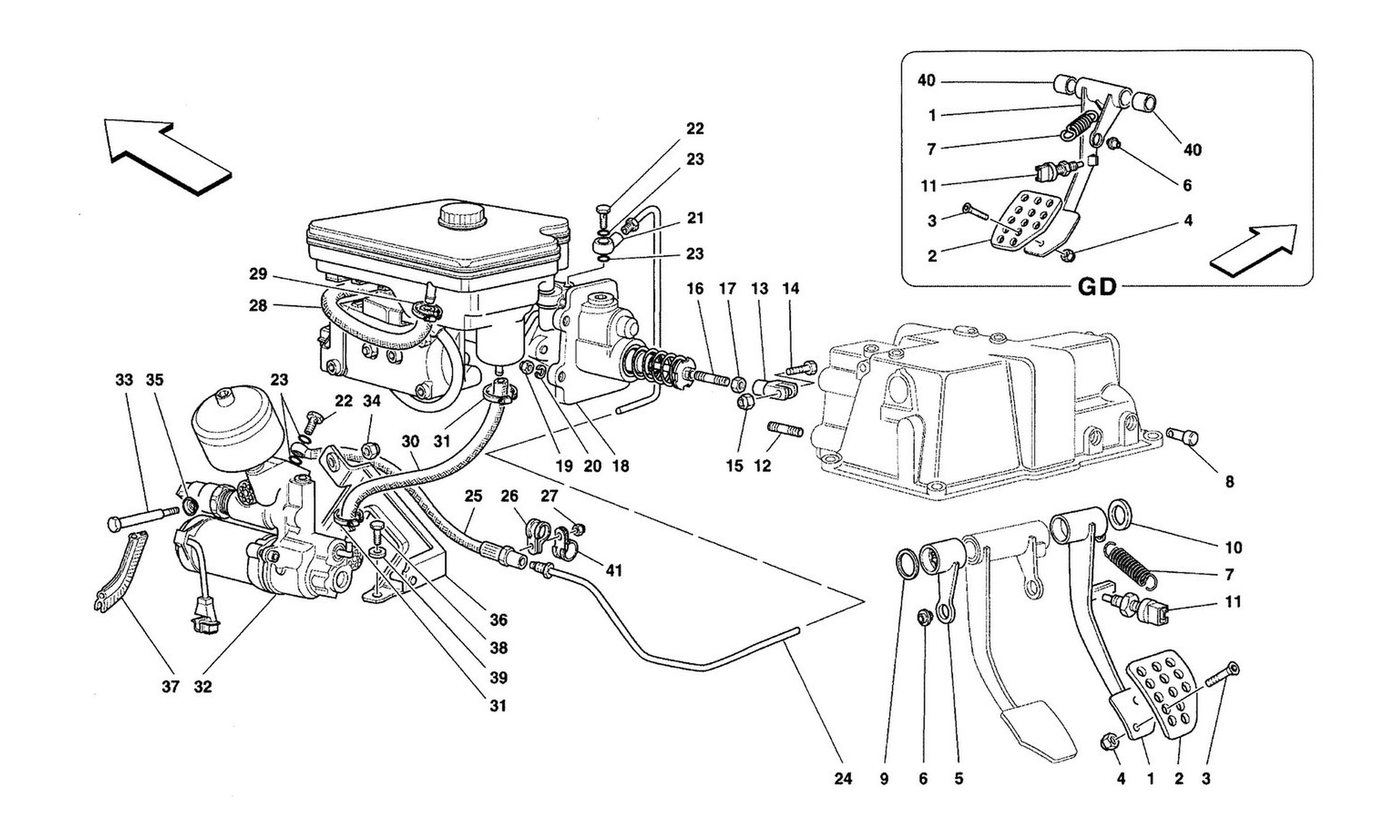

Schematic: Brake Hydraulic System
Loc
Part
Cond       Price
1
BRAKE PEDAL
157267 (1) Full qty
1
BRAKE PEDAL
161947 (1) Full qty
2
BRAKE PEDAL DRILLED PLATE
162535 (1) Full qty
3
New       £ 0.31
14441324 (2) Full qty
PB14047n
4
NUT
15896214 (2) Full qty
5
Brake lever
129609 (1) Full qty
6
Ball joint
109407 (1) Full qty
7
Clutch spring short Daytona
101305 (1) Full qty
8
Spring anchor pin
129612 (1) Full qty
9
Washer
112125 (1) Full qty
10
Shim 1,2 mm.
112130 (1) Full qty
10
Shim 1,3 mm.
112131 (1) Full qty
10
Shim 1,1 mm.
112129 (1) Full qty
10
Shim 1,0 mm.
112128 (1) Full qty
10
Shim 0,9 mm.
112127 (1) Full qty
11
Brake Light Switch
133555 (1) Full qty
11
New       Price on Enquiry
133555 (1) Full qty
ET02508n
12
STUD
13543424 (4) Full qty
13
Fork
10007871 (1) Full qty
14
Bolt
16043621 (1) Full qty
15
NUT
147985 (1) Full qty
16
STUD
13517124 (1) Full qty
17
NUT
16102324 (1) Full qty
18
HYDRAULIC CONTROL
70000768 (1) Full qty
19
NUT
104030 (4) Full qty
20
Do Not Use - See GE07667n
12601374 (4) Full qty
20
New       £ 0.12
12601374 (4) Full qty
CH11905n
21
UNION
70000535 (1) Full qty
22
Union
131873 (2) Full qty
23
Kit O-Ring
70000510 (4) Full qty
24
BRAKE PIPE
143676 (1) Full qty
24
BRAKE PIPE
143677 (1) Full qty
25
HOSE KIT
70000533 (1) Full qty
26
Small bracket with sheathing
10441590 (1) Full qty
27
Nut
102741 (1) Full qty
28
Pipe from pump to tank
134903 (1) Full qty
28
PIPE FROM CLUTCH PUMP TO TANK
151845 (1) Full qty
29
SCREW COLLAR
157934 (1) Full qty
29
SCREW COLLAR
157934 (1) Full qty
30
RUBBER HOSE
132411 (1) Full qty
30
RUBBER HOSE
143069 (1) Full qty
31
SCREW COLLAR
157934 (2) Full qty
31
SCREW COLLAR
157934 (2) Full qty
32
BRAKES CONTROL PUMP
148977 (1) Full qty
33
Screw
129636 (1) Full qty
34
Nyloc Nut 6 x 1 x 7.6mm
102948 (1) Full qty
35
Washer
130861 (1) Full qty
36
BRACKET
140498 (1) Full qty
37
GASKET
144824 (1) Full qty
38
Screw
16043124 (2) Full qty
39
Wavy Lock Washer 8mm
127496 (2) Full qty
40
Bush
103163 (2) Full qty
41
Hose fastening bracket
10441490 (1) Full qty
