Main Shaft Gears

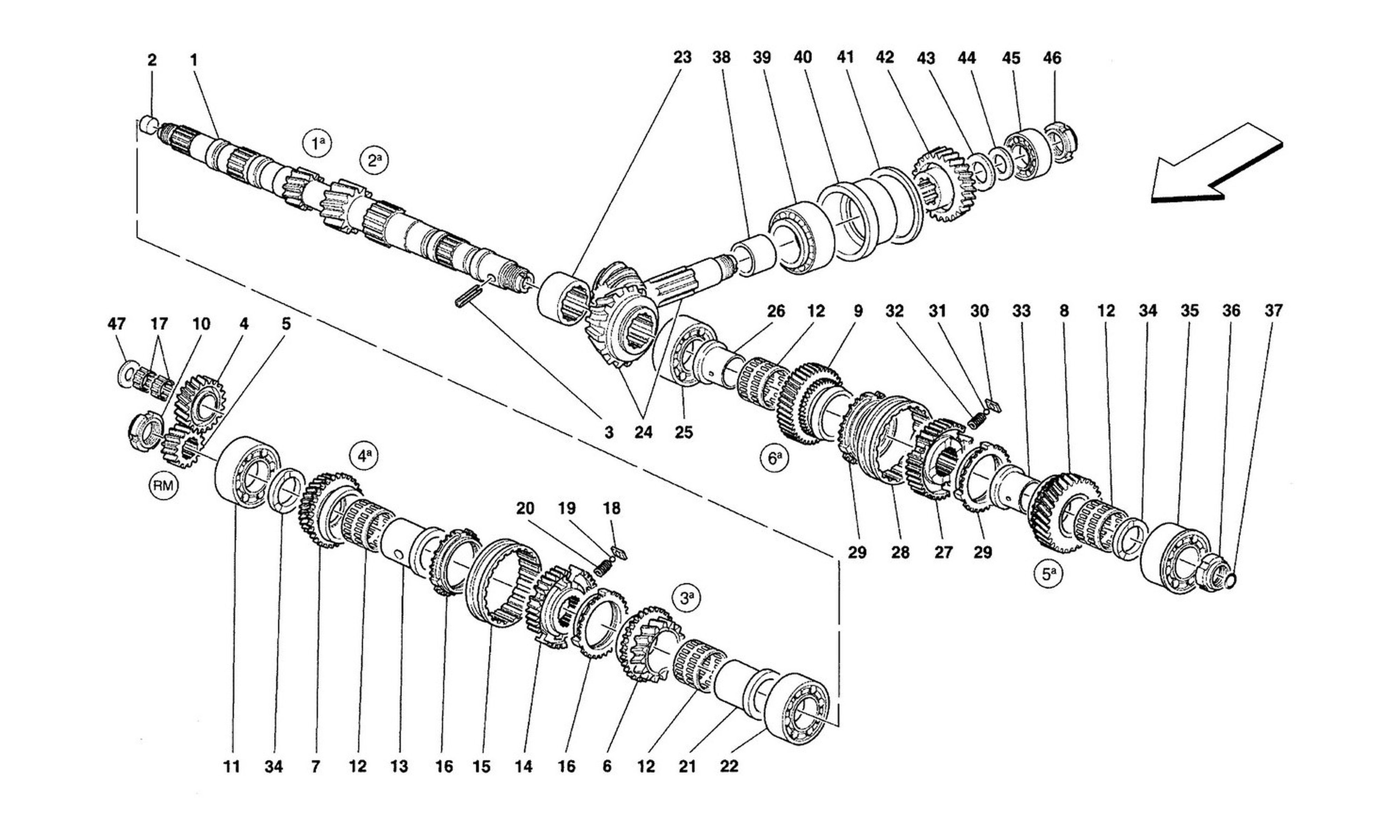

Schematic: Main Shaft Gears
Schematic: Main Shaft Gears
Loc
Part
Cond       Price
1
MAIN SHAFT FOR GEAR LEVER
156925 (1) Full qty
2
PLUG
14328401 (1) Full qty
3
Pin
14601470 (1) Full qty
4
IDLE GEAR FOR NEUTRAL/REVERSE
160942 (1) Full qty
4
IDLE GEAR FOR NEUTRAL/REVERSE
155653 (1) Full qty
5
RM DRIVING GEAR
155644 (1) Full qty
6
PINION FOR 3rd GEAR
157260 (1) Full qty
7
PINION FOR 4th GEAR
155657 (1) Full qty
8
PINION FOR 5th GEAR
155658 (1) Full qty
9
PINION FOR 6th GEAR
161913 (1) Full qty
9
PINION FOR 6th GEAR
155659 (1) Full qty
10
Clutch Shaft Nut 17mm Height
125480 (1) Full qty
11
BEARING
157179 (1) Full qty
12
4th speed roller cage
107525 (4) Full qty
13
BUSHING
151576 (1) Full qty
14
SYNCHRONIZER BODY
161015 (1) Full qty
15
SLEEVE FOR SYNCHRONIZER
152198 (1) Full qty
16
SYNCHRONIZER RING
155155 (2) Full qty
17
Roller cage for reverse gear
104734 (2) Full qty
18
SMALL BLOCK
152195 (3) Full qty
19
BALL
152197 (1) Full qty
20
SPRING
161016 (3) Full qty
21
BUSHING
152914 (1) Full qty
22
BEARING
157177 (1) Full qty
23
SPACER
138694 (1) Full qty
24
COMPLETE BEVEL SET
168047 (1) Full qty
25
BEARING
157178 (1) Full qty
26
BUSHING
152386 (1) Full qty
27
SYNCHRONIZER BODY
152207 (1) Full qty
28
SLEEVE
152206 (1) Full qty
29
SYNCHRONIZER RING
152209 (2) Full qty
30
SMALL BLOCK
152195 (3) Full qty
31
BALL
152197 (3) Full qty
32
SPRING
152196 (3) Full qty
33
BUSHING
151576 (1) Full qty
34
SPACER mm. 4,4
164932 (2) Full qty
34
SPACER mm. 3,4
149365 (2) Full qty
34
SPACER mm. 4,1
149372 (2) Full qty
34
SPACER mm. 4,6
168073 (2) Full qty
34
SPACER mm. 4,5
164933 (2) Full qty
34
SPACER mm. 3,5
149366 (2) Full qty
34
SPACER mm. 4,3
153459 (2) Full qty
34
SPACER mm. 4,2
153457 (2) Full qty
34
SPACER mm. 3,8
149369 (2) Full qty
34
SPACER mm. 3,9
149370 (2) Full qty
34
SPACER mm. 3,6
149367 (2) Full qty
34
SPACER mm. 4,0
149371 (2) Full qty
34
SPACER mm. 3,7
149368 (2) Full qty
35
Double Ball Race Bearing
New       £ 84.92
155694 (1) Full qty
GB11745n
36
Locknut
New       Price on Enquiry
153000 (1) Full qty
GB10412n
37
O Ring Seal
New       Price on Enquiry
109724 (1) Full qty
GE00078n
38
Bearing holder envelope
131335 (1) Full qty
39
Tapered Roller Bearing
131015 (1) Full qty
40
BAG FOR BEARING
139828 (1) Full qty
41
Thrust
131393 (1) Full qty
41
Thrust
131388 (1) Full qty
41
Thrust
131389 (1) Full qty
41
Thrust
131391 (1) Full qty
41
Thrust
131390 (1) Full qty
41
Thrust
131392 (1) Full qty
42
DRIVEN GEAR ON PINION
160060 (1) Full qty
42
DRIVEN GEAR ON PINION
156366 (1) Full qty
43
SPACER
157319 (1) Full qty
44
Thrust
131377 (1) Full qty
44
Thrust
131375 (1) Full qty
44
Thrust
131374 (1) Full qty
44
Thrust
131378 (1) Full qty
44
Thrust
141048 (1) Full qty
44
Thrust
141046 (1) Full qty
44
Thrust
141044 (1) Full qty
44
Thrust
131376 (1) Full qty
44
SPACER mm. 2,4
157993 (1) Full qty
44
SPACER mm. 2,5
157994 (1) Full qty
44
Thrust
131379 (1) Full qty
45
Bearing
131016 (1) Full qty
46
Ring Nut
New       Price on Enquiry
105137 (1) Full qty
CL11914n
47
SPACER mm. 3,4
160939 (1) Full qty
47
SPACER mm. 3,6
160940 (1) Full qty
47
Thrust bearing
131425 (1) Full qty
47
SPACER mm. 2,6
165485 (1) Full qty
47
SPACER mm. 2,4
165484 (1) Full qty
47
SPACER mm. 3,5
160929 (1) Full qty
