Windshield Wiper And Controls

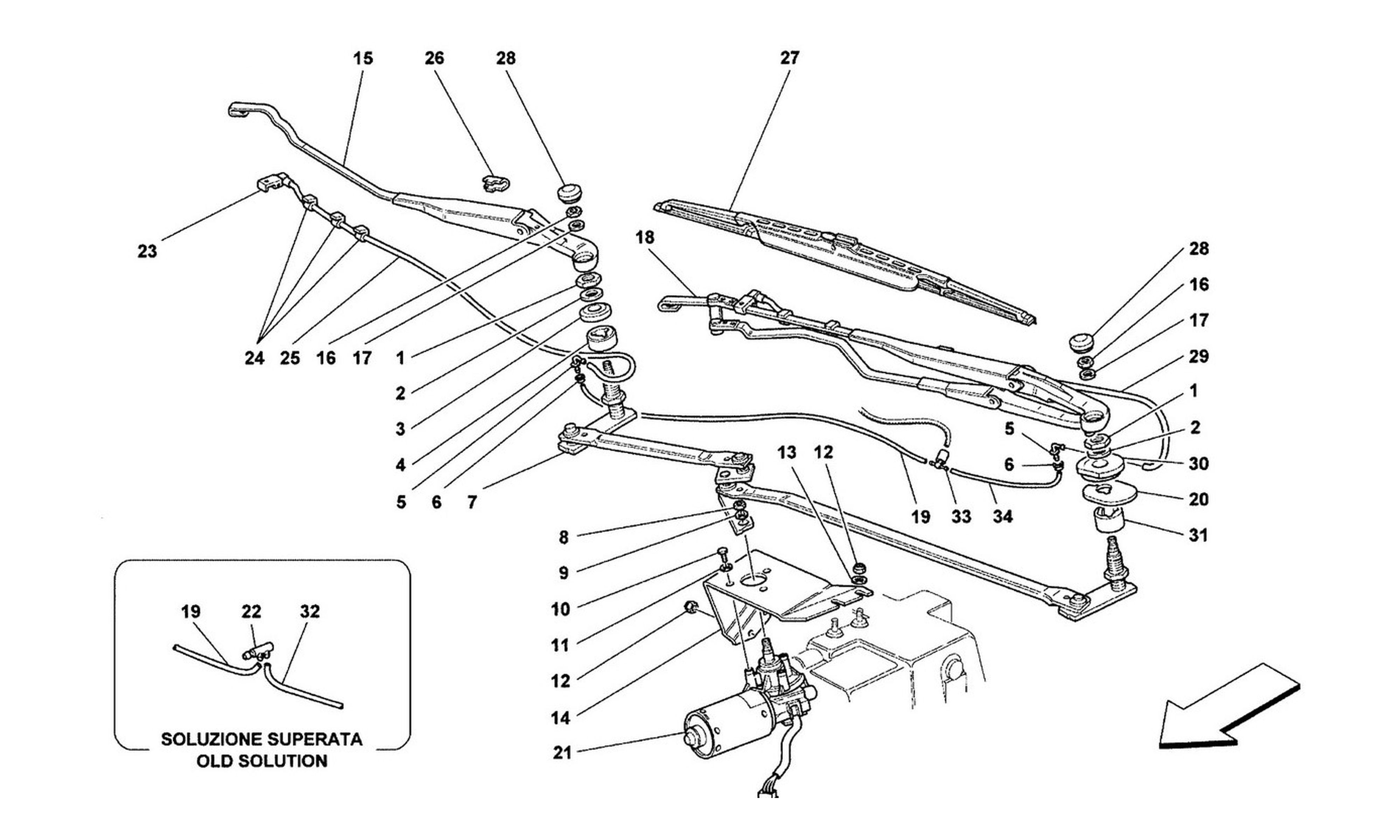

Schematic: Windshield Wiper And Controls
Loc
Part
Cond       Price
1
RING NUT
62661300 (2) Full qty
2
WASHER (DRIVER SIDE PIN)
63288800 (1) Full qty
2
WASHER (PASSENGER SIDE PIN)
62661100 (1) Full qty
3
SPACER
62661000 (1) Full qty
4
SPACER
62660900 (1) Full qty
5
UNION
62830100 (2) Full qty
6
Bush
61444900 (2) Full qty
7
WINDSHIELD WIPER LEVERAGE
62885800 (1) Full qty
7
WINDSHIELD WIPER LEVERAGE
62916100 (1) Full qty
8
NUT
62885600 (1) Full qty
9
WASHER
62885700 (1) Full qty
10
Screw
10902111 (3) Full qty
11
Clutch Bolt Wavy Washer 550/57…
127494 (3) Full qty
12
NUT
15896214 (4) Full qty
13
WASHER
12647624 (2) Full qty
14
WINDSHIELD WIPER MOTOR FASTENI…
62512100 (1) Full qty
14
WINDSHIELD WIPER MOTOR FASTENI…
144091 (1) Full qty
15
PASSENGER SIDE ARM
64610600 (1) Full qty
15
PASSENGER SIDE ARM
64610200 (1) Full qty
16
NUT
16102324 (2) Full qty
17
Wavy Lock Washer 8mm
127496 (2) Full qty
18
DRIVER SIDE ARM
64610500 (1) Full qty
18
DRIVER SIDE ARM
64610300 (1) Full qty
19
PIPE FROM UNION TO ARM (PASSE…
62834300 (1) Full qty
20
GASKET
62990900 (1) Full qty
21
WINDSHIELD WIPER MOTOR
157751 (1) Full qty
22
F union
50103100 (1) Full qty
23
Windscreen washer jet
61537500 (2) Full qty
23
Windscreen washer jet
61541500 (2) Full qty
24
Clip
61559400 (5) Full qty
25
PIPE ON PASSENGER SIDE ARM
63305700 (1) Full qty
26
CLIP
63305900 (2) Full qty
27
DRIVER SIDE WIPER BRUSH
67546800 (1) Full qty
27
PASSENGER SIDE WIPER BRUSH
67546700 (1) Full qty
27
DRIVER SIDE WIPER BRUSH
67546900 (1) Full qty
28
ARM SMALL COVER
62663400 (2) Full qty
29
SMALL PIPE FOR L.H. WINDSHIELD…
63305800 (1) Full qty
30
PANTOGRAPH FIXING PLATE
62661200 (1) Full qty
30
PANTOGRAPH FIXING PLATE
62886500 (1) Full qty
31
SPACER
62657000 (1) Full qty
32
PIPE FROM UNION TO ARM (DRIVE…
62834200 (1) Full qty
33
UNION
64891600 (1) Full qty
34
PIPE FROM UNION TO ARM (DRIVE…
64891700 (1) Full qty
