Doors - Glass Lifting Device

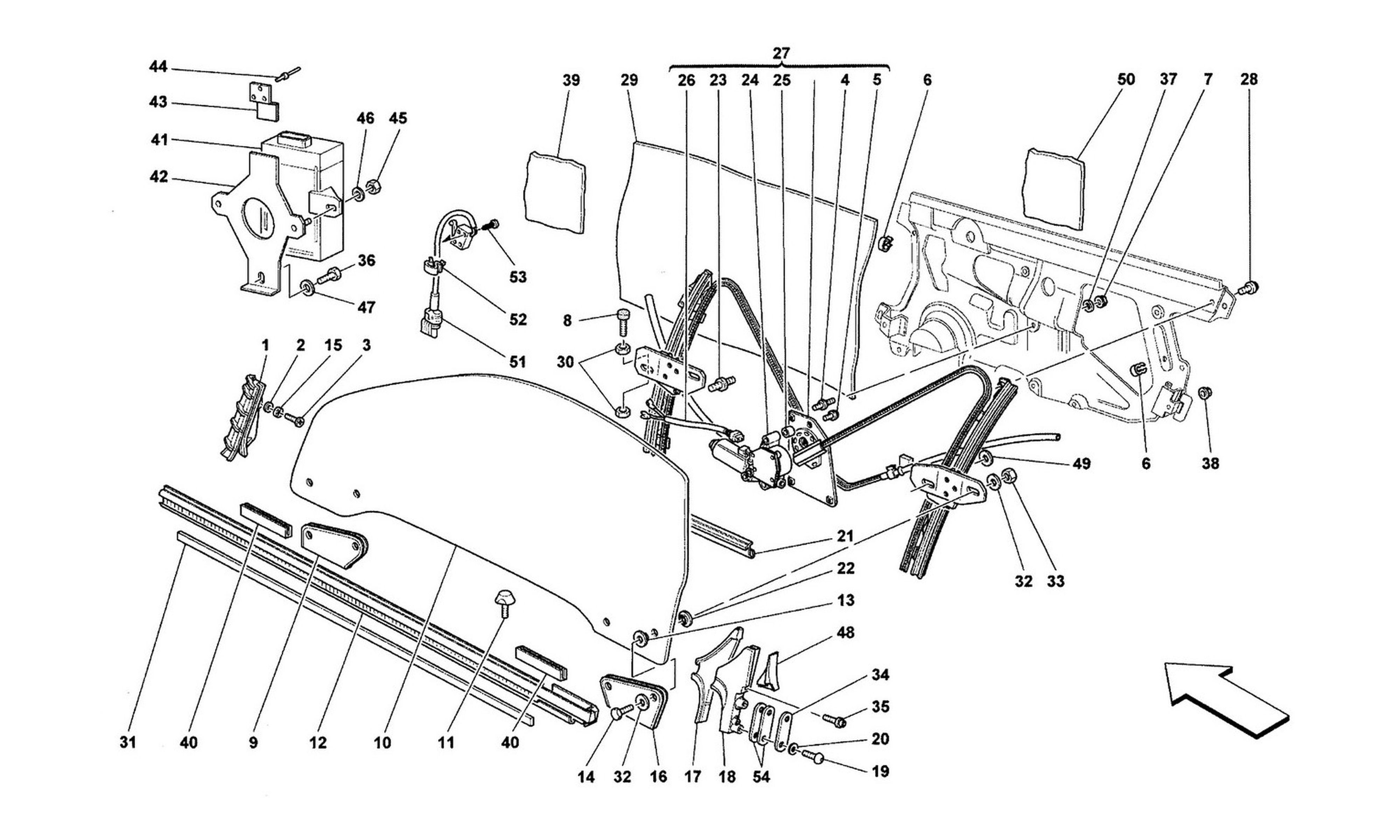

Schematic: Doors - Glass Lifting Device
Schematic: Doors - Glass Lifting Device
Loc
Part
Cond       Price
1
L.H. FRONT GLASS GUIDE
62122800 (1) Full qty
1
R.H. FRONT GLASS GUIDE
62122700 (1) Full qty
2
Washer
12646601 (2) Full qty
3
SCREW
13276211 (2) Full qty
4
RUBBER PAD
62008600 (6) Full qty
5
SCREW
63301800 (6) Full qty
6
CLIP
60123502 (4) Full qty
7
Nut
13832101 (6) Full qty
8
STOP BUFFER
62008400 (4) Full qty
9
GLASS FRONT BRACKET
62106100 (2) Full qty
10
R.H. DOOR GLASS
64250900 (1) Full qty
10
R.H. DOOR GLASS
62104300 (1) Full qty
10
L.H. DOOR GLASS
64251000 (1) Full qty
10
L.H. DOOR GLASS
64316800 (1) Full qty
10
L.H. DOOR GLASS
62104400 (1) Full qty
10
R.H. DOOR GLASS
64316700 (1) Full qty
11
LOWER RUBBER PAD
63238800 (2) Full qty
12
L.H. OUTER GASKET
65084900 (1) Full qty
12
R.H. OUTER GASKET
65084800 (1) Full qty
12
RH Door Lifting Device Gasket
Used       Price on Enquiry
62213100 (1) Full qty
GL00295u
12
LH Door Lifting Device Gasket
Used       Price on Enquiry
62213200 (1) Full qty
GL00296u
13
OUTER BUSHING
62106600 (8) Full qty
14
Bolt
10902521 (8) Full qty
14
SCREW
10902624 (8) Full qty
15
WASHER
12605371 (2) Full qty
16
GLASS REAR BRACKET
62106300 (2) Full qty
17
R.H. DOOR REAR ANGULAR GASKET…
62212900 (1) Full qty
17
L.H. DOOR REAR ANGULAR GASKET…
62213000 (1) Full qty
18
R.H. DOOR REAR ANGLE
62212000 (1) Full qty
18
R.H. DOOR REAR ANGLE
64332900 (1) Full qty
18
L.H. DOOR REAR ANGLE
64333000 (1) Full qty
18
L.H. DOOR REAR ANGLE
62212100 (1) Full qty
19
SCREW
62940900 (4) Full qty
20
WASHER
63314400 (4) Full qty
21
R.H. GLASS INNER GASKET
64543000 (1) Full qty
21
R.H. GLASS INNER GASKET
64687600 (1) Full qty
21
L.H. GLASS INNER GASKET
64687800 (1) Full qty
21
L.H. GLASS INNER GASKET
64543100 (1) Full qty
22
INNER BUSHING
62106700 (8) Full qty
23
PAD
62211900 (4) Full qty
24
L.H. engine
62302200 (1) Full qty
24
Window Motor RH
New       Price on Enquiry
62302100 (1) Full qty
EL11622n
24
Window Motor RH 348/F355/Mondial
Used       Price on Enquiry
62302100 (1) Full qty
EL11622u
25
SPACER
63301700 (6) Full qty
26
ELECTRIC WIRING FOR MOTOR
63301900 (2) Full qty
27
COMPLETE L.H. GLASS LIFT
63645300 (1) Full qty
27
COMPLETE R.H. GLASS LIFT
63645200 (1) Full qty
27
COMPLETE L.H. GLASS LIFT
62107300 (1) Full qty
27
Window Regulator Assembly 348
New       Price on Enquiry
62107200 (1) Full qty
BW10100n
28
SCREW
13836324 (4) Full qty
29
WATER PROTECTION CLOTH
63000900 (2) Full qty
30
NUT
15896214 (8) Full qty
31
BI-ADHESIVE TAPE
63012900 (2) Full qty
32
WASHER
12640624 (14) Full qty
33
Nut
102741 (8) Full qty
34
R.H. SMALL PLATE
64293000 (1) Full qty
34
SMALL PLATE
65055800 (2) Full qty
34
L.H. SMALL PLATE
64910300 (1) Full qty
35
SCREW
13271617 (4) Full qty
36
Screw
10902011 (1) Full qty
37
WASHER
10615474 (6) Full qty
38
Nut
13832101 (4) Full qty
39
UPPER AIR PROTECTION CLOTH
64482100 (2) Full qty
39
LOWER AIR PROTECTION CLOTH
64482300 (2) Full qty
40
LOWER GASKET
62106500 (4) Full qty
41
GLASS LIFTING MOTOR CONTROL EL…
154769 (1) Full qty
41
GLASS LIFTING MOTOR CONTROL EL…
164202 (1) Full qty
42
CONTROL UNIT FIXING BRACKET
154770 (1) Full qty
43
CLIP
63937700 (1) Full qty
44
Rivet to fix. evaporator apron…
60643400 (3) Full qty
45
NUT
169180 (2) Full qty
46
WASHER
14496324 (2) Full qty
47
Washer 1.6mm 6.4x11.95x1.6
10519424 (1) Full qty
48
R.H. ANGLE PIECE INSERT
64644600 (1) Full qty
48
L.H. ANGLE PIECE INSERT
64644700 (1) Full qty
49
Washer
106744 (2) Full qty
50
WATER PROTECTION CLOTH FOR HA…
63994800 (2) Full qty
51
MICRO-SWITCH
154762 (2) Full qty
52
CLIP
155907 (2) Full qty
53
Screw
15908506 (4) Full qty
54
INNER SMALL PLATE
64910400 (4) Full qty
