Current Generator (Valid Till Engine Nr. 30737) - Battery

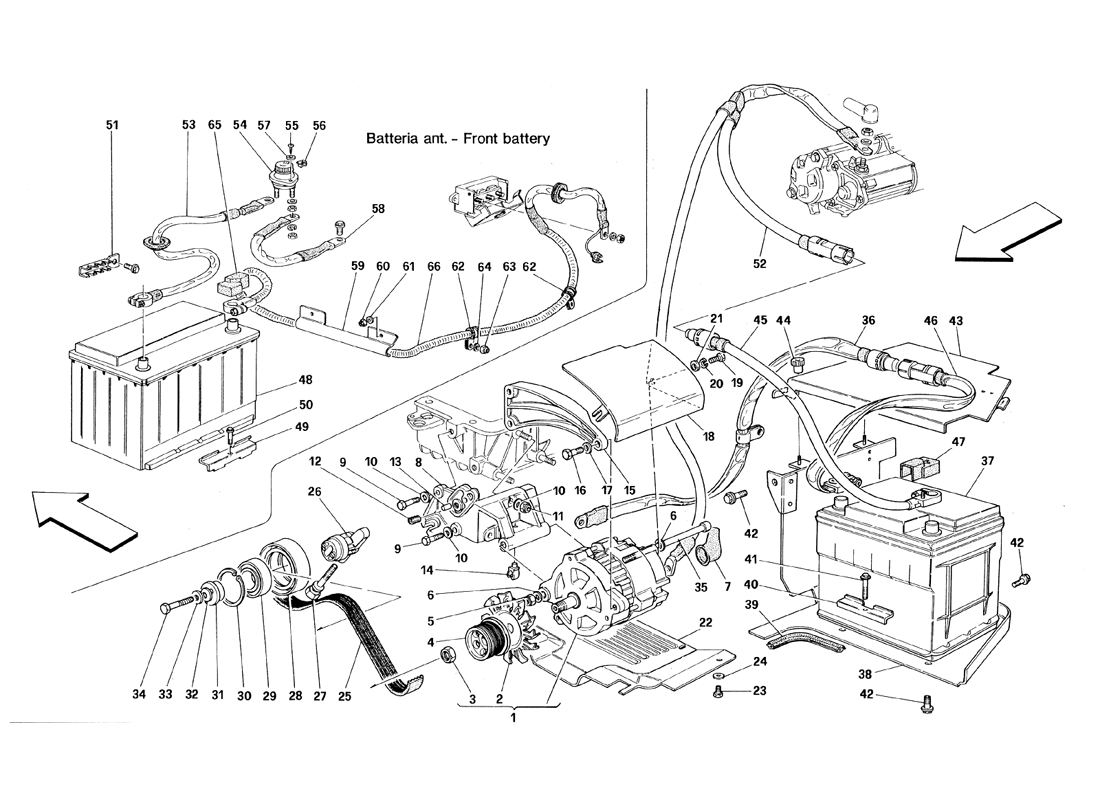

Schematic: Current Generator (Valid Till Engine Nr. 30737) - Battery
Loc
Part
Cond       Price
1
Generator 105 A
139421 (1) Full qty
2
New       Price on Enquiry
143863 (1) Full qty
EL99428n
3
Nut
144255 (1) Full qty
4
GENERATOR CONTROL PULLEY
138525 (1) Full qty
5
New       £ 0.65
102742 (1) Full qty
FS00203n
6
Washer
13550401 (2) Full qty
7
Cap
125329 (1) Full qty
8
Belt tightening and generator …
139295 (1) Full qty
9
Bolt
16043621 (21) Full qty
10
WASHER
12604479 (5) Full qty
11
Nut
16104411 (3) Full qty
12
Threaded insert
13526070 (1) Full qty
13
New       £ 2.66
125717 (1) Full qty
TC14244n
14
Spring
14574287 (1) Full qty
15
UPPER BRACKET
144639 (1) Full qty
16
Screw
16043921 (1) Full qty
17
Washer
11193879 (1) Full qty
18
SHIELD FOR ALTERNATOR PROTECTI…
145410 (1) Full qty
19
Screw
16043321 (1) Full qty
21
Washer
14496501 (1) Full qty
22
ALTERNATOR AND BELTS PROTECTIO…
140846 (1) Full qty
23
Screw
10902024 (2) Full qty
24
Flat Washer
12643701 (2) Full qty
25
GENERATOR CONTROL BELT
138325 (1) Full qty
26
BELT TIGHTENING HUB
139359 (1) Full qty
27
Adjustment screw
139309 (1) Full qty
28
BELT TIGHTENING PULLEY
139321 (1) Full qty
29
Bearing
139368 (1) Full qty
30
Circlip
11061076 (1) Full qty
31
Spacer for bearing
142473 (1) Full qty
32
Washer
11190579 (1) Full qty
33
Washer
138194 (1) Full qty
34
SCREW
15888721 (1) Full qty
35
Screw
130431 (1) Full qty
36
PLAIT FROM CONNECTOR TO ENGINE…
134439 (1) Full qty
37
12V-70AH-420A battery
61933900 (1) Full qty
38
BATTERY PROTECTION
62611300 (1) Full qty
39
GASKET
62611400 (1) Full qty
40
New       Price on Enquiry
62573400 (1) Full qty
EL99430n
41
SCREW
13837411 (1) Full qty
42
Screw
13836271 (5) Full qty
43
BATTERY COVER
62950500 (1) Full qty
44
Nut
62565000 (2) Full qty
45
CABLE FROM BATTERY TO CONNECTO…
144266 (1) Full qty
46
PLAIT FROM BATTERY TO CONNECTO…
134438 (1) Full qty
47
Protection cap for positive cl…
144727 (1) Full qty
51
MASS CABLE CONNECTING BRACKET
61682500 (4) Full qty
52
CABLE FROM GENERATOR TO STARTI…
144267 (1) Full qty
53
BATTERY CUT OUT SWITCH CONNECT…
155067 (1) Full qty
54
New       £ 94.55
139607 (1) Full qty
EL99614n
55
Screw
15688278 (2) Full qty
56
Spring
61067800 (2) Full qty
57
Washer
12637806 (2) Full qty
58
Copper braid
155068 (1) Full qty
59
CABLE PROTECTION
63510500 (1) Full qty
60
Nut
12574211 (2) Full qty
61
Washer
10519401 (2) Full qty
62
Bracket
10441790 (2) Full qty
66
BATTERY TO TERMINAL BOX CONNEC…
151337 (1) Full qty
