Dashboard - Trim And Accessories - Not For Usa From M.Y. 90

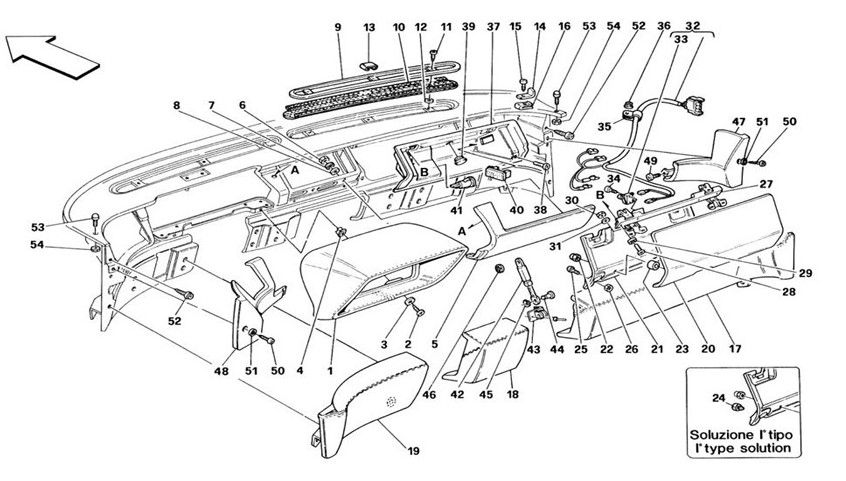

Schematic: Dashboard - Trim And Accessories - Not For Usa From M.Y. 90
Loc
Part
Cond       Price
1
COVERED INSTRUMENTS PANEL
62139900 (1) Full qty
1
UPHOLSTERY
62847900 (1) Full qty
2
Screw
15644178 (2) Full qty
3
WASHER
10519206 (2) Full qty
4
BLOCK
14115980 (2) Full qty
5
CENTRAL INSERT
62136600 (1) Full qty
5
UPHOLSTERY
62136900 (1) Full qty
6
Nut to fixing front and rear s…
15896470 (2) Full qty
7
Washer
12605270 (2) Full qty
8
Washer
14496301 (2) Full qty
9
AIR OUTLET PLATE
62186800 (2) Full qty
10
AIR OUTLET GRID SHIELD
62880800 (2) Full qty
11
SCREW
63291400 (6) Full qty
12
WASHER
63622400 (6) Full qty
13
SCREW-COVER PLATE
62880900 (6) Full qty
14
R.H. ANGLE PIECE SUPPORT
63014000 (1) Full qty
15
Screw
15644101 (1) Full qty
16
Clip
60674700 (1) Full qty
17
LINING
622234.. (1) Full qty
17
R.H. LATERAL LOWER INSERT
622233.. (1) Full qty
18
CENTRAL LOWER INSERT
622228.. (1) Full qty
18
LINING
622229.. (1) Full qty
19
LINING
622239.. (1) Full qty
19
L.H. LATERAL LOWER INSERT
622238.. (1) Full qty
20
COVERED DOOR
62141000 (1) Full qty
20
UPHOLSTERY
62141300 (1) Full qty
21
BY INNER OVERLAP
62141500 (1) Full qty
22
NUT
62990500 (6) Full qty
23
BUSHING
62989700 (2) Full qty
23
BUSHING
62989800 (4) Full qty
24
PLUG
14624587 (2) Full qty
25
STOP PIN
62453200 (2) Full qty
27
LID HINGE
62141600 (1) Full qty
28
SCREW
13274472 (4) Full qty
29
Washer
12637806 (4) Full qty
32
DASHBOARD GLOVE BOX CABLES
145449 (1) Full qty
33
MICRO-SWITCH
141013 (1) Full qty
34
SCREW
15639901 (2) Full qty
35
Clamp ? 8 mm
10418301 (2) Full qty
36
Nut
13831801 (2) Full qty
37
GLOVE BOX INNER INSERT
62138400 (1) Full qty
38
New       £ 3.25
14440927 (2) Full qty
GE35514n
39
PLUG
14507897 (1) Full qty
40
ROOF LIGHT
139517 (1) Full qty
41
SOCKET
139955 (1) Full qty
42
DOOR GAS SPRING
62830600 (1) Full qty
43
Nut
- (1) Full qty
44
PIN
62162800 (1) Full qty
45
SNAP RING
11087576 (1) Full qty
46
CLIP
62831000 (1) Full qty
47
COVERED R.H. LATERAL INSERT
63287400 (1) Full qty
47
UPHOLSTERY
62137300 (1) Full qty
48
UPHOLSTERY
62137700 (1) Full qty
48
COVERED L.H. LATERAL INSERT
63287500 (1) Full qty
49
Screw
20297602 (1) Full qty
51
WASHER
63345700 (2) Full qty
52
SCREW
15785101 (4) Full qty
