Doors - Glass Lifting Device

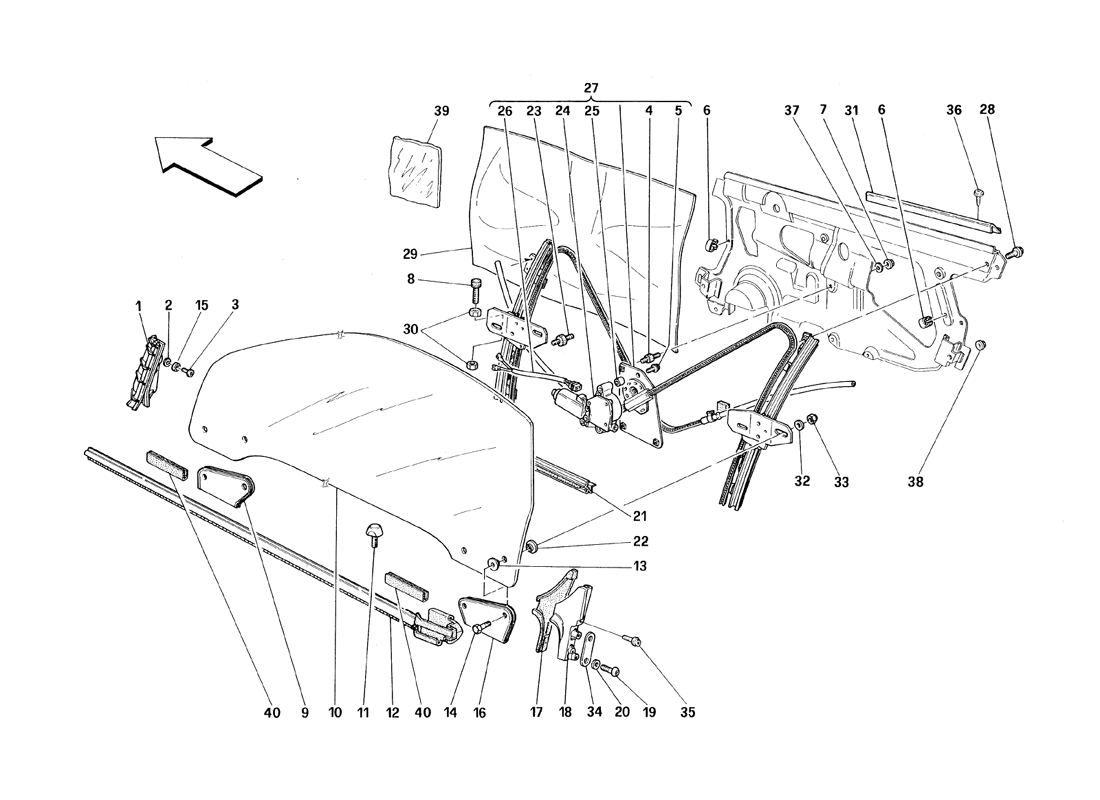

Schematic: Doors - Glass Lifting Device
Loc
Part
Cond       Price
1
L.H. FRONT GLASS GUIDE
62122800 (1) Full qty
1
R.H. FRONT GLASS GUIDE
62122700 (1) Full qty
2
Washer
12646601 (2) Full qty
3
SCREW
13276211 (2) Full qty
4
RUBBER PAD
62008600 (6) Full qty
5
SCREW
63301800 (6) Full qty
6
CLIP
60123502 (1) Full qty
7
Nut
13832101 (6) Full qty
8
STOP BUFFER
62008400 (4) Full qty
9
GLASS FRONT BRACKET
62106100 (2) Full qty
10
L.H. DOOR GLASS
62104400 (1) Full qty
10
R.H. DOOR GLASS
62104300 (1) Full qty
11
LOWER RUBBER PAD
62167300 (2) Full qty
12
Used       Price on Enquiry
62213100 (1) Full qty
GL00295u
12
Used       Price on Enquiry
62213200 (1) Full qty
GL00296u
13
OUTER BUSHING
62106600 (8) Full qty
14
Screw
10902421 (8) Full qty
15
Washer
12605370 (2) Full qty
16
GLASS REAR BRACKET
62106300 (2) Full qty
17
L.H. DOOR REAR ANGULAR GASKET…
62213000 (1) Full qty
17
R.H. DOOR REAR ANGULAR GASKET…
62212900 (1) Full qty
18
L.H. DOOR REAR ANGLE
62212100 (1) Full qty
18
R.H. DOOR REAR ANGLE
62212000 (1) Full qty
19
SCREW
62940900 (4) Full qty
20
WASHER
63314400 (4) Full qty
21
L.H. GLASS INNER GASKET
62153400 (1) Full qty
21
R.H. GLASS INNER GASKET
62153300 (1) Full qty
22
INNER BUSHING
62106700 (8) Full qty
23
PAD
62211900 (4) Full qty
24
L.H. engine
62302200 (1) Full qty
24
New       Price on Enquiry
62302100 (1) Full qty
EL11622n
25
SPACER
63301700 (6) Full qty
26
ELECTRIC WIRING FOR MOTOR
63301900 (2) Full qty
27
COMPLETE L.H. GLASS LIFT
62107300 (1) Full qty
27
New       Price on Enquiry
62107200 (1) Full qty
BW10100n
28
Screw
13836371 (4) Full qty
29
WATER PROTECTION CLOTH
63000900 (2) Full qty
30
Nut
New       Price on Enquiry
15896211 (8) Full qty
CH11996n
31
ANGLE PIECE FOR GLASS SCRAPER
63013600 (4) Full qty
32
Washer
12640601 (16) Full qty
33
Nut
102741 (8) Full qty
34
SMALL PLATE
64246900 (2) Full qty
35
SCREW
13271617 (4) Full qty
36
Screw
15687901 (12) Full qty
37
Washer
10615471 (6) Full qty
39
WATER PROTECTION CLOTH FOR HA…
63994800 (2) Full qty
40
LOWER GASKET
62106500 (4) Full qty
