Current Generator - Starting Motor

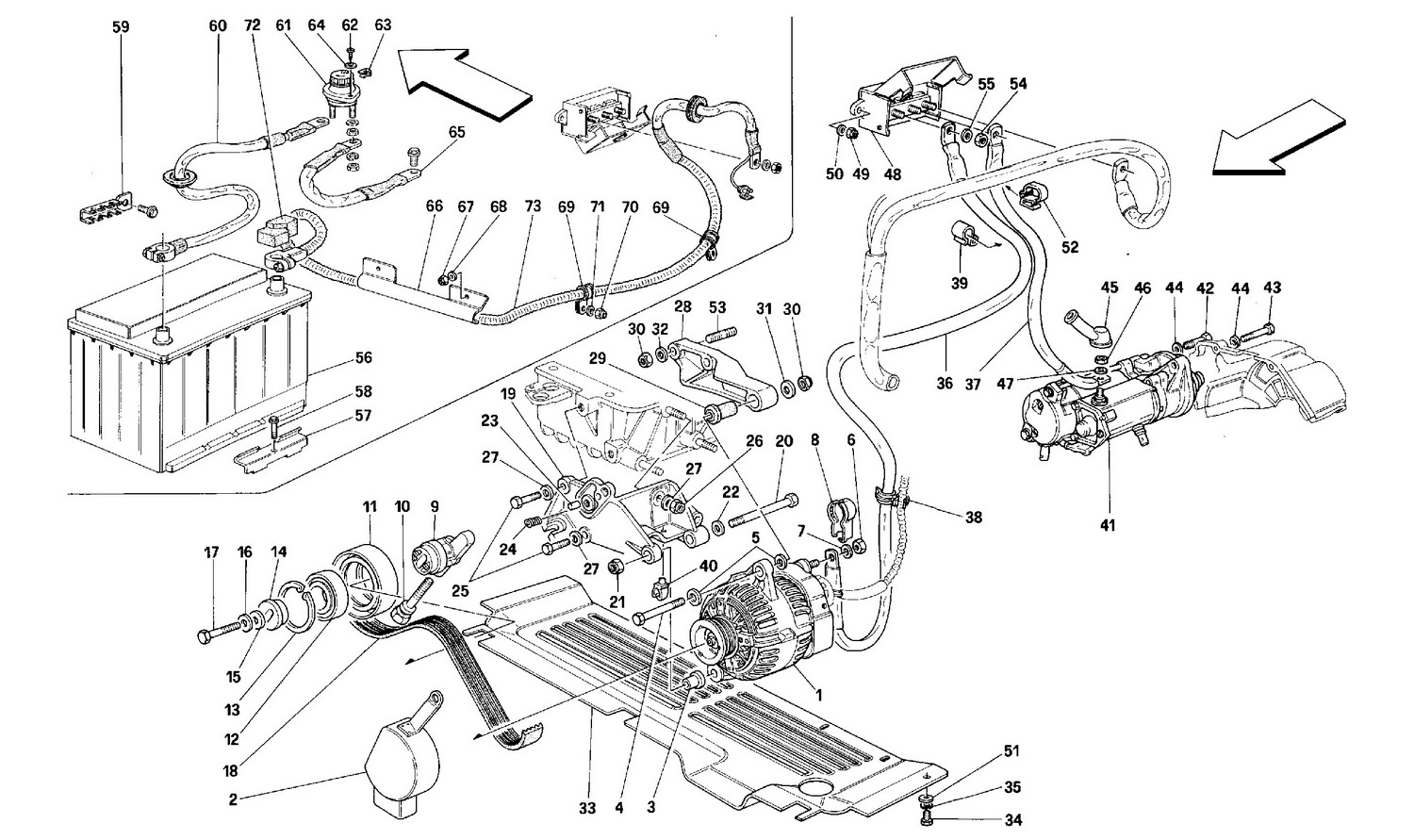

Schematic: Current Generator - Starting Motor
Schematic: Current Generator - Starting Motor
Loc
Part
Cond       Price
1
ALTERNATOR KIT
70000809 (1) Full qty
1
GENERATOR 105 A. NIPPONDENSO
155785 (1) Full qty
2
ALTERNATOR SHIELD
155684 (1) Full qty
3
BUSHING
145358 (1) Full qty
4
SCREW
15888824 (1) Full qty
5
Washer
12642501 (2) Full qty
6
Nut
16102321 (1) Full qty
7
Do Not Use - See GE07667n
12601374 (1) Full qty
7
Rocker Block Wavy Washer
New       £ 0.12
12601374 (1) Full qty
CH11905n
8
PROTECTIVE CAP
154803 (1) Full qty
9
BELT TIGHTENING HUB
139359 (1) Full qty
10
Adjustment screw
139309 (1) Full qty
11
BELT TIGHTENING PULLEY
139321 (1) Full qty
12
Drive Belt Tensioner Bearing
New       Price on Enquiry
177436 (1) Full qty
EL99468n
13
Circlip
11061076 (1) Full qty
14
Spacer for bearing
142473 (1) Full qty
15
Washer
11190579 (1) Full qty
16
Washer
138194 (1) Full qty
17
SCREW
15888721 (1) Full qty
18
GENERATOR CONTROL BELT
156239 (1) Full qty
18
Drive Belt 5k760 355/360
New       £ 15.18
199830 (1) Full qty
GE00028n
18
Drive Belt 5pk 779
New       Price on Enquiry
199828 (1) Full qty
GE00208n
19
LOWER SUPPORT
145357 (1) Full qty
20
Screw
114818 (1) Full qty
21
Nyloc Nut M10 x1.25x10
New       £ 0.65
102742 (1) Full qty
FS00203n
22
WASHER
12641024 (1) Full qty
23
Dowel
New       £ 2.66
125717 (1) Full qty
TC14244n
24
Threaded insert
13526070 (1) Full qty
25
Bolt
16043621 (2) Full qty
26
Nut
16104411 (3) Full qty
27
WASHER
12604479 (5) Full qty
28
UPPER BRACKET
149627 (1) Full qty
29
Estendblock on front lower sup…
137768 (1) Full qty
30
Nyloc Nut M10 x1.25x10
New       £ 0.65
102742 (3) Full qty
FS00203n
31
Washer
12626221 (1) Full qty
32
Washer
12638601 (2) Full qty
33
ALTERNATOR AND BELTS PROTECTIO…
156330 (1) Full qty
34
Screw
10902024 (2) Full qty
35
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
36
ALTERNATOR TERMINAL BOX CONNEC…
153952 (1) Full qty
37
STARTING MOTOR TERMINAL BOX CO…
153953 (1) Full qty
38
Spring
139966 (2) Full qty
39
CLIP
152245 (1) Full qty
40
Spring
14574287 (1) Full qty
41
Starting motor (silver colour)…
151852 (1) Full qty
42
Screw
16044221 (2) Full qty
43
Screw
16044721 (1) Full qty
44
Do Not Use - See GE07667n
12601374 (3) Full qty
44
Rocker Block Wavy Washer
New       £ 0.12
12601374 (3) Full qty
CH11905n
45
Cap
124683 (1) Full qty
46
NUT
147985 (1) Full qty
47
WASHER
12625221 (1) Full qty
48
TERMINAL BLOCK
170114 (1) Full qty
49
Nut securing batt. disconn. sw…
12574011 (2) Full qty
50
Washer
10519201 (2) Full qty
51
Flat Washer
12643701 (2) Full qty
52
CLIP
140798 (1) Full qty
53
Stud
13449721 (2) Full qty
54
NUT
147985 (3) Full qty
55
Washer
10519624 (3) Full qty
56
BATTERY 12V-70AH 400A
157496 (1) Full qty
56
12V-70AH-420A battery
61933900 (1) Full qty
57
Battery Hold Down Braket (early 348)
New       Price on Enquiry
62573400 (1) Full qty
EL99430n
58
SCREW
13837411 (1) Full qty
59
MASS CABLE CONNECTING BRACKET
61682500 (4) Full qty
60
BATTERY CUT OUT SWITCH CONNECT…
155067 (1) Full qty
61
Battery Cut off Switch AFTERMARKET
New       £ 94.55
139607 (1) Full qty
EL99614n
62
Screw
15688278 (2) Full qty
63
Spring
61067800 (2) Full qty
64
Washer
12637806 (2) Full qty
65
Copper braid
155068 (1) Full qty
66
CABLE PROTECTION
63510500 (1) Full qty
67
Nut
12574211 (2) Full qty
68
Washer
10519401 (2) Full qty
69
Bracket
10441790 (2) Full qty
70
Nut
12574211 (2) Full qty
71
Washer
10519401 (2) Full qty
72
Protection cap for positive cl…
144727 (1) Full qty
73
BATTERY TO TERMINAL BOX CONNEC…
151337 (1) Full qty
