Clutch Release Control -Not For Gd-

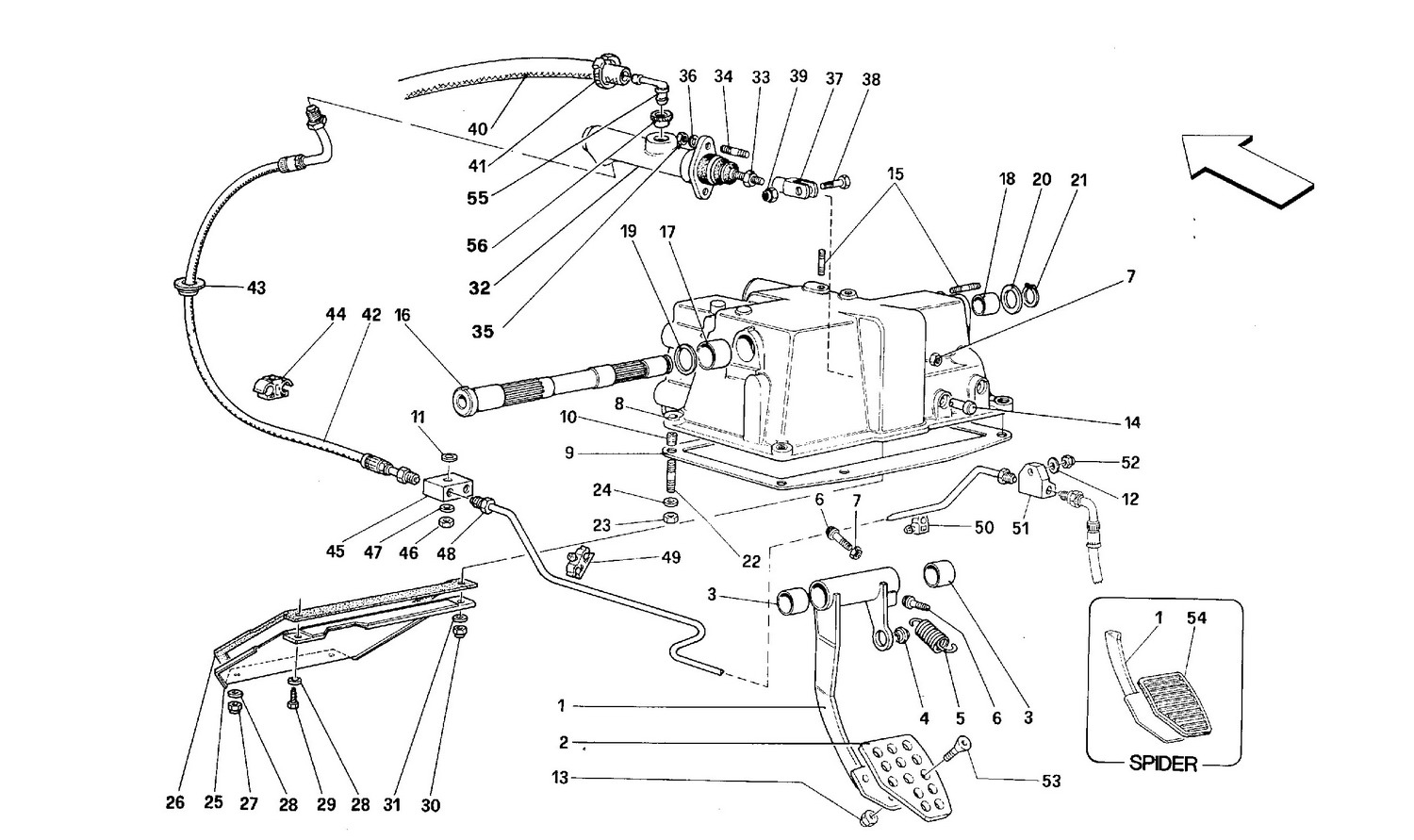

Schematic: Clutch Release Control -Not For Gd-
Loc
Part
Cond       Price
1
CLUTCH PEDAL
157268 (1) Full qty
1
CLUTCH PEDAL
149293 (1) Full qty
2
PEDAL SLAB
157273 (1) Full qty
3
Bush
103163 (2) Full qty
4
Ball joint
109407 (1) Full qty
5
Clutch spring short Daytona
101305 (1) Full qty
6
Clutch adjustment cap
144011 (2) Full qty
7
New       Price on Enquiry
16102311 (2) Full qty
BS00703n
8
Nut
- (1) Full qty
9
Gasket
129615 (1) Full qty
10
Heli-coil
13525770 (2) Full qty
11
SPACER
143041 (1) Full qty
12
Washer
12639701 (1) Full qty
13
Nut
14058411 (2) Full qty
14
Spring anchor pin
129612 (1) Full qty
15
Stud
11500121 (4) Full qty
16
Pin
129613 (1) Full qty
17
Bush
101314 (1) Full qty
18
Bush
112153 (1) Full qty
19
Washer
112125 (1) Full qty
20
Shim 1,0 mm.
112128 (1) Full qty
20
Shim 1,3 mm.
112131 (1) Full qty
20
Shim 1,1 mm.
112129 (1) Full qty
20
Shim 0,9 mm.
112127 (1) Full qty
20
Shim 1,2 mm.
112130 (1) Full qty
21
Spring ring
11066676 (1) Full qty
22
Stud
13516821 (4) Full qty
23
Nut
16104111 (4) Full qty
24
WASHER
14499401 (4) Full qty
25
PEDAL SUPPORT PROTECTION
62877200 (1) Full qty
26
GASKET
62694400 (1) Full qty
27
Nut
12574211 (2) Full qty
28
Washer
12646601 (3) Full qty
29
Screw
15925601 (1) Full qty
30
Nut
16104111 (1) Full qty
31
WASHER
14499401 (1) Full qty
32
Clutch Master Cylinder
175211 (1) Full qty
33
New       Price on Enquiry
16102311 (1) Full qty
BS00703n
34
Stud
13516821 (2) Full qty
35
Nut
133215 (2) Full qty
36
Washer
12638501 (2) Full qty
37
Fork
10248271 (1) Full qty
38
Screw
130926 (1) Full qty
39
Nut
16104411 (1) Full qty
40
PIPE FROM CLUTCH PUMP TO TANK
151845 (1) Full qty
41
Clamp
12179190 (2) Full qty
42
HOSE
140669 (1) Full qty
43
Cable grommet
105369 (1) Full qty
44
CLIP
141699 (1) Full qty
45
New       £ 59.73
139375 (1) Full qty
BS00865n
46
Nut
12575411 (1) Full qty
47
Washer
12639701 (1) Full qty
48
INTERMEDIATE TUBE
140666 (1) Full qty
49
CLIP
141522 (9) Full qty
50
CLIP
141521 (2) Full qty
51
Rear union
139471 (1) Full qty
52
Nut
12575411 (1) Full qty
53
New       £ 0.31
14441324 (2) Full qty
PB14047n
54
PEDAL SLAB
149295 (1) Full qty
55
New       Price on Enquiry
184497 (1) Full qty
BS00624n
56
New       Price on Enquiry
175189 (1) Full qty
BS00614n
56
New       Price on Enquiry
175189 (1) Full qty
BS00881n
