Exhaust System -Valid For Ch And Aus-

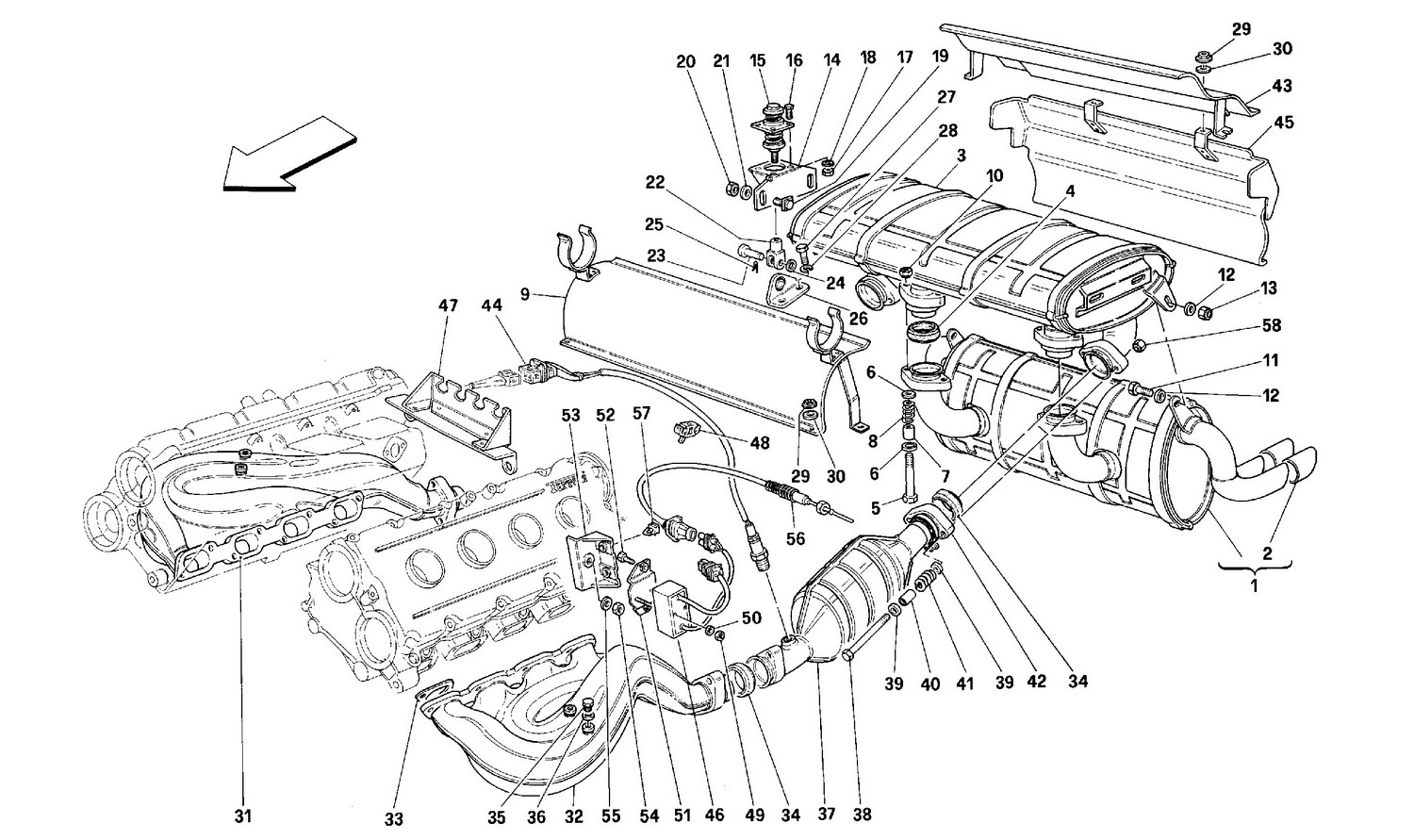

Schematic: Exhaust System -Valid For Ch And Aus-
Loc
Part
Cond       Price
1
STAINLESS STEEL EXHAUST
157351S (1) Full qty
1
New       £ 2383.70
MC2360/8 (1) Full qty
EX10546n
2
TERMINAL COVER
136894 (4) Full qty
3
New       £ 2383.70
MC2360/8 (1) Full qty
EX10546n
4
Exhaust Flange Fire Ring
154984 (2) Full qty
5
Screw
137431 (4) Full qty
6
Washer
112761 (8) Full qty
7
New       £ 3.29
114749 (4) Full qty
EX10751n
8
Exhaust Clamp Spring 246+
111743 (4) Full qty
9
EXHAUST PROTECTION PANEL
62663300 (1) Full qty
10
New       £ 9.58
114748 (4) Full qty
EX10850n
11
Screw
16043421 (2) Full qty
12
Washer
112761 (4) Full qty
13
New       £ 9.58
114748 (2) Full qty
EX10850n
14
BRACKET
136877 (2) Full qty
15
Pad
139180 (2) Full qty
16
Screw
10977624 (8) Full qty
17
Nut to fixing front and rear s…
15896470 (8) Full qty
18
Washer
127493 (8) Full qty
19
SCREW
137534 (4) Full qty
20
New       £ 9.58
114748 (4) Full qty
EX10850n
21
Washer
112761 (4) Full qty
22
Fork
10007871 (2) Full qty
23
Pin
10050811 (2) Full qty
24
Washer
10519624 (2) Full qty
25
Split pin
10734301 (2) Full qty
26
SMALL PLATE
145741 (2) Full qty
27
Screw
16043221 (4) Full qty
28
Wavy Lock Washer 8mm
127496 (4) Full qty
29
Nut
14058411 (9) Full qty
30
Washer
12644421 (9) Full qty
31
New       £ 2178.00
136275 (1) Full qty
EX10549n
31
New       £ 2178.00
136275 (1) Full qty
EX10549n
32
New       £ 2178.00
136276 (1) Full qty
EX10550n
32
New       £ 2178.00
136276 (1) Full qty
EX10550n
33
New       £ 21.78
138076 (8) Full qty
EX10246n
34
Exhaust Flange Fire Ring
154984 (4) Full qty
35
New       Price on Enquiry
110860 (8) Full qty
EX10414n
36
New       Price on Enquiry
10298460 (8) Full qty
EX10416n
37
New       £ 2662.00
160506 (2) Full qty
EX10551n
37
New       £ 2662.00
160506 (2) Full qty
EX10551n
37
New       £ 1331.00
134001 (1) Full qty
EX10552n
37
New       £ 1331.00
134002 (1) Full qty
EX10553n
38
Screw
137431 (8) Full qty
39
Washer
112761 (16) Full qty
40
New       £ 3.29
114749 (8) Full qty
EX10751n
41
Exhaust Clamp Spring 246+
111743 (8) Full qty
42
New       Price on Enquiry
141874 (2) Full qty
EX10402n
43
UPPER REAR SHIELD
63006500 (1) Full qty
44
New       Price on Enquiry
146650 (2) Full qty
EX10392n
45
BUMPER PROTECTION SHIELD
63547900 (1) Full qty
46
New       £ 544.50
142581 (2) Full qty
EX10432n
47
BRACKET
145487 (1) Full qty
48
New       £ 1.60
145473 (2) Full qty
BW99293n
49
Nut securing batt. disconn. sw…
12574011 (4) Full qty
50
Washer
14496201 (4) Full qty
51
BRACKET FOR CONTROL UNIT FIXIN…
62844200 (2) Full qty
52
Screw
10444621 (4) Full qty
53
SUPPORT
143851 (2) Full qty
54
Nut
12575411 (2) Full qty
55
Washer
12639701 (2) Full qty
56
Thermocouple
144270 (2) Full qty
56
New       Price on Enquiry
156547 (2) Full qty
EL99658n
57
CLIP
144036 (4) Full qty
58
New       £ 9.58
114748 (8) Full qty
EX10850n
