Evaporator Unit And Passengers Compartment Aerating

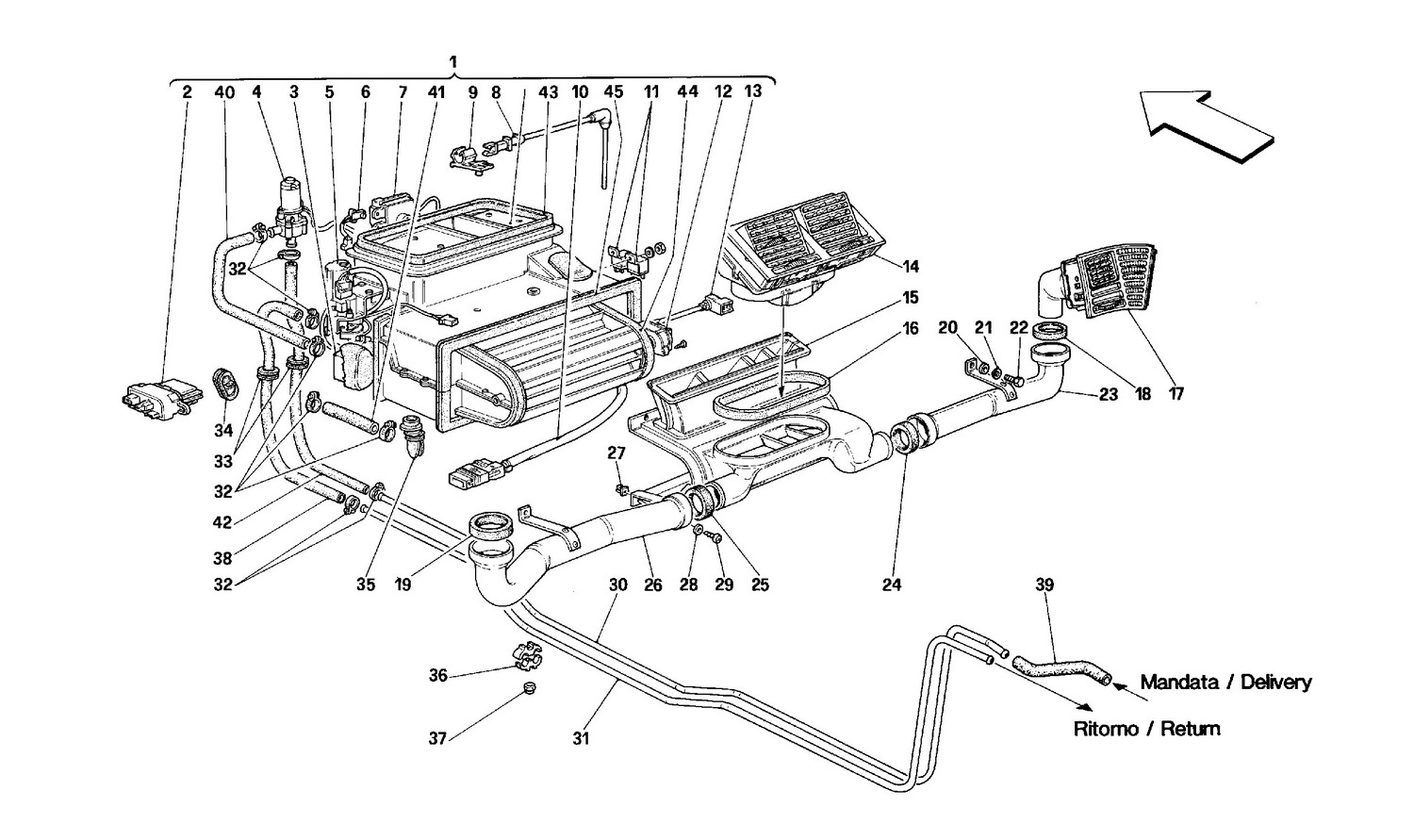

Schematic: Evaporator Unit And Passengers Compartment Aerating
Schematic: Evaporator Unit And Passengers Compartment Aerating
Loc
Part
Cond       Price
1
COMPLETE EVAPORATOR SET
63000500 (1) Full qty
1
COMPLETE EVAPORATOR SET
62417700 (1) Full qty
2
POWER UNIT
63307200 (1) Full qty
3
Expansion valve
154276 (1) Full qty
4
Water pump Kit
New       Price on Enquiry
70000900 (1) Full qty
AC00448n
5
Heater Valve Motor F355
New       £ 522.50
63306400 (1) Full qty
AC00534n
6
AIR INTAKE SENSOR
63306900 (1) Full qty
7
Actuator For Evaporator Unit
63306700 (1) Full qty
8
Evaporator Temperature Sensor 348/F355
New       £ 495.00
62341000 (1) Full qty
EL99830n
9
SENSOR RETAINING CLIP
63306600 (1) Full qty
10
AIR CONDITIONING CABLES ASSEMB…
138335 (1) Full qty
11
MICRORELAY
63306800 (2) Full qty
12
Timing Actuator
New       Price on Enquiry
63307100 (1) Full qty
FT00004n
13
TREATED AIR SENSOR
63307000 (1) Full qty
14
CENTRAL OPENING
64320000 (1) Full qty
15
AIR DIFFUSER
62186000 (1) Full qty
15
AIR DIFFUSER
62189500 (1) Full qty
16
GASKET
62188100 (1) Full qty
17
L.H. LATERAL AIR OUTLET
62620800 (1) Full qty
17
R.H. LATERAL AIR OUTLET
62620700 (1) Full qty
18
R.H. PIPE/DIFFUSOR GASKET
62188200 (1) Full qty
19
GASKET
62188300 (1) Full qty
20
Spring washer
12644401 (2) Full qty
21
Washer
106850 (2) Full qty
22
Screw
10902211 (2) Full qty
22
Screw
10902011 (2) Full qty
23
R.H. AIR DELIVERY TUBE
62189600 (1) Full qty
23
R.H. AIR DELIVERY TUBE
62186100 (1) Full qty
24
R.H. TUBE /AIR DIFFUSER GASKE…
62679200 (1) Full qty
25
L.H. TUBE/AIR DIFFUSOR GASKET…
62679000 (1) Full qty
26
L.H. AIR DELIVERY TUBE
62186200 (1) Full qty
26
L.H. AIR DELIVERY TUBE
62189700 (1) Full qty
27
Block to fix. plate and plate …
14201980 (6) Full qty
28
Washer
12638101 (6) Full qty
29
Screw
15688101 (6) Full qty
30
DELIVERY PIPE UNDER THE FLOOR
62659200 (1) Full qty
31
RETURN PIPE UNDER THE FLOOR
62659500 (1) Full qty
32
Clamp
13000190 (8) Full qty
33
CABLE GROMMET
10398780 (2) Full qty
34
Gasket
60679700 (2) Full qty
35
BELLOWS FOR CONDENSATE VENT
62656000 (1) Full qty
36
CLIP
62658800 (10) Full qty
37
Nut
12574211 (5) Full qty
38
RUBBER PIPE TO COCK
62659400 (1) Full qty
38
RETURN RUBBER PIPE
62851000 (1) Full qty
39
Rubber Hose 348
New       Price on Enquiry
62659100 (1) Full qty
AC00200n
40
PIPE FROM PUMP TO EVAPORATOR
63306300 (1) Full qty
41
PIPE FROM EVAPORATOR TO COCK
63311700 (1) Full qty
42
DELIVERY RUBBER PIPE
62659300 (1) Full qty
42
Pipe from engine to aluminium …
61830000 (1) Full qty
43
UPPER GASKET
62928000 (1) Full qty
44
TAMBOUR PROFILE GASKET
62928100 (2) Full qty
45
TAMBOUR SEAT GASKET
62928200 (1) Full qty
