Doors - Opening Control And Hinges

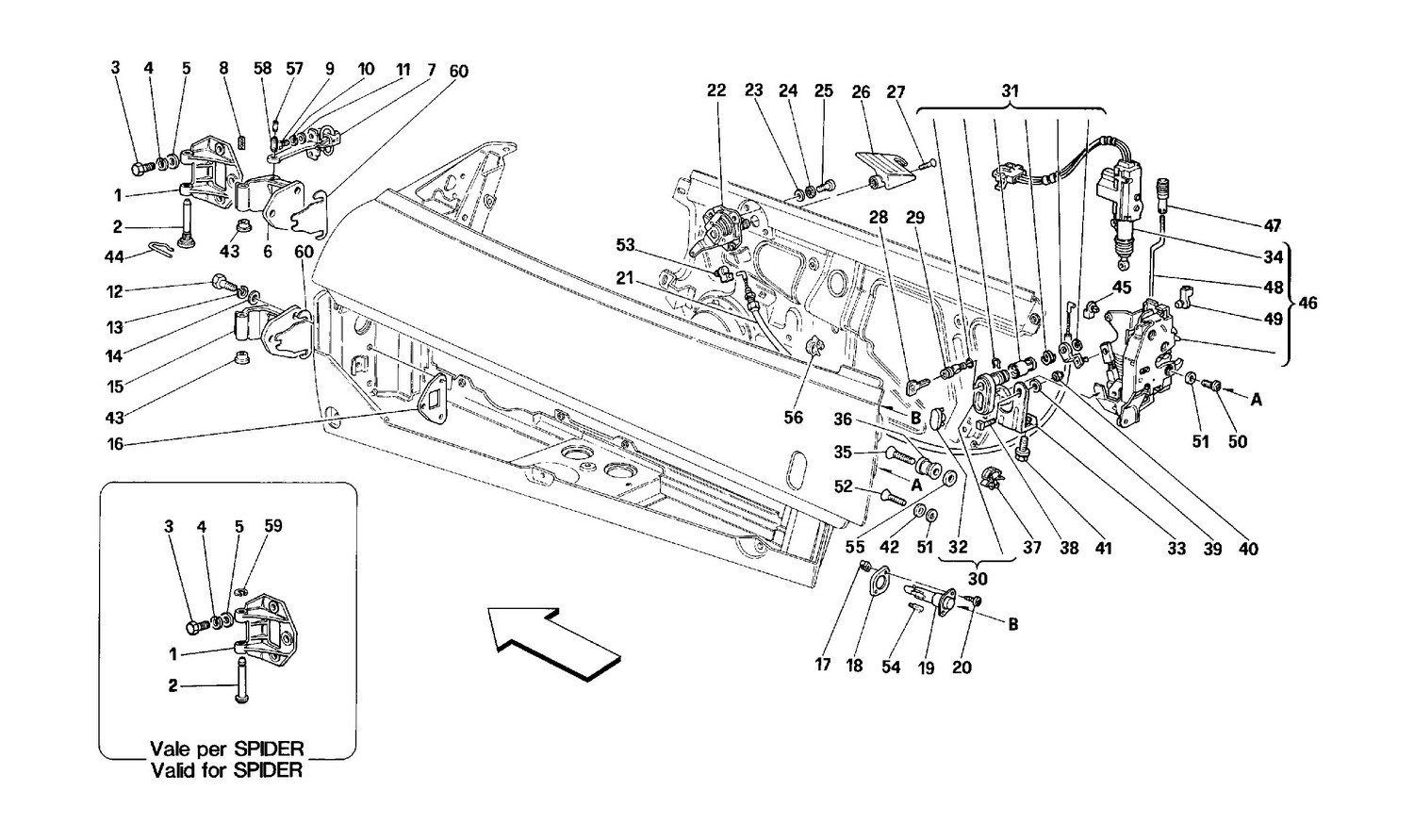

Schematic: Doors - Opening Control And Hinges
Loc
Part
Cond       Price
1
FIXED HINGE
62063600 (4) Full qty
1
FIXED HINGE
63396000 (4) Full qty
2
PIN
63345300 (4) Full qty
2
PIN
62054100 (4) Full qty
3
Screw
16135921 (12) Full qty
4
Wavy Lock Washer 8mm
127496 (12) Full qty
5
Washer
10519624 (12) Full qty
6
UPPER MOBILE HINGE
63972500 (2) Full qty
6
UPPER MOBILE HINGE
62063500 (2) Full qty
6
UPPER MOBILE HINGE
63396100 (2) Full qty
6
UPPER MOBILE HINGE
63972400 (2) Full qty
7
TIE ROD FOR DOOR STOP
62055400 (2) Full qty
7
New       £ 82.50
63942000 (2) Full qty
BW99507n
8
PIN
65859300 (2) Full qty
9
SCREW
63942300 (4) Full qty
9
SCREW
16134321 (4) Full qty
10
Washer
127493 (4) Full qty
10
Clutch Bolt Wavy Washer 550/57…
127494 (4) Full qty
11
Spring washer
12644401 (4) Full qty
11
Washer
12638101 (4) Full qty
12
Screw
16135921 (12) Full qty
13
Wavy Lock Washer 8mm
127496 (12) Full qty
14
Washer
10519624 (12) Full qty
15
LOWER MOBILE HINGE
63396200 (2) Full qty
15
LOWER MOBILE HINGE
62172600 (2) Full qty
16
PLATE FOR MOVABLE HINGE
62101100 (4) Full qty
17
BLOCK
14115580 (4) Full qty
18
GASKET
140576 (2) Full qty
19
Open
60788100 (2) Full qty
20
SCREW
15901470 (4) Full qty
21
DOOR OPENING CABLE
64314100 (2) Full qty
22
L.H. INNER DEVICE FOR DOOR OPE…
62584400 (1) Full qty
22
R. H. INNER DOOR OPENING DEVIC…
62171600 (1) Full qty
23
Washer
60711900 (6) Full qty
24
Washer
149951 (6) Full qty
25
SCREW
14071911 (6) Full qty
26
L.H. INNER DOOR HANDLE FOR OPE…
62158500 (1) Full qty
26
R. H. INNER DOOR HANDLE FOR OP…
62158400 (1) Full qty
27
New       £ 3.25
13309211 (2) Full qty
NT35377n
28
New       Price on Enquiry
95401152 (2) Full qty
NT10106n
29
Nut
- (2) Full qty
30
BODY COMPLETE WITH R.H. DOOR O…
62108710 (1) Full qty
30
KIT FOR L.H. PUSH BUTTON
62108810 (1) Full qty
31
KIT FOR L.H. PUSH BUTTON
62108810 (1) Full qty
31
KIT FOR R.H. PUSH BUTTON
70000654 (1) Full qty
32
DOOR OPENING PUSH BUTTON
62584200 (2) Full qty
33
BRACKET FOR PUSH BUTTON FASTEN…
62194500 (2) Full qty
33
BRACKET FOR PUSH BUTTON FASTEN…
62171000 (2) Full qty
34
DOORS LOCKING/RELEASING ACTU…
62832300 (1) Full qty
35
SCREW
62858700 (2) Full qty
36
STRIKER
63364100 (2) Full qty
37
Spring
61130600 (8) Full qty
38
SCREW
62171200 (4) Full qty
39
Washer
12646601 (4) Full qty
40
Nyloc Nut 6 x 1 x 7.6mm
102948 (4) Full qty
41
Screw
13836371 (4) Full qty
42
WASHER
12647777 (2) Full qty
43
BUSHING
62825300 (8) Full qty
44
CLIP
62116700 (4) Full qty
45
Spring
40063208 (2) Full qty
46
R.H. DOOR LOCK
63618800 (1) Full qty
46
R.H. DOOR LOCK
62109300 (1) Full qty
46
L.H. DOOR LOCK
63618900 (1) Full qty
46
L.H. DOOR LOCK
62109400 (1) Full qty
47
KNOB FOR SAFETY ROD
62800900 (2) Full qty
48
SAFETY LOCK ROD FOR L.H. DOOR
62109200 (1) Full qty
48
SAFETY LOCK ROD FOR L.H. DOOR
63617700 (1) Full qty
48
SAFETY LOCK ROD FOR R.H. DOOR
62109100 (1) Full qty
48
SAFETY LOCK ROD FOR R.H. DOOR
63617600 (1) Full qty
49
ROD CLIP
63280600 (2) Full qty
49
ROD CLIP
63695300 (2) Full qty
50
SCREW -M6 X 30-
62941000 (6) Full qty
51
WASHER
63314400 (8) Full qty
52
SCREW
62940900 (2) Full qty
53
CLIP
63291200 (2) Full qty
54
Lamp
101525 (2) Full qty
55
Spring washer
63285300 (2) Full qty
56
CLIP
14569480 (4) Full qty
57
INNER PIN
63942200 (2) Full qty
58
OUTER PIN
63942100 (2) Full qty
59
Circlip
11087974 (4) Full qty
60
SHIM FOR UPPER AND LOWER MOBIL…
63963304 (4) Full qty
60
SHIM FOR UPPER AND LOWER MOBIL…
63617500 (4) Full qty
60
SHIM FOR UPPER AND LOWER MOBIL…
63618700 (4) Full qty
