Hand-Brake Control

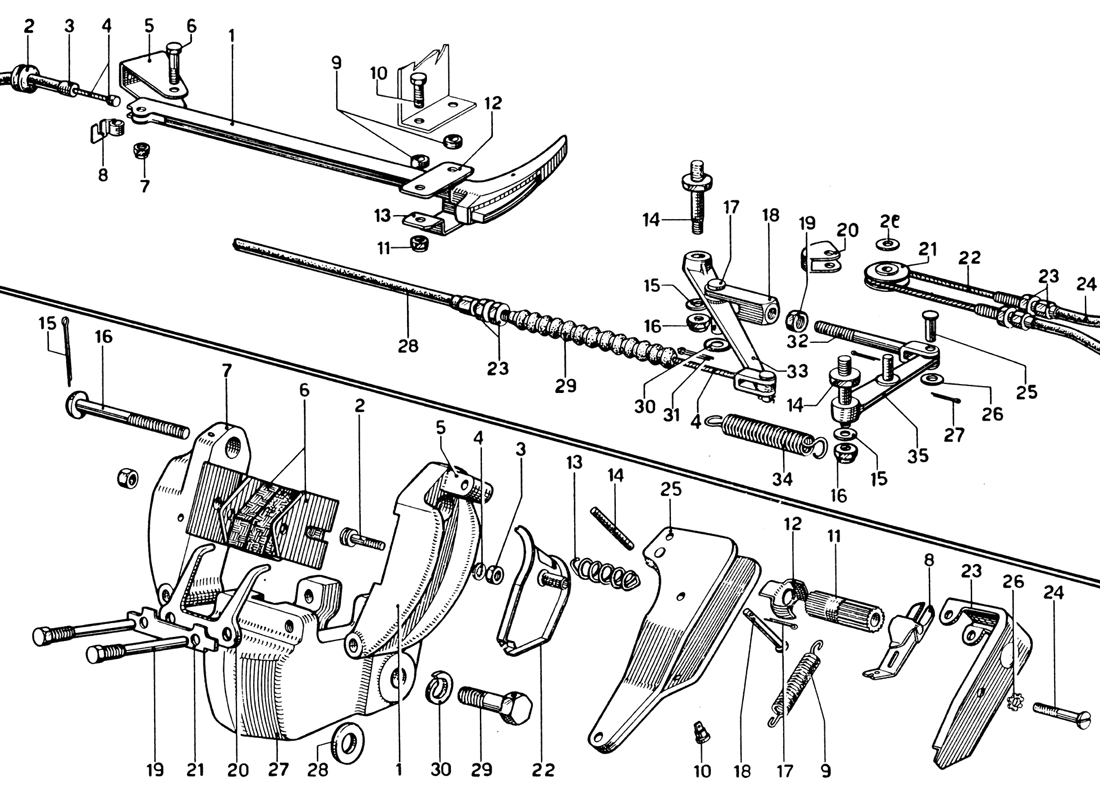

Schematic: Hand-Brake Control
Loc
Part
Cond       Price
1
COMPLETE FRENO A MANO
1229 (1) Full qty
1
INTERIOR DOOR PAD
60146 (2) Full qty
1
SUPPORT
8009B (1) Full qty
1
SUPPORT
8009A (1) Full qty
1
SUPPORT
48000B (1) Full qty
1
SUPPORT
48000A (1) Full qty
1
TOGETHER WITH HANDLE HAND BRAK…
69146 / 64050209 (1) Full qty
2
CABLE GROMMET
95020 (1) Full qty
2
BOLT
4124 (4) Full qty
3
RING FOR HOUSING
94886 (4) Full qty
3
NUT
6050 (4) Full qty
4
BOWDEN CABLE ASSEMBLY FOR CONT…
680241 (1) Full qty
4
WASHER
61011F (4) Full qty
5
OFFICE FOR STUD
8156 (1) Full qty
5
SUPPORT
400296 (1) Full qty
6
Nut
- (2) Full qty
6
BOLT
6x28-UNI 185 (1) Full qty
6
PASTIGLIA FULL DESTRA
8073R (2) Full qty
7
EXTERIOR DOOR PADS
4572 (2) Full qty
7
Cam/Chain Cover Nuts
101239 (1) Full qty
7
Cam/Chain Cover Nuts
101239 (1) Full qty
7
New       £ 7.21
101239 (1) Full qty
CH11808n
8
ARM FULL COMMAND
7995 (2) Full qty
8
SUPPORT
680202 (1) Full qty
9
SPACER
20181 (2) Full qty
9
SPRING
7367 (2) Full qty
10
STOP SPRING
7385 (2) Full qty
10
BOLT
6x14-UNI 187 (2) Full qty
11
NUT
7667 (2) Full qty
11
Cam/Chain Cover Nuts
101239 (2) Full qty
11
Cam/Chain Cover Nuts
101239 (2) Full qty
11
New       £ 7.21
101239 (2) Full qty
CH11808n
12
SPRING
7588 (2) Full qty
12
PLATE
400209 (1) Full qty
13
SPRING
8190 (2) Full qty
13
SUPPORT
400210 (1) Full qty
14
STOP SPRING
8157 (2) Full qty
14
PIVOT
680240 (2) Full qty
15
SPLIT PIN
615BJ (2) Full qty
15
WASHER
8R2 (2) Full qty
16
NUT
208MB (2) Full qty
16
BOLT
8425 (2) Full qty
17
PIVOT
680236 (1) Full qty
17
SPLIT PIN
6154E (2) Full qty
18
FORK
680349 (1) Full qty
18
PIVOT
8198 (2) Full qty
19
BOLT
4190 (4) Full qty
19
New       Price on Enquiry
94666 (1) Full qty
GE00043n
20
PLATE RETURN
46352 (2) Full qty
20
New       Price on Enquiry
69395 (1) Full qty
BS00480n
21
PLATE
4225 (2) Full qty
21
New       Price on Enquiry
69395 (1) Full qty
BS00480n
22
CAVO BOWDEN 0 MM. 4 X MM. 3800…
94885 (1) Full qty
22
New       £ 86.90
8159 (2) Full qty
BS00493n
23
New       £ 137.50
7950 (2) Full qty
BS00491n
23
New       £ 50.77
69296 (3) Full qty
GE00017n
24
SCREW
6015G (2) Full qty
24
Handbrake Cable Handle To Spli…
92939 (2) Full qty
24
Handbrake Cable Handle To Spli…
92939 (2) Full qty
25
PIVOT
94626 (4) Full qty
25
New       £ 2.74
7856 (2) Full qty
BS00489n
26
WASHER
6100D (2) Full qty
26
WASHER
8R2 (4) Full qty
27
SPLIT PIN
C1 (4) Full qty
27
SUPPORT
680267 (1) Full qty
27
SUPPORT
680266 (1) Full qty
28
WASHER
94697 / 0.2-0.3-0.5 (14) Full qty
28
Handbrake Cable Handle To Spli…
92939 (1) Full qty
28
Handbrake Cable Handle To Spli…
92939 (1) Full qty
29
BELLOWS CAP
680238 (1) Full qty
29
BOLT
69485 (8) Full qty
30
WASHER
12R4 (8) Full qty
30
WASHER
10R2 (1) Full qty
31
SPLIT PIN
C1 (1) Full qty
32
TIE ROD
680205 (1) Full qty
33
LEVER
680201 (1) Full qty
33
New       £ 71.48
680206 (1) Full qty
BS00417n
34
SPRING
680237 (1) Full qty
35
COMPLETE CALIPER LEFT
64032462 (1) Full qty
35
TOGETHER WITH REFERENCE TO BRA…
680135 (1) Full qty
35
COMPLETE CALIPER RIGHT
64032463 (1) Full qty
