Carburettor

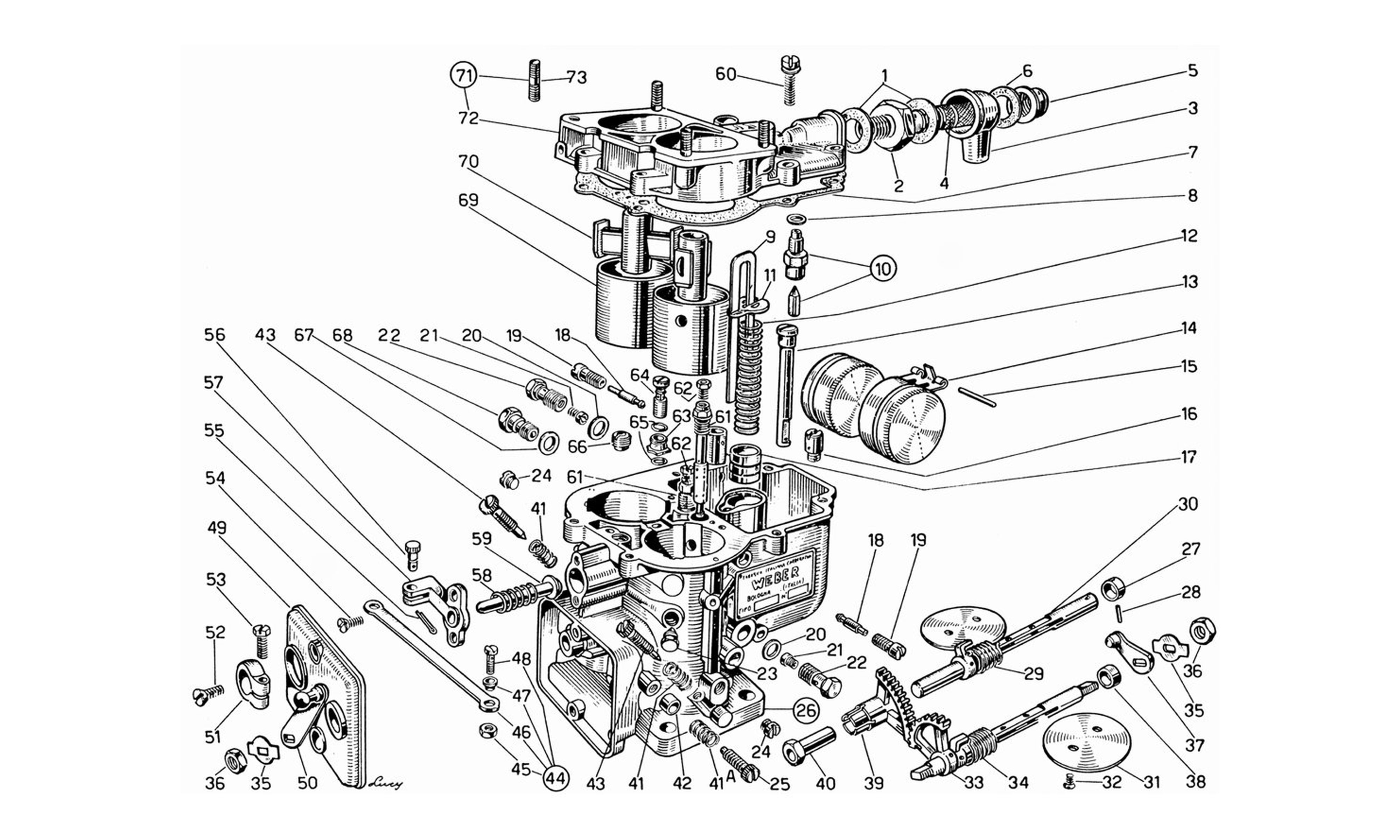

Schematic: Carburettor
Schematic: Carburettor
Loc
Part
Cond       Price
1
GASKET OR SEAL
235 (2) Full qty
1
Carb Banjo Fibre Washer Big
235 (2) Full qty
2
Fuel Rail To Carb.Banjo&Nut
New       £ 103.79
TS597+TS598 (1) Full qty
FU14125n
2
Fuel Rail To Carb.Banjo&Nut (Brass)
New       £ 103.79
TS597+TS598 (1) Full qty
FU14135n
3
FILTER HOUSING
F23 (1) Full qty
4
NUT
TS241A (1) Full qty
5
NUT
TS241A (1) Full qty
6
NUT
TS598 (1) Full qty
7
GASKET
236 (1) Full qty
7
Carb Banjo Fibre Washer Small
236 (1) Full qty
8
GASKET OR SEAL
2436 (1) Full qty
9
GASKET OR SEAL
1975 (1) Full qty
10
ASTA PUMP CONTROL
5343 (1) Full qty
10
Carb Needle Valve 2.00
5343 (1) Full qty
11
NEEDLE VALVE COMPLETE
1660A (1) Full qty
12
PLATE
2903 (1) Full qty
13
SPRING
4456 (1) Full qty
14
LOG START
1381A (1) Full qty
15
PIVOT FASTENING
4108 (1) Full qty
16
PIVOT FASTENING
1829 (1) Full qty
17
SUCTION VALVE
2948A (1) Full qty
18
IDLE JET
2877A (2) Full qty
19
IDLE JET
TS865 (2) Full qty
20
PORT IDLE JET
TS864 (2) Full qty
21
GASKET OR SEAL
2546 (2) Full qty
21
Main Jet
New       £ 3.51
2546 (2) Full qty
FU14097n
22
JET HOME
TS510 (2) Full qty
23
SCREW
TS674 (2) Full qty
24
SCREW
TS625 (2) Full qty
25
SCREW
TS548 (2) Full qty
25
Carb Mixture Screw
TS548 (2) Full qty
26
BODY CARB
NONDIRIC (1) Full qty
27
BUSH
3565 (1) Full qty
28
PIN
2999 (1) Full qty
29
SPRING
3351 (1) Full qty
30
POST LEFT OUT
TS539A (1) Full qty
31
VALVO A FARFA
TS555 (2) Full qty
32
SCREW
767 (4) Full qty
32
Butterfly Screw
New       £ 1.16
767 (4) Full qty
FU00023n
33
RIGHT FULL POST
TS536A (1) Full qty
34
MOLLS RETURN TO POST RIGHT
2911 (1) Full qty
35
WASHER
2464 (2) Full qty
36
NUT
865 (2) Full qty
37
LEVER
TS541A (1) Full qty
38
BUSH
3564 (1) Full qty
39
DENTATO RECORD INDUSTRY.
TS500 (1) Full qty
40
BUSH
1350 (1) Full qty
41
SPRING
38 (2) Full qty
42
SPACER TO SCREW
TS546 (2) Full qty
43
SCREW
864 (2) Full qty
44
LEVER
3554A (1) Full qty
45
_ GIVEN FOR VITE FISS. FILO
364 (1) Full qty
46
Carburettor Choke Arm [DCL]
TS511 (1) Full qty
46
Carburettor Choke Arm [DCL]
TS511 (1) Full qty
47
_BOCCOLA FOR LIVES
375 (1) Full qty
48
_VITE MOUNTING THREAD
374 (1) Full qty
49
COVER
6885 (1) Full qty
50
Carburettor Throttle Arm [DCL …
TS1073A (1) Full qty
50
Carburettor Throttle Arm [DCL …
TS1073A (1) Full qty
51
CLAMP FIXING THE FIELD
4837 (1) Full qty
51
Carburettor Brass Gear Clamp
4837 (1) Full qty
52
SCREW
2288 (2) Full qty
53
SCREW
A1408 (1) Full qty
54
SCREW
336 (2) Full qty
55
SEAL
133 (1) Full qty
56
PIVOT
1585 (1) Full qty
57
COVER
TS501 (1) Full qty
58
SPRING
939 (1) Full qty
58
Carburettor Accelerator Pump S…
939 (1) Full qty
59
START VALVE
936 (1) Full qty
60
SCREW
1187 (6) Full qty
61
TUBE EMULSIFIER
TS534A (2) Full qty
61
F8 Emulsion Tube
New       £ 67.52
TS534A (2) Full qty
FU14285n
62
JET AIR BRAKE
1311 (2) Full qty
63
JET PUMP
TS507 (1) Full qty
63
Carb Pump Valve
TS507 (1) Full qty
64
VALVOLA MANDATORY POMP
TS991A (1) Full qty
65
GASKET OR SEAL
1520 (2) Full qty
66
AIR JET START
512 (1) Full qty
67
GASKET OR SEAL
1339 (1) Full qty
68
JET START
1338 (1) Full qty
69
DISTRIBUTION
TS502 (2) Full qty
70
Aux. Venturui 2.5 DCZ
Used       £ 107.35
5571a (2) Full qty
FU11526u
70
Aux.Venturi 3.5 (40DCL6/40DCZ6 )
New       £ 107.09
5571a (2) Full qty
FU14301n
71
COVER
6884A (1) Full qty
72
COVER
6883A (1) Full qty
73
M5 Carb Top Stud 24mm
G228 (4) Full qty
73
M5 Carb Top Stud 24mm
New       £ 6.14
G228 (4) Full qty
FU14261n
