Heating System

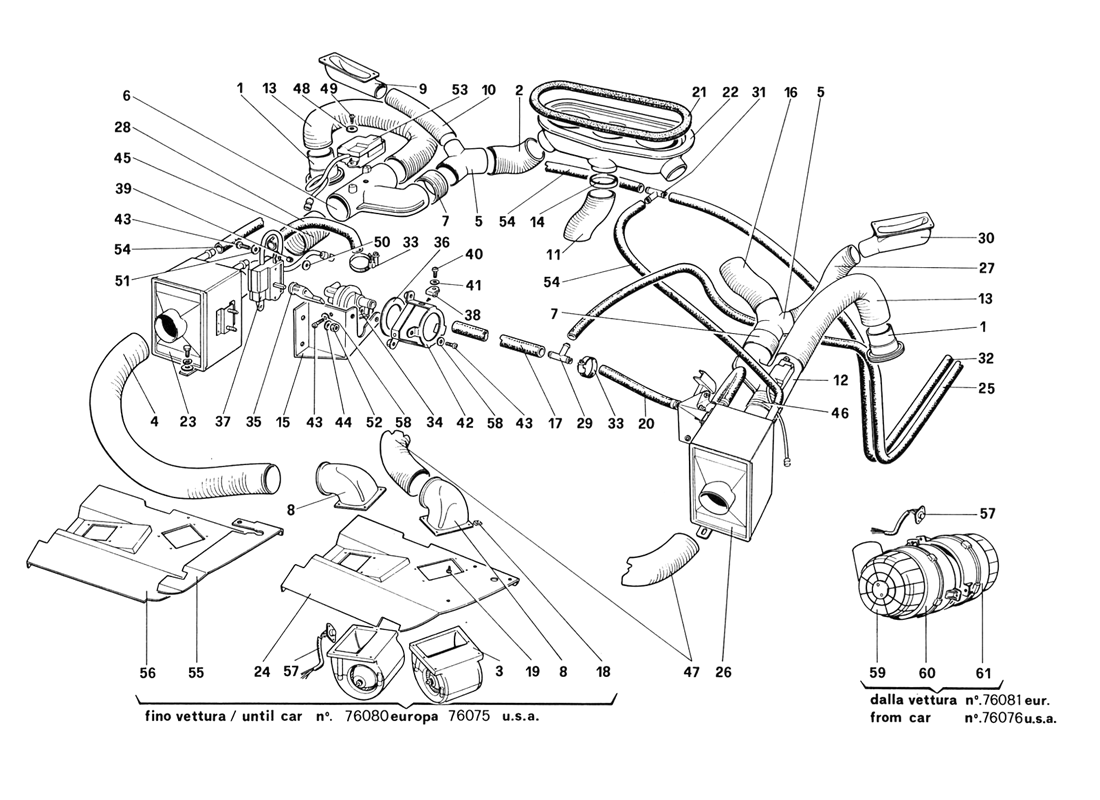

Schematic: Heating System
Schematic: Heating System
Loc
Part
Cond       Price
1
Under air ouiiet
60054400 (2) Full qty
2
Air duct
61790900 (1) Full qty
3
Electric fan
61738700 (2) Full qty
4
R.H. air duct
61790200 (1) Full qty
5
3 way fitting
60153608 (2) Full qty
6
R.H. swithc
61738900 (1) Full qty
7
Air duct
61790800 (2) Full qty
8
Union
61770100 (2) Full qty
9
L.H. air outlet for RHD
60055407 (1) Full qty
9
R.H. air outlet for RHD
60198405 (1) Full qty
10
Air duct
61791100 (1) Full qty
11
Air conditioning duct
61791300 (1) Full qty
12
L.H. switch
61739000 (1) Full qty
13
Air duct
61790600 (2) Full qty
14
Plug
20143202 (1) Full qty
15
Bracket
126323 (2) Full qty
16
Air duct
61791000 (1) Full qty
17
(N) Hose from 3 way to
61853100 (1) Full qty
17
Pipe engine - 3 way
127173 (1) Full qty
17
Hose from 3 way to L.H. water …
61914300 (1) Full qty
18
Spring
60696300 (8) Full qty
19
Screw
15644101 (8) Full qty
20
Hose from cooler to crankcase
121173 (1) Full qty
20
(N) House from 3 way to L.H wa…
116680 (1) Full qty
20
Hose from 3 way to L.H. water …
61914300 (1) Full qty
21
Gasket
50091503 (1) Full qty
22
Air diffusor
20142709 (1) Full qty
23
R.H. heater
61761400 (1) Full qty
24
R.H. covering
61770000 (1) Full qty
24
Support for electro fan
61937000 (1) Full qty
25
(V) Hose motor - 3 way of deli…
127172 (1) Full qty
25
(N) Hose motor - 3 way ot deli…
62492600 (1) Full qty
25
Hose motor - 3 way of delivery…
61957100 (1) Full qty
26
L.H. heater
61761300 (1) Full qty
27
Air duct
61791200 (1) Full qty
28
Hose tap - heater
127168 (2) Full qty
29
3 way
127295 (1) Full qty
30
L.H. air outlet for RHD
60055407 (1) Full qty
30
L.H. air outlet for LHD
60055506 (1) Full qty
31
UNION 3-way
104303 (1) Full qty
32
Hose 3 way - motor
109755 (1) Full qty
33
Clamp
12179590 (16) Full qty
34
Heater Valve 328
New       £ 164.45
126324 (2) Full qty
AC00539n
35
Coupling. motor - water valve
126322 (2) Full qty
36
Gasket
126326 (2) Full qty
37
Actuator
126325 (2) Full qty
38
Spring
61325200 (4) Full qty
39
Bush
126995 (4) Full qty
40
Screw
15642501 (4) Full qty
41
Washer
14498501 (4) Full qty
42
Bracket
126299 (2) Full qty
43
SCREW
13273911 (10) Full qty
44
Washer
106850 (4) Full qty
45
L.H. air duct
61790500 (1) Full qty
46
L.H. air duct
61790500 (1) Full qty
47
L.H. air duct
61790300 (1) Full qty
48
Washer
14498501 (4) Full qty
49
Screw
15901508 (4) Full qty
50
Washer
10519301 (4) Full qty
51
Washer
12601179 (4) Full qty
52
Nut
New       Price on Enquiry
15896211 (4) Full qty
CH11996n
53
Deviating device motor
61790000 (2) Full qty
54
Hose heater - 3 way of backflo…
122225 (2) Full qty
55
Addition for plate
61884100 (1) Full qty
56
Plate for electro fans
61869800 (1) Full qty
57
Transistor
126854 (2) Full qty
58
Washer
106849 (6) Full qty
59
Filter for electro fan
62438900 (2) Full qty
60
Electro fan with filter
62438700 (1) Full qty
61
Electro fan with filter
62438800 (1) Full qty
