Fuel Pump And Pipes

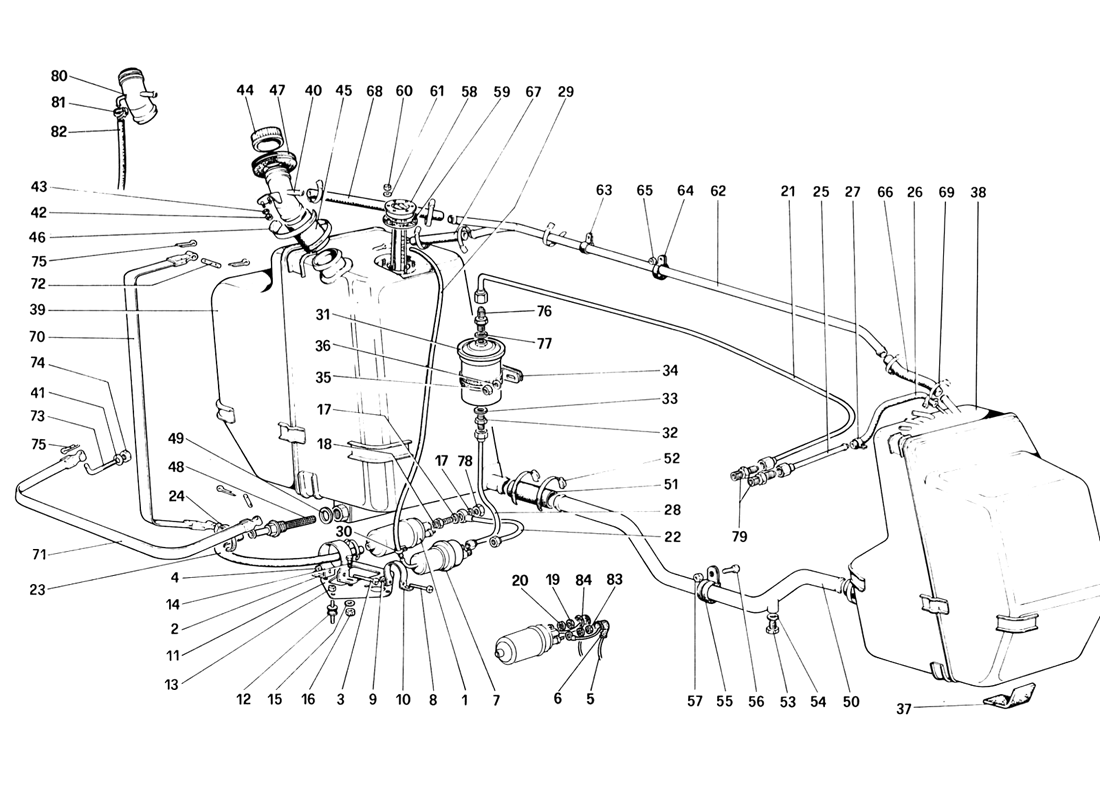

Schematic: Fuel Pump And Pipes
Loc
Part
Cond       Price
1
Fuel Pump
121727 (1) Full qty
2
Pump retaining clamp
113673 (1) Full qty
3
Screw
10377311 (1) Full qty
4
Square nut
14089311 (1) Full qty
5
Earth cable
115153 (1) Full qty
6
New       Price on Enquiry
107003 (2) Full qty
EL99222n
7
Accumulator
129037 (1) Full qty
7
Fuel Accumulator 0438170004
113978 (1) Full qty
8
Screw
10376111 (1) Full qty
9
Square nut
14089311 (1) Full qty
10
Strap
135881 (1) Full qty
10
Accumulator retaining clamp
113674 (1) Full qty
11
Support for pump and accumulat…
115513 (1) Full qty
12
Fuel Pump Mounting
102947 (3) Full qty
12
New       Price on Enquiry
102947 (3) Full qty
GE00644n
13
Nut
12574211 (5) Full qty
14
Screw
10902121 (4) Full qty
15
Washer
10519421 (3) Full qty
16
Nut
12574211 (4) Full qty
17
New       £ 1.28
11270160 (2) Full qty
FU15801n
18
Fuel Pump Check Valve
120098 (1) Full qty
19
Nut
15896411 (1) Full qty
20
Washer
10615379 (1) Full qty
21
Pipe, filter to metering devic…
116571 (1) Full qty
21
Pipe, filter to metering devic…
128477 (1) Full qty
22
Pipe, pump to accumulator For …
135779 (1) Full qty
22
Fuel Pipe
119305 (1) Full qty
23
New       Price on Enquiry
119281 (1) Full qty
FT10114n
24
Clamp
12179590 (2) Full qty
25
Return pipe
128479 (1) Full qty
26
Pipe
126919 (1) Full qty
27
Clamp
12179490 (2) Full qty
28
Pipe, accumulator to filter
117848 (1) Full qty
28
New       £ 49.50
119278 (1) Full qty
FU15681n
29
Return pipe
115236 (1) Full qty
30
Clamp
12179490 (2) Full qty
31
New       £ 32.95
117792 (1) Full qty
FU14008n
31
Fuel Filter 71051
115738 (1) Full qty
32
Union on delivery side
109797 (1) Full qty
32
Union on feeding side
109889 (1) Full qty
33
Gasket
113910 (1) Full qty
33
New       £ 1.25
10280060 (1) Full qty
FU00140n
34
Sheathed bracket for filter
115140 (1) Full qty
34
(2) Sheathed bracker to filter…
117791 (1) Full qty
35
New       £ 1.05
12574521 (1) Full qty
FS10435n
36
Washer
13550401 (1) Full qty
37
Shim for tanks
107889 (14) Full qty
38
R.H. tank
116605 (1) Full qty
38
R.H. tank
114605 (1) Full qty
39
L.H. tank
121318 (1) Full qty
39
L.H. tank
119015 (1) Full qty
40
Fuel filter
132340 (1) Full qty
40
Fuel filter
113865 (1) Full qty
40
Fuel filter
113866 (1) Full qty
40
Fuel filter
115680 (1) Full qty
41
Spacer
13605711 (1) Full qty
42
Nut
12574211 (2) Full qty
43
Flat Washer
12643701 (2) Full qty
44
Filler cap
113401 (1) Full qty
45
Sleeve
117618 (1) Full qty
45
Sleeve
114278 (1) Full qty
46
New       £ 2.95
12174790 (2) Full qty
FU00141n
47
New       Price on Enquiry
101465 (1) Full qty
BW10224n
47
Fuel Filler Neck Seal
101465 (1) Full qty
48
Filter
136595 (1) Full qty
48
Filter
116870 (1) Full qty
49
Gasket for fuel filter
117884 (1) Full qty
50
Fuel Cross Over Pipe
115482 (1) Full qty
51
Fuel Cross Over Hose
114277 (2) Full qty
51
New       £ 17.46
114277 (2) Full qty
FU14423n
52
Clamp
12173890 (4) Full qty
53
New       Price on Enquiry
10300771 (1) Full qty
SU11702n
54
Gasket
10278650 (1) Full qty
55
Pipe supporting clamp
106195 (1) Full qty
56
Screw
10902121 (1) Full qty
57
Nut
12574211 (1) Full qty
58
Level gauge control
108644 (1) Full qty
59
New       £ 12.05
101462 (1) Full qty
FT10041n
59
New       Price on Enquiry
101462 (1) Full qty
FU14074n
60
Nut
10794011 (6) Full qty
61
Washer
106848 (6) Full qty
62
Breather pipe
108521 (1) Full qty
63
Clamp ? 16 mm
10450490 (1) Full qty
64
Bracket
10441790 (2) Full qty
65
Nut
12574211 (3) Full qty
66
Pipe
114917 (1) Full qty
66
Pipe
109353 (2) Full qty
67
Tank breathe pipe
114916 (1) Full qty
68
Pipe
109354 (1) Full qty
69
Clamp
12179590 (6) Full qty
70
Vertical band for tanks
109328 (2) Full qty
71
Trasverse band for tanks
110937 (2) Full qty
72
Pin
103447 (2) Full qty
73
Tie rod for strap
12311271 (2) Full qty
74
Nut
16104111 (2) Full qty
75
Cotter pin
10796401 (2) Full qty
76
Union on delivery side
109797 (1) Full qty
76
Union piece
127756 (1) Full qty
76
Accumulator union
125216 (1) Full qty
77
Gasket
113910 (1) Full qty
77
New       Price on Enquiry
10298460 (1) Full qty
EX10416n
78
Drain plug
10183217 (1) Full qty
79
Union
125215 (2) Full qty
80
Fuel Filler Neck 308
109321 (1) Full qty
81
Fascetta
101296 (1) Full qty
82
Tubo sfiato
106666 (1) Full qty
83
Nut
10794011 (1) Full qty
84
Washer
10615279 (1) Full qty
