Body Shell - Inner Elements (For Aus And Ch87 And Ch88)

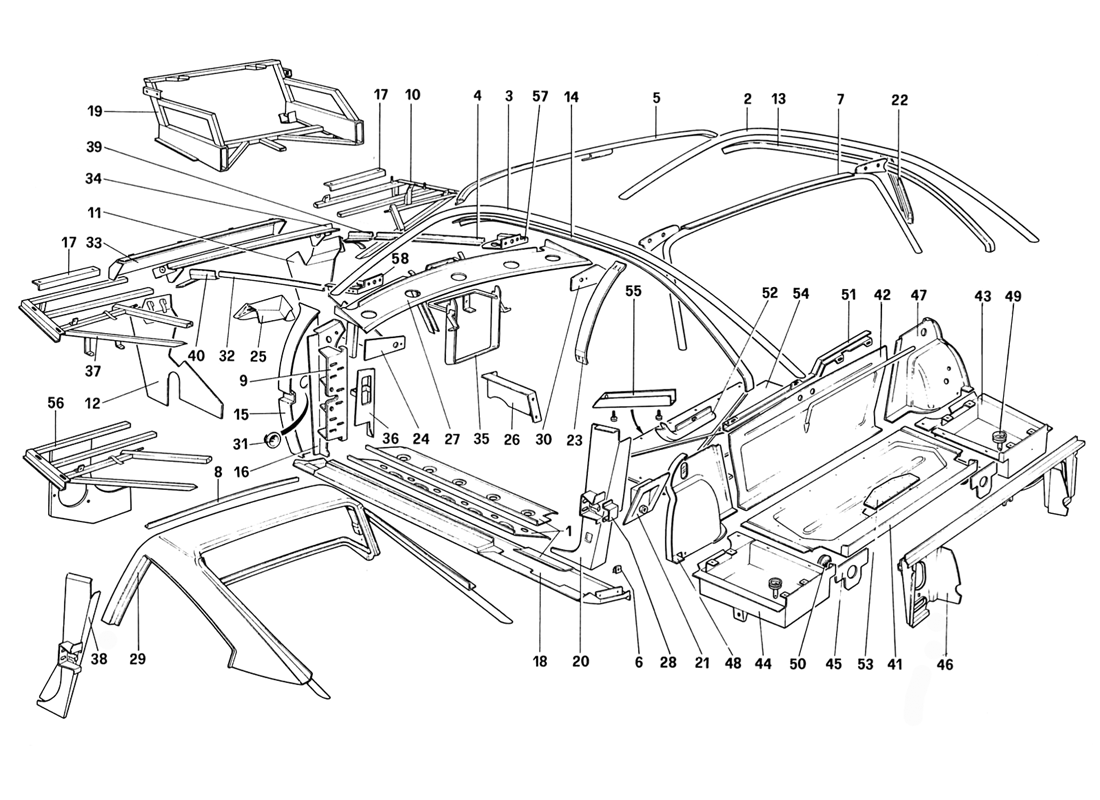

Schematic: Body Shell - Inner Elements (For Aus And Ch87 And Ch88)
Schematic: Body Shell - Inner Elements (For Aus And Ch87 And Ch88)
Loc
Part
Cond       Price
1
Panel, L.H. door sill GTS
60419603 (1) Full qty
1
Panel, R.H. door sill GTS
60419504 (1) Full qty
1
Panel, L.H. door sill GTB
60303302 (1) Full qty
2
R.H. rail GTB
61010000 (1) Full qty
3
L.H. rail GTB
61010100 (1) Full qty
4
(V) R.H. stiffening CH
60350006 (1) Full qty
4
(V) R.H. stiffening AUS
60350204 (1) Full qty
4
R.H. stiffening front bonnet
60350808 (1) Full qty
5
Front rib roof GTB
60371309 (1) Full qty
6
Clip
60361805 (4) Full qty
7
Rear rib for roof
60296001 (1) Full qty
8
Angle
60560400 (1) Full qty
9
Post fixing hinge
60285202 (2) Full qty
10
R.H. shield panel radiator CH
61748400 (1) Full qty
11
R.H. shield panel radiator CH
61748400 (1) Full qty
11
R.H. sheld panel radiator
62343800 (1) Full qty
11
R.H. shield panel radiator
61842600 (1) Full qty
12
L.H. shield panel radiator
61748300 (1) Full qty
13
Front R.H. rail GTB
62349900 (1) Full qty
13
Sheet R.H. rail GTB
60260106 (1) Full qty
13
Rear R.H. rail GTB
62350100 (1) Full qty
14
Front L.H. rail GTB
62350000 (1) Full qty
14
Rear L.H. rail GTB
62350200 (1) Full qty
14
Sheet L.H. rail GTB
60260007 (1) Full qty
15
Hinge post. R.H. door
60252400 (1) Full qty
15
Hinge post L.H. door
60252509 (1) Full qty
16
(N) Sheet for R.H. pillar
60397106 (1) Full qty
16
(V) Sheet for L.H. pillar
61009900 (1) Full qty
16
(V) Sheet for R.H. pillar
61009800 (1) Full qty
16
(N) Sheet for L.H. pillar
60397205 (1) Full qty
17
Bracket for headlamps
60652200 (4) Full qty
18
Outer panel R.H. door sill
60003803 (1) Full qty
18
Outer panel L.H. door sill
60003902 (1) Full qty
19
Front frame
129903 (1) Full qty
19
Front frame CH from 1-10-86
135685 (1) Full qty
20
L.H. panel GTB Support
60295201 (1) Full qty
20
L.H. panel GTB
60302304 (1) Full qty
20
R.H. post complete GTB
60295300 (1) Full qty
20
R.H. panel GTB
60302403 (1) Full qty
21
Support
60347705 (2) Full qty
22
R.H. post complete GTB
60260403 (1) Full qty
22
L.H. post complete GTB
62350300 (1) Full qty
23
L.H. post complete GTB
62350400 (1) Full qty
23
L.H. post complete GTB
60260502 (1) Full qty
24
R.H. plate under windhsield AU…
61883300 (1) Full qty
24
L.H. plate under windshiled
60259306 (1) Full qty
25
Bracket for windhshield wiper …
61851800 (1) Full qty
25
Bracket for windshield wiper m…
61902300 (1) Full qty
26
(V) Support
60106903 (1) Full qty
26
Support AUS
60193109 (1) Full qty
27
(V) Stiffening under wind shie…
61862600 (1) Full qty
27
(N) Stiffening RHD
62534400 (1) Full qty
27
(V) Stiffening under wind shie…
61862100 (1) Full qty
27
(N) Stiffening under wind shil…
62495600 (1) Full qty
28
R.H. bracket
62514300 (1) Full qty
28
L.H. bracket
62514400 (1) Full qty
29
Roff assembly GTS
61128800 (1) Full qty
30
R.H. plate under windshield
61850300 (1) Full qty
30
R.H. plate under windshield AU…
61851400 (1) Full qty
31
Plug
60284304 (2) Full qty
32
L.H. stiffening front 'bonnet
60350907 (1) Full qty
32
(V) L.H. stiffening AUS
60350402 (1) Full qty
32
(V) L.H. stiffening CH
60397908 (1) Full qty
32
L.H. stiffening front 'bonnet
60350907 (1) Full qty
33
Shield panel radiator
61772600 (1) Full qty
34
Support
61772400 (2) Full qty
35
Support AUS
61846900 (1) Full qty
35
Support
61793300 (1) Full qty
36
Support GTS
60640200 (1) Full qty
36
Support GTS
60640100 (1) Full qty
37
L.H. front frame
61748500 (1) Full qty
38
L.H. panel GTS
60432100 (1) Full qty
38
L.H. panel GTS
60421302 (1) Full qty
38
R.H. panel GTS
60432000 (1) Full qty
38
R.H. Panel GTS
60421203 (1) Full qty
39
R.H. stiffening
61854600 (1) Full qty
40
L.H. stiffening
61854700 (1) Full qty
41
Bottom panel for luggage comp.…
61828600 (1) Full qty
42
Bulkhead
61805800 (1) Full qty
43
R.H. side bottom for luggage c…
61806200 (1) Full qty
43
R.H. bottom panel C8
62431100 (1) Full qty
43
R.H. bottom panel C7
61972300 (1) Full qty
44
L.H. bottom panel CH
61972400 (1) Full qty
44
L.H. side bottom for luggage c…
61806300 (1) Full qty
45
Sheet
61806900 (2) Full qty
45
Sheet CH
61973100 (2) Full qty
46
Rear frame AUS
61976000 (1) Full qty
46
Rear frame
61805700 (1) Full qty
47
R.H. panel C8
62431200 (1) Full qty
47
R.H. sheet
61807000 (1) Full qty
47
R.H. sheet
61991800 (1) Full qty
48
L.H. sheet
61807100 (1) Full qty
48
L.H. sheet
61991900 (1) Full qty
49
Plug
60731300 (2) Full qty
50
Plug to close hole trunk room
14507187 (2) Full qty
51
Protection
61950900 (1) Full qty
52
Protection
61951000 (1) Full qty
53
Luggage bottom cover
60810000 (1) Full qty
54
Insulation panel CH
132659 (1) Full qty
55
Protection AUS
61914600 (1) Full qty
55
Protection
61842500 (1) Full qty
56
(V) L.H. front frame
62439000 (1) Full qty
56
(N) L.H. front frame
62518000 (1) Full qty
57
R.H. bracket
61097700 (1) Full qty
58
L.H. bracket
61097800 (1) Full qty
58
Roof frame assembly GTB
61010500 (1) Full qty
58
Roof frame assembly GTB
62350700 (1) Full qty
