Cylinder Head (Right)

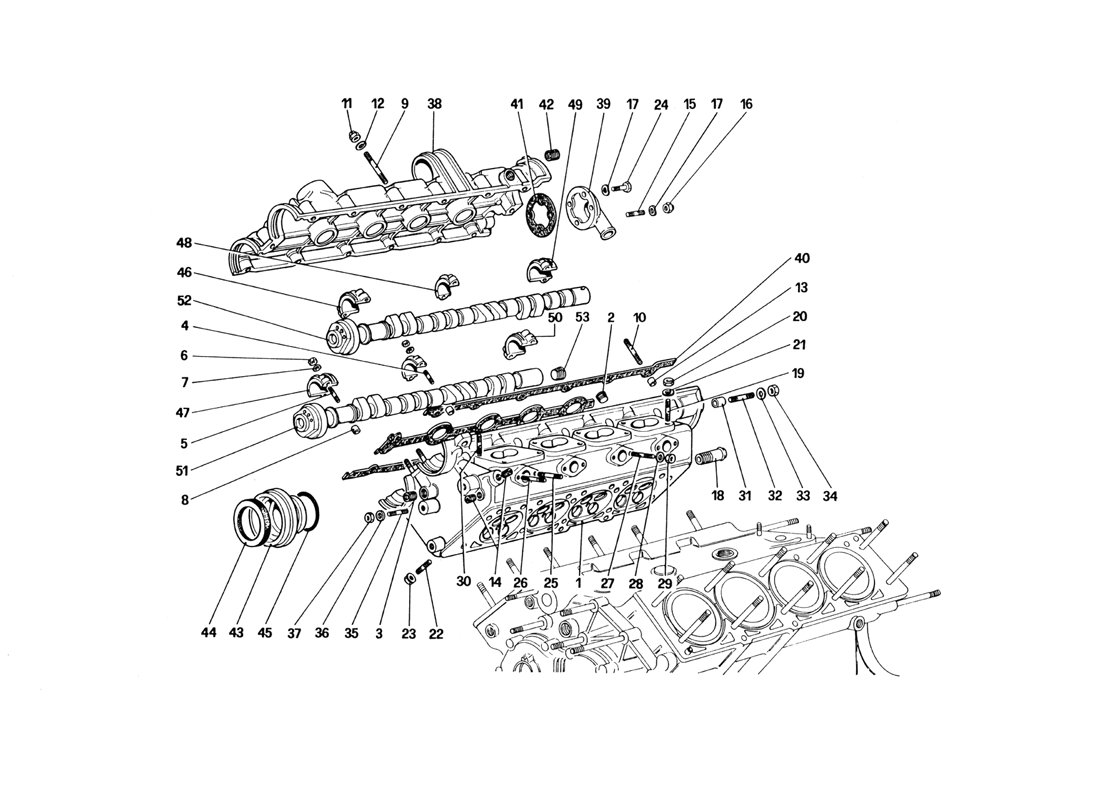

Schematic: Cylinder Head (Right)
Schematic: Cylinder Head (Right)
Loc
Part
Cond       Price
1
Right cylinder head, complete
126194 (1) Full qty
1
Right cylinder head
126195 (1) Full qty
1
Right cylinder head, complete
127488 (1) Full qty
1
Right cylinder head
127489 (1) Full qty
2
Threaded Insert M18
New       Price on Enquiry
127635 (5) Full qty
CH20046n
3
Threaded insert
13526070 (1) Full qty
4
Cam Bearing Cap Stud
New       £ 5.30
102735 (12) Full qty
CH12063n
5
Stud (outer caps)
102754 (8) Full qty
6
Nut
New       Price on Enquiry
15896211 (20) Full qty
CH11996n
7
Washer
11197773 (20) Full qty
8
Dowel 6x8x8
New       £ 0.89
102725 (20) Full qty
EL99607n
9
Stud
13541621 (12) Full qty
10
Stud
13541721 (2) Full qty
11
Cam Cover Domed Nut 6x10 Short
New       Price on Enquiry
100044 (14) Full qty
CH11780n
12
Washer Bellville 6mm
New       Price on Enquiry
11197771 (14) Full qty
CH20004n
12
Cam Cover Washer
New       Price on Enquiry
11197771 (14) Full qty
CH20034n
13
Dowel 6x8x8
New       £ 0.89
102725 (2) Full qty
EL99607n
14
Plug
14326150 (3) Full qty
15
Stud
11500521 (2) Full qty
16
Nut
12575411 (2) Full qty
17
Washer
12601271 (4) Full qty
18
Union
106227 (1) Full qty
19
Stud
13543321 (8) Full qty
20
Nut
16100811 (10) Full qty
21
Washer
11198071 (10) Full qty
22
Stud
12354521 (8) Full qty
23
Nut
124525 (8) Full qty
24
Screw
10902221 (2) Full qty
25
Stud
13541621 (3) Full qty
26
Stud
13541721 (4) Full qty
27
Stud for metering devices supp…
13541821 (1) Full qty
28
Washer
11197773 (8) Full qty
29
Nut
New       Price on Enquiry
15896211 (8) Full qty
CH11996n
30
Stud
13543521 (2) Full qty
31
Dowel 6x8x8
New       £ 0.89
102725 (2) Full qty
EL99607n
32
Stud
11500521 (2) Full qty
33
Washer
11197773 (2) Full qty
34
Nut
New       Price on Enquiry
15896211 (2) Full qty
CH11996n
35
Stud
13543321 (3) Full qty
36
Washer
12601371 (3) Full qty
37
Nut
16104411 (3) Full qty
38
Head cover, complete
111564 (1) Full qty
38
Right head cover
117220 (1) Full qty
39
End cover with bolw-by inlet
103808 (1) Full qty
40
Gasket
117263 (1) Full qty
41
Gasket
119067 (1) Full qty
42
Heli-coil
13525470 (3) Full qty
43
Front cover
117257 (2) Full qty
44
Cam Shaft Oil Seal
New       Price on Enquiry
105389 (2) Full qty
CH20028n
44
Camshaft Oil Seal, Right & Lef…
105389 (2) Full qty
45
Cam O-Ring 6212
New       £ 4.04
117275 (2) Full qty
CH11664n
46
Front cap inlet side
117039 (1) Full qty
47
Front cap exhaustion side
117040 (1) Full qty
48
Intermediate cap
126811 (6) Full qty
49
Rear cap inlet side
126813 (1) Full qty
50
Rear cap exhaust side
126812 (1) Full qty
51
Right exhaust camshaft, comple…
126556 (1) Full qty
51
Right exhaust camshaft
126555 (1) Full qty
52
Right intake camshaft complete…
126186 (1) Full qty
52
Right intake camshaft
126185 (1) Full qty
53
Plug
10269750 (1) Full qty
