Body Shell - Inner Elements (Not For U.S. And Sa Version)

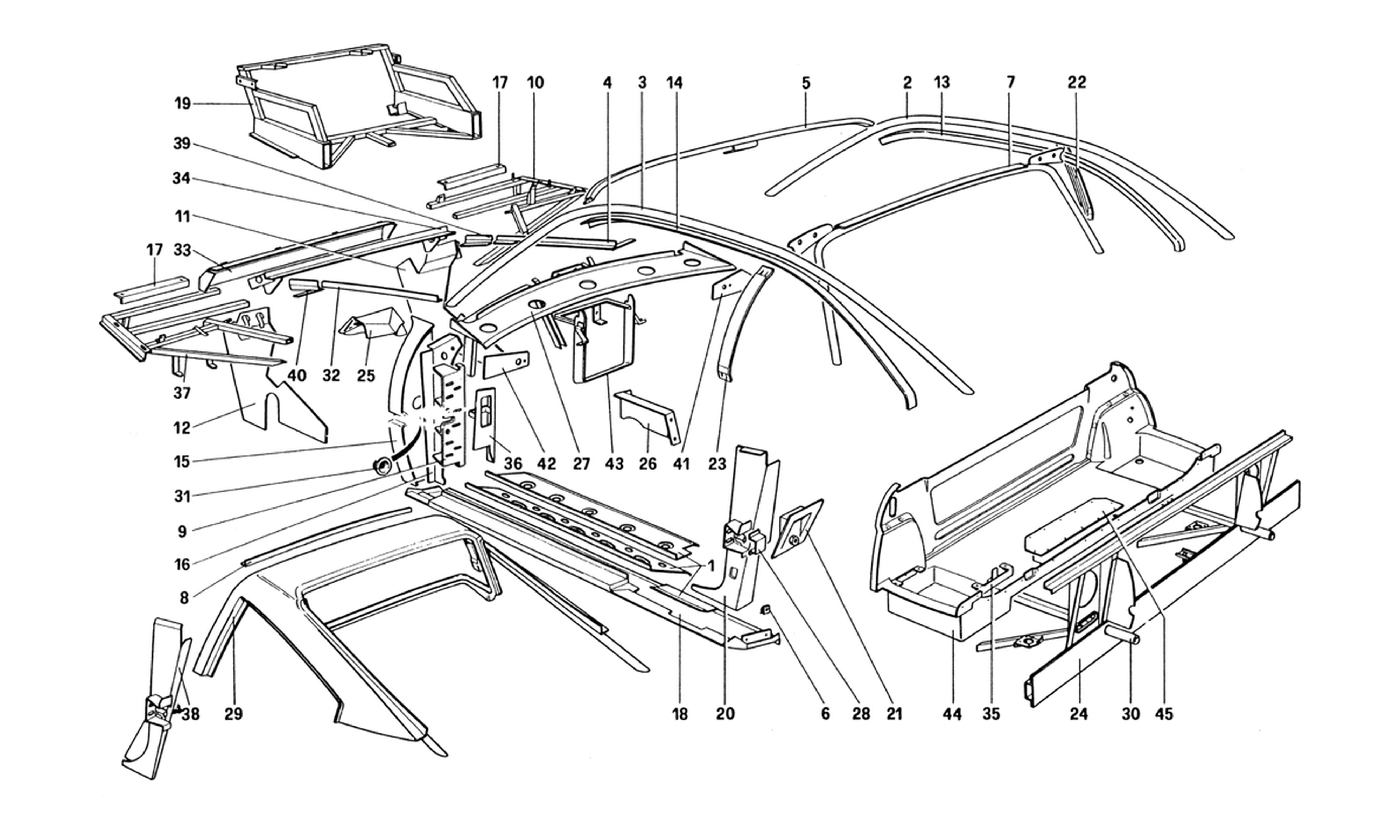

Schematic: Body Shell - Inner Elements (Not For U.S. And Sa Version)
Schematic: Body Shell - Inner Elements (Not For U.S. And Sa Version)
Loc
Part
Cond       Price
1
Panel, R.H. door sill GTB
60303203 (1) Full qty
1
Panel, L.H. door sill GTB
60303302 (1) Full qty
1
Panel, R.H. door sill GTS
60419504 (1) Full qty
1
Panel, L.H. door sill GTS
60419603 (1) Full qty
2
R.H. rail GTB
61010000 (1) Full qty
3
L.H. rail GTB
61010100 (1) Full qty
4
(V) R.H. stiffening CH
60350006 (1) Full qty
4
(V) R.H. stiffening AUS
60350204 (1) Full qty
5
Front rib roof GTB
60371309 (1) Full qty
6
Clip
60361801 (4) Full qty
7
Rear rib for roof
60296001 (1) Full qty
8
Angle
60560400 (1) Full qty
9
Post fixing hinge
60285202 (2) Full qty
10
R.H. shield panel radiator CH
61748400 (1) Full qty
11
R.H. shield panel radiator LHD…
61748200 (1) Full qty
11
R.H. shield panel radiator
61842600 (1) Full qty
12
L.H. shield panel radiator
61748300 (1) Full qty
12
L.H. shield panel radiator
61842700 (1) Full qty
13
Sheet R.H. rail GTB
60260106 (1) Full qty
14
Sheet L.H. rail GTB
60260007 (1) Full qty
15
Hinge post. R.H. door
60252400 (1) Full qty
15
Hinge post L.H. door
60252500 (1) Full qty
16
(N) Sheet for L.H. pillar
60397205 (1) Full qty
16
(N) Sheet for R.H. pillar
60397106 (1) Full qty
16
(V) Sheet for R.H. pillar
61009800 (1) Full qty
16
(V) Sheet for L.H. pillar
61009900 (1) Full qty
17
Bracket for headlamps
60652200 (4) Full qty
18
Outer panel R.H. door sill
60003803 (1) Full qty
18
Outer panel L.H. door sill
60003902 (1) Full qty
19
Front frame
129903 (1) Full qty
20
R.H. panel GTB
60302403 (1) Full qty
20
L.H. panel GTB
60302304 (1) Full qty
21
Support
60347705 (2) Full qty
22
R.H. post complete GTB
60260403 (1) Full qty
23
L.H. post complete GTB
60260502 (1) Full qty
24
Rear frame LHD
61754700 (1) Full qty
24
Rear frame RHD
61847100 (1) Full qty
25
Bracket for windhshield wiper …
61851800 (1) Full qty
25
Bracket for windshield wiper m…
61902300 (1) Full qty
26
(V) Support
60106903 (1) Full qty
26
Support AUS
60193109 (1) Full qty
27
(V) Stiffening under wind shie…
61862100 (1) Full qty
27
(V) Stiffening under wind shie…
61862600 (1) Full qty
28
Rear bracket for support lock …
60302601 (2) Full qty
29
Roff assembly GTS
61128800 (1) Full qty
30
Support
61825400 (2) Full qty
31
Plug
60284304 (2) Full qty
32
(V) L.H. stiffening CH
60397908 (1) Full qty
32
(V) L.H. stiffening AUS
60350402 (1) Full qty
33
Shield panel radiator
61772600 (1) Full qty
33
Shield panel radiator R.H.D.
61776200 (1) Full qty
34
Support
61772400 (2) Full qty
35
Support
61861200 (1) Full qty
36
Support GTS
60640200 (1) Full qty
36
Support GTS
60640100 (1) Full qty
37
L.H. front frame
61748500 (1) Full qty
38
R.H. Panel GTS
60421203 (1) Full qty
38
L.H. panel GTS
60421302 (1) Full qty
39
R.H. stiffening
61854600 (1) Full qty
40
Insulation
61844700 (1) Full qty
41
R.H. plate under windshield
61850300 (1) Full qty
41
R.H. plate under windshield AU…
61851400 (1) Full qty
42
L.H. plate under windshiled
60259306 (1) Full qty
42
R.H. plate under windhsield AU…
61883300 (1) Full qty
43
Support
61793300 (1) Full qty
43
Support AUS
61846900 (1) Full qty
44
Panel
61862800 (1) Full qty
45
Luggage bottom cover
60810000 (1) Full qty
45
Roof frame assembly GTB
61010500 (1) Full qty
