Body Shell - Outer Elements (For U.S. And Sa Version)

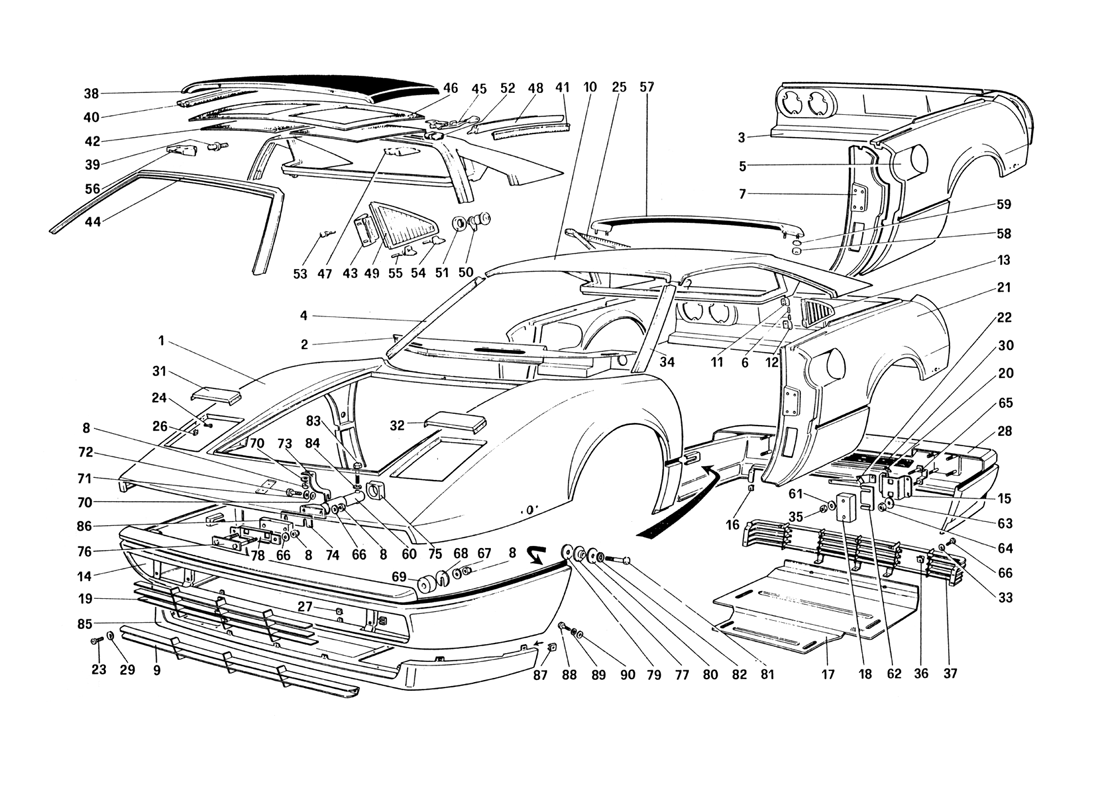

Schematic: Body Shell - Outer Elements (For U.S. And Sa Version)
Loc
Part
Cond       Price
1
Front panel. US
61778000 (1) Full qty
2
(V) Panel LHD
61797700 (1) Full qty
3
Rear panel
61874600 (1) Full qty
4
Panel for R.H. post
61141100 (1) Full qty
5
R.H. rear fender
60585700 (1) Full qty
5
L.H. rear fender
60585800 (1) Full qty
5
R.H. rear fender
60585900 (1) Full qty
5
L.H. rear fender
60586000 (1) Full qty
5
R.H. rear fender
60358900 (1) Full qty
5
L.H. rear fender
60359007 (1) Full qty
6
Pin
60042108 (2) Full qty
7
R.H. pilar for fender
60216801 (1) Full qty
7
L.H. pilar for fender- LHD
60216900 (1) Full qty
8
Nut
12574511 (12) Full qty
9
Lower grill
61797300 (1) Full qty
10
Roof panel
60214806 (1) Full qty
11
Upple hinge
60040805 (1) Full qty
12
Lower hinge
60040706 (1) Full qty
13
R.H. grill
60370004 (1) Full qty
13
L.H. grill
60337409 (1) Full qty
14
Lower panel
61747400 (1) Full qty
15
Bracket
61736300 (2) Full qty
16
Pump
61787900 (9) Full qty
17
New       Price on Enquiry
61881000 (1) Full qty
EX10820n
18
New       Price on Enquiry
61791900 (2) Full qty
BW10142n
19
Grill
61736800 (1) Full qty
20
Angle fixing net
61923600 (1) Full qty
21
Rear panel complete
61874500 (1) Full qty
21
Rear panel complete
61874800 (1) Full qty
22
Nut
- (1) Full qty
22
Nut
- (1) Full qty
23
Screw
15688178 (8) Full qty
24
Screw
15903878 (8) Full qty
25
Gasket
60528300 (2) Full qty
26
Clip
60679600 (8) Full qty
27
Spring
60696300 (8) Full qty
28
Lower panel
61735900 (1) Full qty
29
Washer
10519306 (8) Full qty
30
Net
61918300 (1) Full qty
31
R.H. cover
61810800 (1) Full qty
32
L.H. cover
61810900 (1) Full qty
33
Washer
12637806 (9) Full qty
34
Panel for L.H. post
61141200 (1) Full qty
35
Nut
12574511 (4) Full qty
36
Spring
61066500 (9) Full qty
37
Grill, Rear Exhaust 328
61737700 (1) Full qty
38
Hard top
61128700 (1) Full qty
39
Front pin
60189008 (2) Full qty
40
Gasket
60398104 (2) Full qty
41
New       Price on Enquiry
60608500 (2) Full qty
ET25071n
42
R.H. covering
61202800 (1) Full qty
42
L.H. covering
61202900 (1) Full qty
43
Grill hinge
60325305 (2) Full qty
44
Framework for windshield
60872700 (1) Full qty
45
Handle
60421500 (2) Full qty
46
Covering
61203000 (1) Full qty
47
Rear bracket
60500500 (2) Full qty
48
R.H. gutter
60608300 (1) Full qty
48
L.H. gutter
60608400 (1) Full qty
49
R.H. grill
61818600 (1) Full qty
49
L.H. grill
61818700 (1) Full qty
50
Lock
61819300 (2) Full qty
51
Ring nut
61819400 (2) Full qty
52
Handle protection
60395506 (2) Full qty
53
Rubber
60892600 (4) Full qty
54
Rear grommet GTS
20106001 (2) Full qty
55
Central grommet
60551400 (2) Full qty
56
Front bracket
60336807 (2) Full qty
57
Sleek spoyler
61024700 (1) Full qty
57
Rough spoyler
61290200 (1) Full qty
58
Nut
12574211 (4) Full qty
59
Flat Washer
12643701 (4) Full qty
60
Bracket
61736700 (2) Full qty
61
Washer
12638601 (4) Full qty
62
New       Price on Enquiry
61792000 (4) Full qty
BW10144n
63
Washer
10519601 (8) Full qty
64
Nut
16104111 (8) Full qty
65
Bracket
61791700 (2) Full qty
66
Washer
12638601 (8) Full qty
67
WASHER
12644301 (2) Full qty
68
Spacer
61747700 (6) Full qty
69
Plug
61747800 (2) Full qty
70
Washer
12646801 (4) Full qty
71
Washer
10571871 (2) Full qty
72
SCREW
15970521 (2) Full qty
73
Bracket
60801400 (2) Full qty
74
Spacer
61919300 (6) Full qty
75
Plug
61262200 (2) Full qty
76
Bracket
61736500 (2) Full qty
77
Bush
61693400 (4) Full qty
78
Bracket
61747600 (2) Full qty
79
Spacer
61802800 (2) Full qty
80
Washer
12646201 (4) Full qty
81
Screw
16043821 (4) Full qty
82
Washer
10615670 (4) Full qty
83
Screw
60777400 (2) Full qty
84
Washer
10572071 (2) Full qty
85
Spoyler
61777900 (1) Full qty
86
Plug
61919200 (2) Full qty
87
Caget nut
60758600 (4) Full qty
88
Screw
10902121 (6) Full qty
89
Washer
10615471 (6) Full qty
90
Washer
12646601 (6) Full qty
