Cylinder Head (Right)

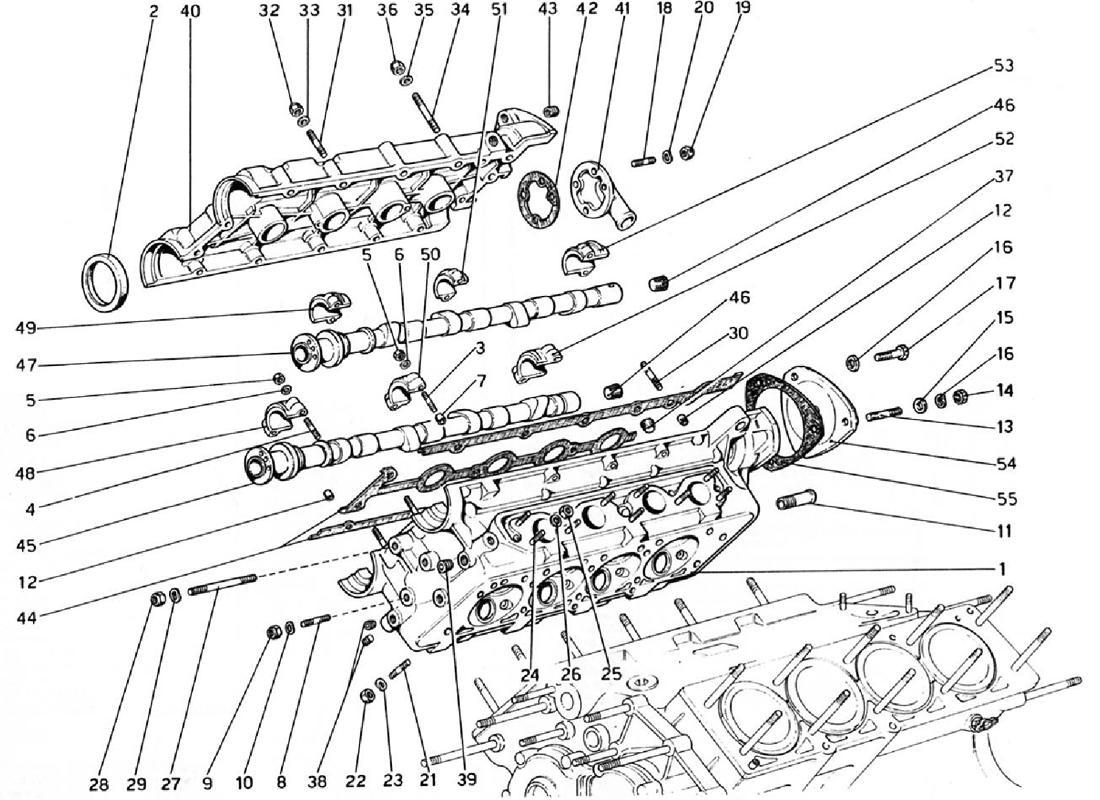

Schematic: Cylinder Head (Right)
Loc
Part
Cond       Price
1
Cylinder Head RH
107326 (1) Full qty
1
Cylinder Head RH
109373 (1) Full qty
2
New       Price on Enquiry
105389 (2) Full qty
CH20028n
2
Camshaft Oil Seal, Right & Lef…
105389 (2) Full qty
3
New       £ 5.30
102735 (12) Full qty
CH12063n
4
Stud (outer caps)
102754 (8) Full qty
5
Nut
New       Price on Enquiry
15896211 (20) Full qty
CH11996n
6
Washer
11197773 (20) Full qty
7
New       £ 0.89
102725 (20) Full qty
EL99607n
8
Stud bolt
13517121 (3) Full qty
9
Nut
16104411 (3) Full qty
10
Washer
12601371 (3) Full qty
11
Union
106227 (1) Full qty
12
New       £ 0.89
102725 (2) Full qty
EL99607n
13
Stud
13517011 (2) Full qty
14
Nut
16100811 (2) Full qty
15
Stud
13517021 (2) Full qty
16
Washer
12601371 (3) Full qty
17
Screw
16043611 (1) Full qty
18
Stud on dowel
11500321 (4) Full qty
19
Nut
12575411 (4) Full qty
20
Washer
12601271 (4) Full qty
21
Stud
13543321 (8) Full qty
22
Nut
105938 (8) Full qty
23
Washer
10516671 (8) Full qty
24
Stud
13516821 (9) Full qty
25
Nut
16100811 (9) Full qty
26
Washer
11198071 (9) Full qty
27
Stud securing cover
13953421 (1) Full qty
28
New       £ 1.05
12574521 (1) Full qty
FS10435n
29
Washer
12601471 (1) Full qty
30
Stud
13541721 (2) Full qty
31
Stud
13541621 (10) Full qty
32
New       Price on Enquiry
100044 (12) Full qty
CH11780n
33
Washer
12601271 (12) Full qty
34
THREADED STUD
10982021 (4) Full qty
35
Washer
12601271 (4) Full qty
36
Cam/Chain Cover Nuts
101239 (4) Full qty
36
Cam/Chain Cover Nuts
101239 (4) Full qty
36
New       £ 7.21
101239 (4) Full qty
CH11808n
37
Plug
10269750 (3) Full qty
38
Plug
14326150 (3) Full qty
39
Plug
10269450 (1) Full qty
40
Coperchio testa Dx. (con la te…
109347 (1) Full qty
40
Fuel Filler Hose
109374 (1) Full qty
41
End cover with bolw-by inlet
103808 (1) Full qty
42
Gasket
103809 (1) Full qty
43
Heli-coil
103830 (1) Full qty
44
Guarnizione
107312 (1) Full qty
45
Albero distribuzione scarico D…
109438 (1) Full qty
45
Albero distribuzione scarico D…
108977 (1) Full qty
46
Plug
10269750 (2) Full qty
47
Albero distribuzione aspirazio…
108892 (1) Full qty
47
Albero distr.aspirazione Dx. c…
108915 (1) Full qty
48
BEARING CAP FRONT
105988 (1) Full qty
49
BEARING CAP FRONT
105989 (1) Full qty
50
New       Price on Enquiry
106836 (3) Full qty
CH11912n
51
BEARING CAP INTERMEDIATE
106837 (3) Full qty
52
Cappello posteriore
106838 (1) Full qty
53
Cappello posteriore
106839 (1) Full qty
54
New       Price on Enquiry
108889 (1) Full qty
CH00001n
55
New       £ 3.84
103815 (1) Full qty
EL99514n
