Clutch Unit And Cover

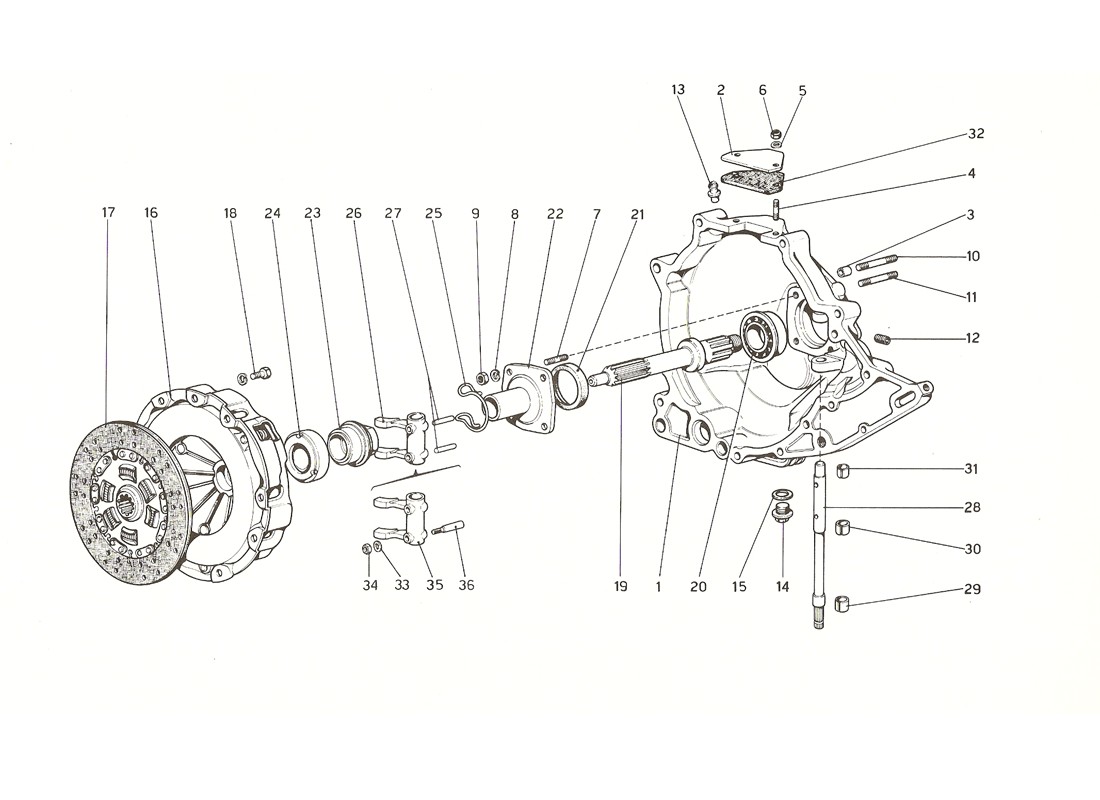

Schematic: Clutch Unit And Cover
Loc
Part
Cond       Price
1
Campana frizione completa
107873 (1) Full qty
1
Carnpana frizione completa
109118 (1) Full qty
1
Campana frizione
106164 (1) Full qty
1
Campana frizione
107679 (1) Full qty
1
Campana frizione
107999 (1) Full qty
1
Carnpartd frizione (non a rica…
108940 (1) Full qty
2
Coperchietto ispezione
104038 (1) Full qty
2
Coperchietto ispezione
107687 (1) Full qty
2
Inspection centering dowel
109404 (1) Full qty
3
Dowel
102704 (2) Full qty
4
Stud bolt
11000821 (2) Full qty
5
Spring ring
11195471 (2) Full qty
6
Nut
15896411 (2) Full qty
7
Stud
13516521 (4) Full qty
8
Washer
10516671 (4) Full qty
9
New       Price on Enquiry
16102311 (4) Full qty
BS00703n
10
New       £ 12.07
13517621 (2) Full qty
GB10575n
11
Stud
13517521 (8) Full qty
12
Plug
14326150 (1) Full qty
13
New       Price on Enquiry
13411990 (1) Full qty
AX22445n
14
Oil drain plug
14326540 (1) Full qty
15
Gasket
10279560 (1) Full qty
15
Frizione da 9"" +"
101532 (1) Full qty
15
Frizione 9 ½ (non a ricambio)
110294 (1) Full qty
16
Spingidisco frizione
101533 (1) Full qty
17
Disco frizione
109383 (1) Full qty
17
Disco frizione
110296 (1) Full qty
18
Bolt
13825821 (6) Full qty
19
Albero frizione
105129 (1) Full qty
19
Shaft
109400 (1) Full qty
20
New       Price on Enquiry
103042 (1) Full qty
GB10260n
21
Anello tenuta
105055 (1) Full qty
21
Off retainer
110314 (1) Full qty
22
Clutch Flange
105136 (1) Full qty
23
New       £ 185.80
100848 (1) Full qty
GB10160n
24
New       Price on Enquiry
100849 (1) Full qty
CL11616n
25
New       Price on Enquiry
105732 (1) Full qty
CL12002n
26
LEVER
106540 (1) Full qty
26
Leva comando frizione
106684 (1) Full qty
27
Pin
106685 (2) Full qty
27
Spina
106686 (2) Full qty
28
Alberino comando frizione
106962 (1) Full qty
28
Albei ino comando frizione
109792 (1) Full qty
28
Clutch Lever Shaft 208/308/328…
109792 (1) Full qty
29
BUSHING
103226 (1) Full qty
30
Bush
103227 (1) Full qty
31
SELF-LUBRICATING BUSHING
106500 (1) Full qty
32
Gasket or Seal
107688 (1) Full qty
32
Gasket for inspection cover
109405 (1) Full qty
33
Washer
108430 (2) Full qty
34
Nut
12574121 (2) Full qty
35
Clutch control lever
108428 (1) Full qty
36
Pin
108429 (2) Full qty
