Fuel Pump And Pipes

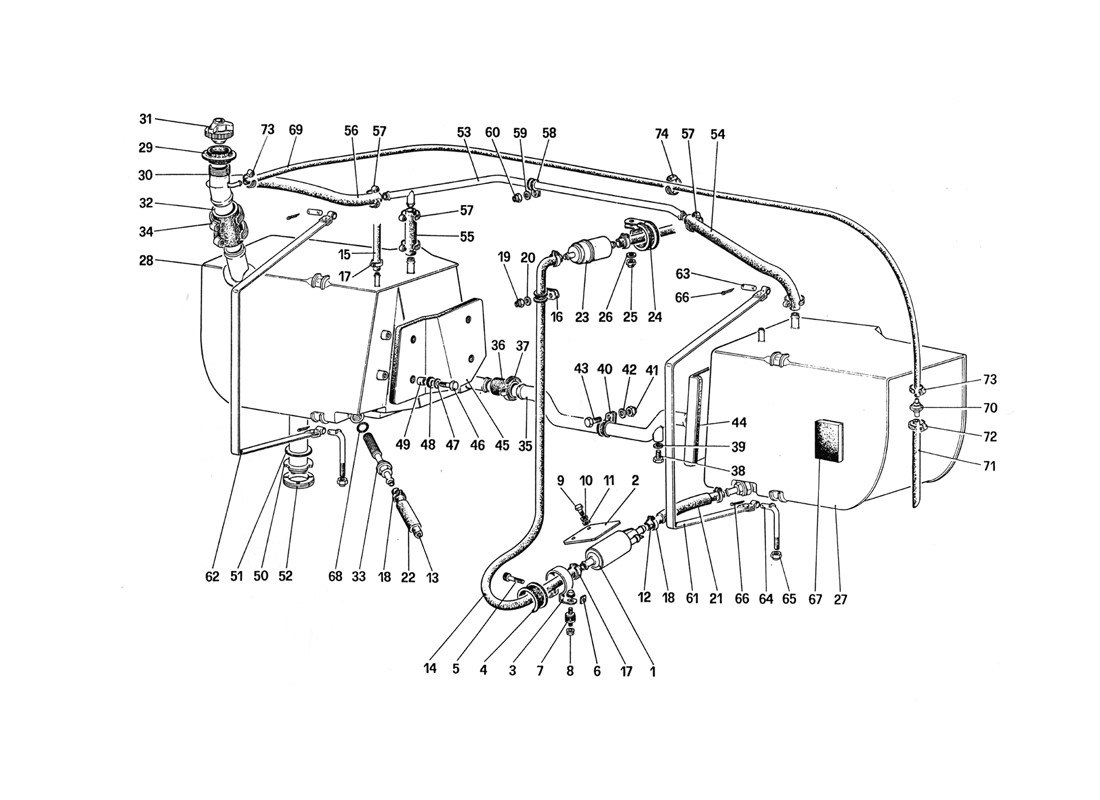

Schematic: Fuel Pump And Pipes
Schematic: Fuel Pump And Pipes
Loc
Part
Cond       Price
1
Fuel pump
122089 (2) Full qty
2
Protective shield
124645 (2) Full qty
3
Clamp for pump
123847 (2) Full qty
4
Fuel Pump Rubber Insert
New       £ 17.26
123848 (2) Full qty
FU15922n
5
Screw
14305521 (2) Full qty
6
Square nut
14089311 (2) Full qty
7
Rubber Mount
New       Price on Enquiry
113021 (6) Full qty
CS11806n
8
Nut
13831801 (12) Full qty
9
Vite
10977721 (4) Full qty
10
Flat Washer
12643701 (4) Full qty
11
Washer
106850 (4) Full qty
12
Right pipe
123161 (1) Full qty
13
Left pipe
123162 (1) Full qty
14
Pipe from pump to filter
123158 (2) Full qty
15
Return pipe
123160 (2) Full qty
16
Hose fastening bracket
10441490 (4) Full qty
17
Clamp
12179490 (10) Full qty
18
Clamp
12179590 (4) Full qty
19
Nut
New       Price on Enquiry
15896211 (4) Full qty
CH11996n
20
Washer
106850 (4) Full qty
21
Hose Sleeve
New       Price on Enquiry
125090 (1) Full qty
FU15550n
22
Pipe protection
125122 (1) Full qty
23
Fuel Filter GTO
122088 (2) Full qty
24
Bracket
113909 (2) Full qty
25
Nut
16104111 (2) Full qty
26
Washer
12646701 (2) Full qty
27
Right fuel tank
123730 (1) Full qty
28
Left fuel tank
123731 (1) Full qty
29
Gas Cap Housing/Trunk Seal Gasket 275
New       Price on Enquiry
101465 (1) Full qty
BW10224n
29
Fuel Filler Neck Seal
101465 (1) Full qty
30
Filler neck
124403 (1) Full qty
31
Cap for filler
122589 (1) Full qty
32
Sleeve
114278 (1) Full qty
33
Filter on tank
124211 (2) Full qty
34
Hose Clip
New       £ 2.95
12174790 (2) Full qty
FU00141n
35
Pipe, tanks connection
124688 (1) Full qty
36
Fuel Cross Over Hose
114277 (2) Full qty
36
Fuel Tanks Bridge Pipe Connecting Hose 512 BB
New       £ 17.46
114277 (2) Full qty
FU14423n
37
Clamp
12173890 (4) Full qty
38
Drain Plug
New       Price on Enquiry
10300771 (1) Full qty
SU11702n
39
Gasket
10278650 (1) Full qty
40
Pipe supporting clamp
106195 (1) Full qty
41
Nut
12574211 (1) Full qty
42
Flat Washer
12643701 (1) Full qty
43
Screw
10902121 (1) Full qty
44
R.H. shield
124733 (1) Full qty
45
LH. shield
124734 (1) Full qty
46
Screw
124830 (8) Full qty
47
Washer
124832 (8) Full qty
48
Gasket
124831 (8) Full qty
49
Bush
50086909 (8) Full qty
50
Sender for fuel level
124225 (1) Full qty
51
Gasket
116792 (1) Full qty
52
Roll Over Valve/ Vent Pipe Com…
169937 (1) Full qty
53
Breather pipe
124699 (1) Full qty
54
Fuel Tank Breather Hose
New       Price on Enquiry
117873 (1) Full qty
FT10026n
55
Pipe
114917 (1) Full qty
56
Pipe
124718 (1) Full qty
57
Clamp
12179590 (6) Full qty
58
Hose fastening bracket
10441890 (2) Full qty
59
Washer
12648201 (2) Full qty
60
Nut
12574211 (2) Full qty
61
Right strap securing fuel tank…
124727 (1) Full qty
62
Left strap securing fuel tank
124729 (1) Full qty
63
Pin
103447 (2) Full qty
64
Tie rod for strap
12311271 (2) Full qty
65
Nut
16104111 (2) Full qty
66
Cotter pin
10796401 (6) Full qty
67
Shim
124379 (32) Full qty
68
Garter spring
122791 (2) Full qty
69
Breather hose
116851 (1) Full qty
70
Tank ventilation valve
120444 (1) Full qty
71
Pipe
116770 (1) Full qty
72
Clamp
12179090 (1) Full qty
73
Clamp
12179490 (2) Full qty
74
Clamp
103755 (1) Full qty
