Cylinder Head Assembly

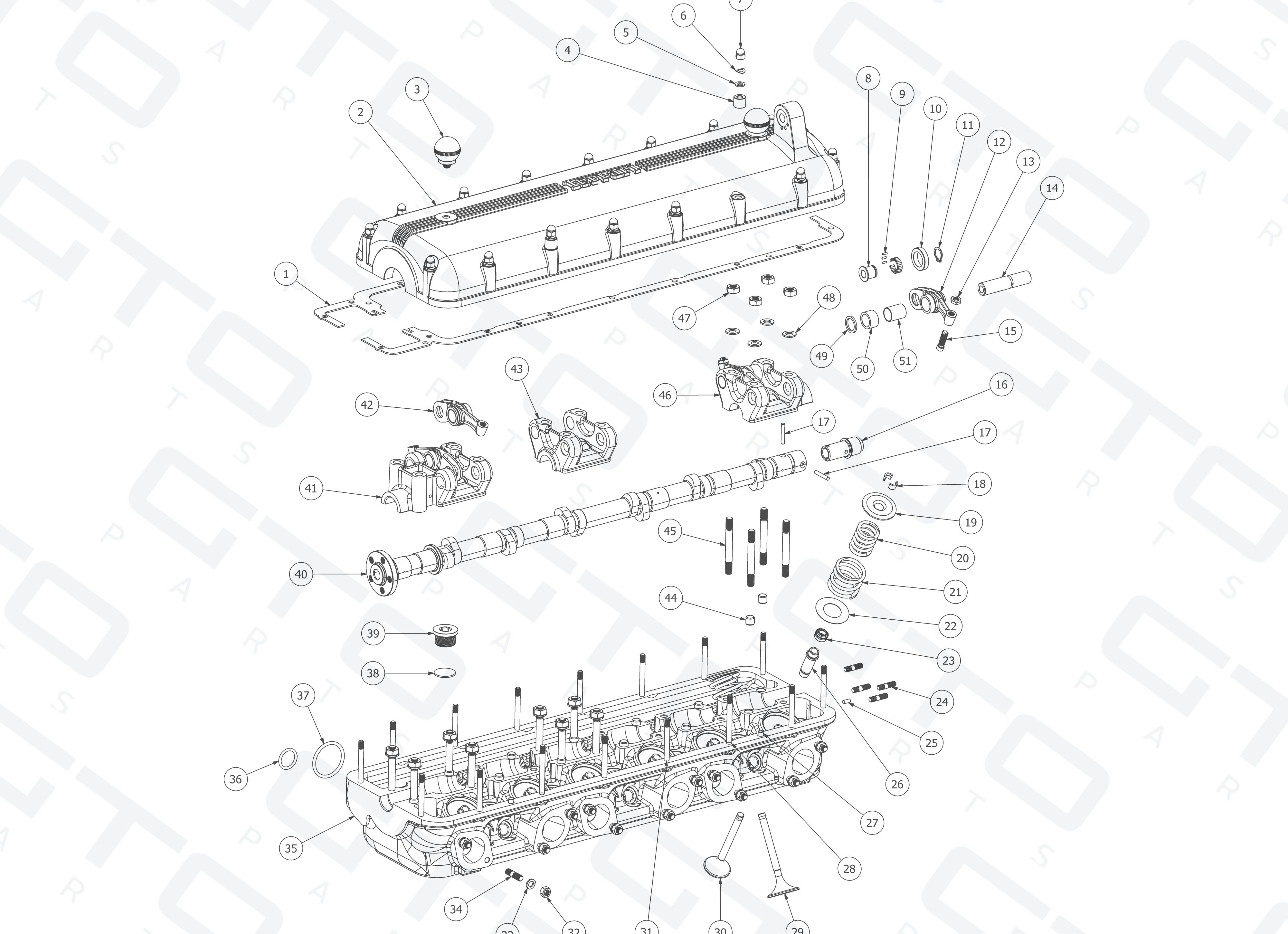

Schematic: Cylinder Head Assembly
Schematic: Cylinder Head Assembly
Loc
Part
Cond       Price
1
Cam Cover Gasket 250 Early 16 Stud L-H
New       £ 38.67
16405 (2) Full qty
CH00346n
2
Cam Cover Set 250 SWB Comp LHD
New       £ 2964.50
CH11933n (2) Full qty
CH11933n
3
Cam Cover Knob
New       £ 39.33
17415 (4) Full qty
CH11534n
4
Ht Lead Spacer
New       £ 8.42
28580 (4) Full qty
EL99310n
4
Spacer 365 GT 330 GT/C 275GTB/GTS
New       £ 1.01
28580 (4) Full qty
GE00533n
5
M6 Plain Washer BZP
New       Price on Enquiry
GE35621n (32) Full qty
GE35621n
6
Selector detent spring bush 250
New       Price on Enquiry
100749 (32) Full qty
GB00228n
6
Selector Spring Bush
New       Price on Enquiry
100749 (32) Full qty
GB10493n
7
Cam/Chain Cover Nuts
101239 (32) Full qty
7
Cam/Chain Cover Nuts
101239 (32) Full qty
7
Cam Cover Domed Nut 6x12 Tall
New       £ 7.21
101239 (32) Full qty
CH11808n
8
Cam Roller Pin Support
New       £ 24.15
9160781 (24) Full qty
CH00064n
9
Rocker Needle Rollers 2x6mm (600 Per Engine)
New       £ 0.55
CH00036n (600) Full qty
CH00036n
10
Cam Rollers (27mm)
New       £ 29.65
16643/27 (24) Full qty
CH00038n
11
Roller Pin Circlip
New       £ 0.31
11066276 (24) Full qty
CH00034n
12
Rocker Arm RH 250/275
New       £ 189.95
17682 (12) Full qty
CH00040n
12
Rocker Arm LH 250/275
New       £ 189.95
17682 (12) Full qty
CH00055n
12
Rocker Arm LH
New       Price on Enquiry
17682 (12) Full qty
CH00171n
12
Rocker Arm LH
Used       £ 119.39
17682 (12) Full qty
CH00171u
13
Tappet Screw Lock-Nut
New       £ 7.21
93818 (24) Full qty
CH00046n
14
Rocker Shaft
New       £ 52.80
16177 (24) Full qty
CH00088n
14
Rocker Shaft
Used       £ 48.40
16177 (24) Full qty
CH00088u
15
Tappet Screw Elephant-Foot
New       £ 28.50
17880E (24) Full qty
CH00059n
16
Cam Distributor Drive
New       £ 263.95
17056 (2) Full qty
EL99017n
17
Angle Drive, Drive Pin 250 330
New       Price on Enquiry
100279 (4) Full qty
CH20066n
18
Valve Collets
New       £ 6.66
100244 (48) Full qty
CH00120n
19
Valve Spring Retainers 250
New       £ 22.57
17400 (24) Full qty
CH00104n
20
Valve Spring Inner 250
New       £ 12.64
1665 (24) Full qty
CH11136n
21
Valve Spring Outer 250
New       £ 9.85
17398 (24) Full qty
CH11134n
21
Valve Spring Outer
New       Price on Enquiry
17398 (24) Full qty
CH11138n
22
Valve Spring Shims 250/275 [42.0x21.0x1.65mm]
New       £ 4.09
17414 (24) Full qty
CH00076n
22
Valve Spring Shims 250/275 [35.0x19.4x0.80mm]
New       £ 4.09
17414 (24) Full qty
CH00078n
22
Valve Spring Shims 275 [42.4x19.0x0.50mm]
New       £ 4.79
17414 (24) Full qty
CH00080n
22
Valve Spring Shims 275 [42.4x19.0x0.50mm]
Used       Price on Enquiry
17414 (24) Full qty
CH00080u
22
Valve Spring Shims 250 [40.5x21.7x0.50mm]
New       £ 3.87
17414 (24) Full qty
CH00082n
22
Valve Spring Shims 250 [40.5x21.7x0.50mm]
Used       Price on Enquiry
17414 (24) Full qty
CH00082u
22
Valve Spring Shims 250 [40.5x21.7x1.00mm]
New       £ 4.02
17414 (24) Full qty
CH00083n
22
Valve Spring Shims [42.0x21.0x0.75mm]
New       £ 4.09
17414 (24) Full qty
CH00090n
22
Valve Spring Shims 250/275 (1.640"x0.650"x0.60")
New       £ 3.75
17414 (24) Full qty
CH00123n
23
Valve Stem Oil Seal 8mm
New       £ 1.64
119766A (24) Full qty
CH00098n
23
Valve Seal(100243) Rubber
New       Price on Enquiry
119766A (24) Full qty
CH11976n
24
Stud (M6x24) Angle Drive/Water Pump
New       £ 3.58
CH11551n (8) Full qty
CH11551n
25
Distrbutor Angle Drive Dowel
New       £ 2.37
93338 (4) Full qty
CH11548n
26
Valve Guide 250
New       £ 29.65
9160413 (24) Full qty
CH11914n
27
Cam Cover Location Dowel
New       Price on Enquiry
CH20069n (4) Full qty
CH20069n
28
Cam Cover Stud (M6x74)
New       £ 8.28
95920119 (4) Full qty
CH11981n
29
Inlet Valve 38mm High Collet
17690 (12) Full qty
29
Inlet Valve (38.2x96mm)
New       £ 54.45
17690 (12) Full qty
CH11128n
29
Inlet Valve [38mm High Collet]
New       £ 54.45
17690 (12) Full qty
CH11461n
30
Exhaust Valve [32.4x95.6mm]
17692 (12) Full qty
30
Exhaust Valve [32.4x95.6mm]
17692 (12) Full qty
30
Exhaust Valve (32.3x95.5mm)
17692 (12) Full qty
30
Exhaust Valve (32.4x94) 250/27…
17692 (12) Full qty
31
Stud Cam/Chain Cover M6x65
New       £ 4.24
17245 + 17246 (28) Full qty
CH11510n
32
Exhaust Manifold Nut M7
10720240 (24) Full qty
33
M7 Spring Washer BZP
New       Price on Enquiry
GE35625n (24) Full qty
GE35625n
34
Exhaust Manifold Stud
92122 (24) Full qty
35
CYLINDER HEAD - 250 COMP - 74 MM CHAMBER - 36 MM INLET VALVE - LH/RH PAIR
New       £ 9982.50
CH12037n (2) Full qty
CH12037n
36
Water Manifold O Ring
New       £ 1.52
95860013 (2) Full qty
CS11811n
36
O Ring Seal 128
New       Price on Enquiry
95860013 (2) Full qty
GE00096n
37
Inlet Manifold O Ring
New       £ 3.03
95860106 (12) Full qty
FU11504n
37
O-Ring Intake 142
New       Price on Enquiry
95860106 (12) Full qty
FU14172n
38
Core Plug (Cylinder Head) 1"
New       £ 1.52
95940006 (8) Full qty
CH11554n
38
Core Plug 25.5mm Flat
New       Price on Enquiry
95940006 (8) Full qty
CH11930n
39
Cylinder Head Core Plug Upgrad…
9160513 (8) Full qty
39
Cylinder Head Core Plug Upgrade
New       £ 6.00
9160513 (8) Full qty
CH11522n
40
Cam Shaft D16 Pair 250,275
New       £ 3206.50
9160155/6 (2) Full qty
CH11516n
41
Medium Rocker Block
17242 (2) Full qty
41
Medium Rocker Block
New       Price on Enquiry
17242 (2) Full qty
CH11911n
42
Rocker Arm RH 250/275
New       £ 189.95
17682 (12) Full qty
CH00040n
42
Rocker Arm LH 250/275
New       £ 189.95
17682 (12) Full qty
CH00055n
42
Rocker Arm LH
New       Price on Enquiry
17682 (12) Full qty
CH00171n
42
Rocker Arm LH
Used       £ 119.39
17682 (12) Full qty
CH00171u
43
Small Rocker Block
17241 (4) Full qty
43
Small Rocker Block
New       Price on Enquiry
17241 (4) Full qty
CH11913n
44
Dowel (Rocker Block)
New       £ 4.79
93218 (24) Full qty
CH00161n
45
Stud Rocker Block Housing (M8x1.25 - x1 x70mm)
New       £ 8.42
94300 (48) Full qty
CH11506n
46
Large Rocker Block
17240 (2) Full qty
46
Large Rocker Block
New       Price on Enquiry
17240 (2) Full qty
CH11909n
47
M8x1 Nut (14mm Hex)
New       £ 2.48
GE00543n (48) Full qty
GE00543n
48
M8 Plain Washer Black
New       £ 1.08
GE07666n (48) Full qty
GE07666n
49
Rocker Shaft Spacer Small
New       £ 6.00
17246 (24) Full qty
CH11995n
50
Rocker Shaft Spacer Set (24)
New       £ 471.85
17245 (24) Full qty
CH00074n
50
Rocker Shaft Spacer Large
New       £ 16.45
17245 (24) Full qty
CH11997n
51
Rocker Bush
New       £ 16.51
16698 (24) Full qty
CH00044n
