Fuel Pump And Pipes

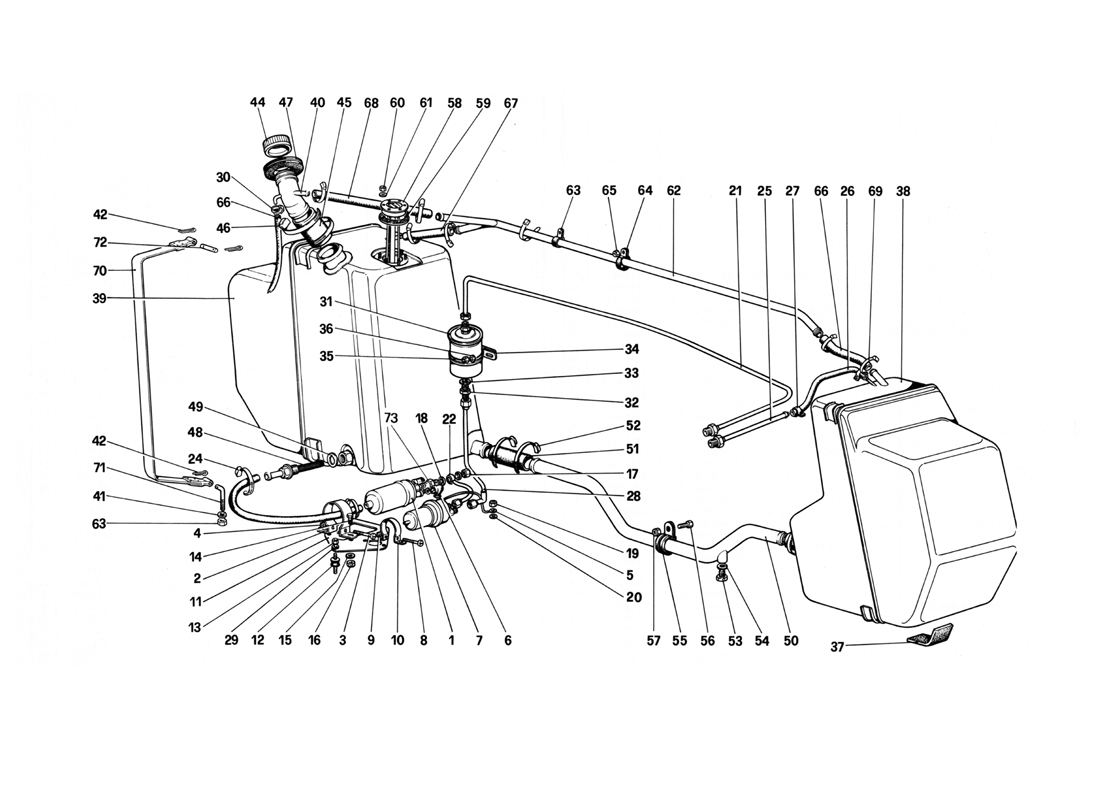

Schematic: Fuel Pump And Pipes
Schematic: Fuel Pump And Pipes
Loc
Part
Cond       Price
1
Pompa carburante
119291 (1) Full qty
2
Pump retaining clamp
113673 (1) Full qty
3
Screw
10377311 (1) Full qty
4
Square nut
14089311 (1) Full qty
5
Earth cable
115153 (1) Full qty
6
Wire Rubber Boot
New       Price on Enquiry
107003 (2) Full qty
EL99222n
7
Fuel Accumulator 0438170004
113978 (1) Full qty
8
Screw
10376111 (1) Full qty
9
Square nut
14089311 (1) Full qty
10
Accumulator retaining clamp
113674 (1) Full qty
11
Support pump accumulator
115547 (1) Full qty
12
Fuel Pump Mounting
102947 (3) Full qty
12
Mount
New       Price on Enquiry
102947 (3) Full qty
GE00644n
13
Dado autobloccante
12574221 (5) Full qty
14
Screw
10902121 (4) Full qty
15
Washer
10519421 (2) Full qty
16
Dado autobloccante
12574221 (4) Full qty
17
Drain plug
10183217 (1) Full qty
18
Fuel Pump Washer 400/365/Testarossa
New       £ 1.28
11270160 (2) Full qty
FU15801n
19
Nut
15896221 (1) Full qty
20
Washer
10571571 (1) Full qty
21
Pipe, filter to metering devic…
116571 (1) Full qty
22
Fuel Pipe
119305 (1) Full qty
23
Fuel Tank Filter to Fuel Pump Hose
New       Price on Enquiry
119281 (1) Full qty
FT10114n
24
Clamp
12179590 (2) Full qty
25
Return pipe
115234 (1) Full qty
26
RUBBER HOSE
114879 (1) Full qty
27
Clamp
12179490 (2) Full qty
28
Fuel Pump to Regulator Hose
New       £ 49.50
119278 (1) Full qty
FU15681n
29
Washer
10519421 (1) Full qty
30
Fascetta
101296 (1) Full qty
31
Fuel Filter 71051
115738 (1) Full qty
32
Union on delivery side
109797 (1) Full qty
33
Gasket
113910 (1) Full qty
34
Sheathed bracket for filter
115140 (1) Full qty
35
Upper and Lower Front Ball Joint Nut 246
New       £ 1.05
12574521 (1) Full qty
FS10435n
36
Washer
13550401 (1) Full qty
37
Flat Washer
12643701 (1) Full qty
38
Serbatoio Dx.
118239 (1) Full qty
39
Serbatoio Sx.
118243 (1) Full qty
40
Fuel Filler Neck 308
109321 (1) Full qty
41
Spacer
13605711 (1) Full qty
42
Cotter pin
10796401 (6) Full qty
43
Shim for tanks
107889 (10) Full qty
44
Filler cap
113401 (1) Full qty
45
Manicotto per bocchettone
114282 (1) Full qty
46
Hose Clip
New       £ 2.95
12174790 (2) Full qty
FU00141n
47
Gas Cap Housing/Trunk Seal Gasket 275
New       Price on Enquiry
101465 (1) Full qty
BW10224n
47
Fuel Filler Neck Seal
101465 (1) Full qty
48
Filter
116870 (1) Full qty
49
Gasket for fuel filter
117884 (1) Full qty
50
Fuel Cross Over Pipe
115482 (1) Full qty
51
Fuel Cross Over Hose
114277 (2) Full qty
51
Fuel Tanks Bridge Pipe Connecting Hose 512 BB
New       £ 17.46
114277 (2) Full qty
FU14423n
52
Clamp
108785 (4) Full qty
53
Drain Plug
New       Price on Enquiry
10300771 (1) Full qty
SU11702n
54
Gasket
10278650 (1) Full qty
55
Pipe supporting clamp
106195 (1) Full qty
56
Screw
10902121 (1) Full qty
57
Nut
12574211 (1) Full qty
58
Level gauge control
108644 (1) Full qty
59
Fuel Tank Sender Gasket
New       £ 12.05
101462 (1) Full qty
FT10041n
59
Fuel Sending Unit Gasket
New       Price on Enquiry
101462 (1) Full qty
FU14074n
60
Nut
10794011 (6) Full qty
61
Washer
106848 (6) Full qty
62
Breather pipe
108521 (1) Full qty
63
Nut
16104111 (2) Full qty
64
Small bracket with sheathing
10441590 (3) Full qty
65
Nut
12574211 (3) Full qty
66
Pipe
109353 (2) Full qty
67
Tubo sfiato
106666 (1) Full qty
68
Pipe
109354 (1) Full qty
69
Clamp
12179590 (6) Full qty
70
Vertical band for tanks
109328 (2) Full qty
71
Tie rod for strap
12311271 (2) Full qty
72
Pin
103447 (2) Full qty
73
Fuel Pump Check Valve
120098 (1) Full qty
