Fuel system

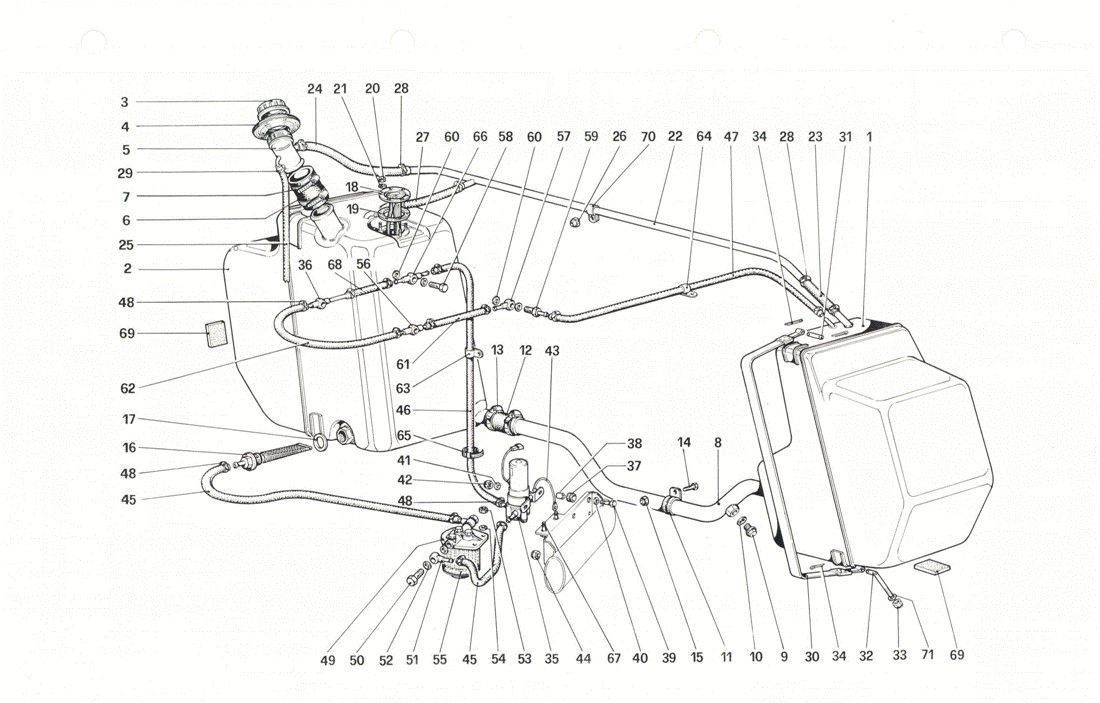

Schematic: Fuel system
Schematic: Fuel system
Loc
Part
Cond       Price
1
Serbatoio carburante Dx.
108137 (1) Full qty
2
Serbatoio carburante Sx.
108138 (1) Full qty
3
Tappo di scarico per serbatoi
101453 (1) Full qty
4
Gas Cap Housing/Trunk Seal Gasket 275
New       Price on Enquiry
101465 (1) Full qty
BW10224n
4
Fuel Filler Neck Seal
101465 (1) Full qty
5
Fuel Filler Neck 308
109321 (1) Full qty
6
Manicotto per bocchettone
114282 (1) Full qty
7
Hose Clip
New       £ 2.95
12174790 (2) Full qty
FU00141n
8
Tubo collegamento serbatoi
106675 (1) Full qty
9
Drain Plug
New       Price on Enquiry
10300771 (1) Full qty
SU11702n
10
Gasket
10278650 (1) Full qty
11
Pipe supporting clamp
106195 (1) Full qty
12
Fuel Cross Over Hose
114277 (2) Full qty
12
Fuel Tanks Bridge Pipe Connecting Hose 512 BB
New       £ 17.46
114277 (2) Full qty
FU14423n
13
Clamp
108785 (4) Full qty
14
Screw
10902121 (1) Full qty
15
Nut
12574211 (1) Full qty
16
Filtro carburante sul serbatoi…
104528 (1) Full qty
17
Guarnizione filtro carburante
102645 (1) Full qty
18
Level gauge control
108644 (1) Full qty
19
Fuel Tank Sender Gasket
New       £ 12.05
101462 (1) Full qty
FT10041n
19
Fuel Sending Unit Gasket
New       Price on Enquiry
101462 (1) Full qty
FU14074n
20
Nut
10794011 (6) Full qty
21
Washer
106848 (6) Full qty
22
Breather pipe
108521 (1) Full qty
23
Pipe
109353 (1) Full qty
24
Pipe
109354 (1) Full qty
25
Tubo sfiato
106666 (1) Full qty
26
Nut
12574211 (3) Full qty
27
Pipe
109353 (1) Full qty
28
Clamp
100507 (6) Full qty
29
Fascetta
101296 (1) Full qty
30
Vertical band for tanks
109328 (2) Full qty
31
Pin
103447 (2) Full qty
32
Tie rod for strap
12311271 (2) Full qty
33
Nut
16104111 (2) Full qty
34
Cotter pin
10796401 (6) Full qty
35
Pompa benzina elettrica
105454 (1) Full qty
36
UNION
107795 (1) Full qty
37
Cable Grommet
New       Price on Enquiry
103549 (2) Full qty
AC00210n
38
Spacer
103550 (2) Full qty
39
Screw
10902611 (2) Full qty
40
Flat Washer
12643701 (2) Full qty
41
Spring washer
12644401 (2) Full qty
42
Nut
12574211 (1) Full qty
43
Treccia per rnassa
106153 (1) Full qty
44
Nut
16104111 (3) Full qty
45
Stainless Steel Braided Petroflex (Facet) Hose 3/8" 10mm ID
New       £ 18.15
106654 (2) Full qty
FU15707n
46
Tubo dal la pompa al raccordo …
103927 (1) Full qty
47
Tubo dal carburatoi i dl sorba…
103928 (1) Full qty
48
Clamp
10168590 (14) Full qty
49
Fiitro benzina (FISPA)
103401 (1) Full qty
49
Rear Fuel Filter Assembly
New       £ 520.85
107486 (1) Full qty
FT10013n
49
Rear Fuel Filter Bowl 275
New       £ 247.50
107486 (1) Full qty
FT10091n
50
Union
103402 (2) Full qty
51
Orientabile uscita carburante
105826 (2) Full qty
52
GASKET
103403 (4) Full qty
53
Nut
16100811 (2) Full qty
54
Washer
12601371 (2) Full qty
55
Rear Fuel Filter Element Large (26.617.00)
New       £ 24.02
95180050 (1) Full qty
FU00189n
55
Fispa Fuel Pump Filter
95180050 (1) Full qty
56
UNION
106199 (1) Full qty
57
UNION
106200 (1) Full qty
58
Union
10181717 (3) Full qty
59
Union
108032 (1) Full qty
60
Gasket
10296160 (8) Full qty
61
Tubo collegamento carburatori
106201 (1) Full qty
62
Tubo colleyarnento carburatori…
106202 (1) Full qty
63
Fascetta sostegno valvola
10418600 (2) Full qty
64
Fascetta sostegno tubo
10418400 (1) Full qty
65
Fascetta
105549 (1) Full qty
66
UNION
107793 (1) Full qty
67
Bolt
16043621 (2) Full qty
68
Tubo corto colegamento carbura…
105489 (2) Full qty
69
Shim for tanks
107889 (10) Full qty
70
Small bracket with sheathing
10441590 (3) Full qty
71
Spacer
13605711 (2) Full qty
