Timing Control

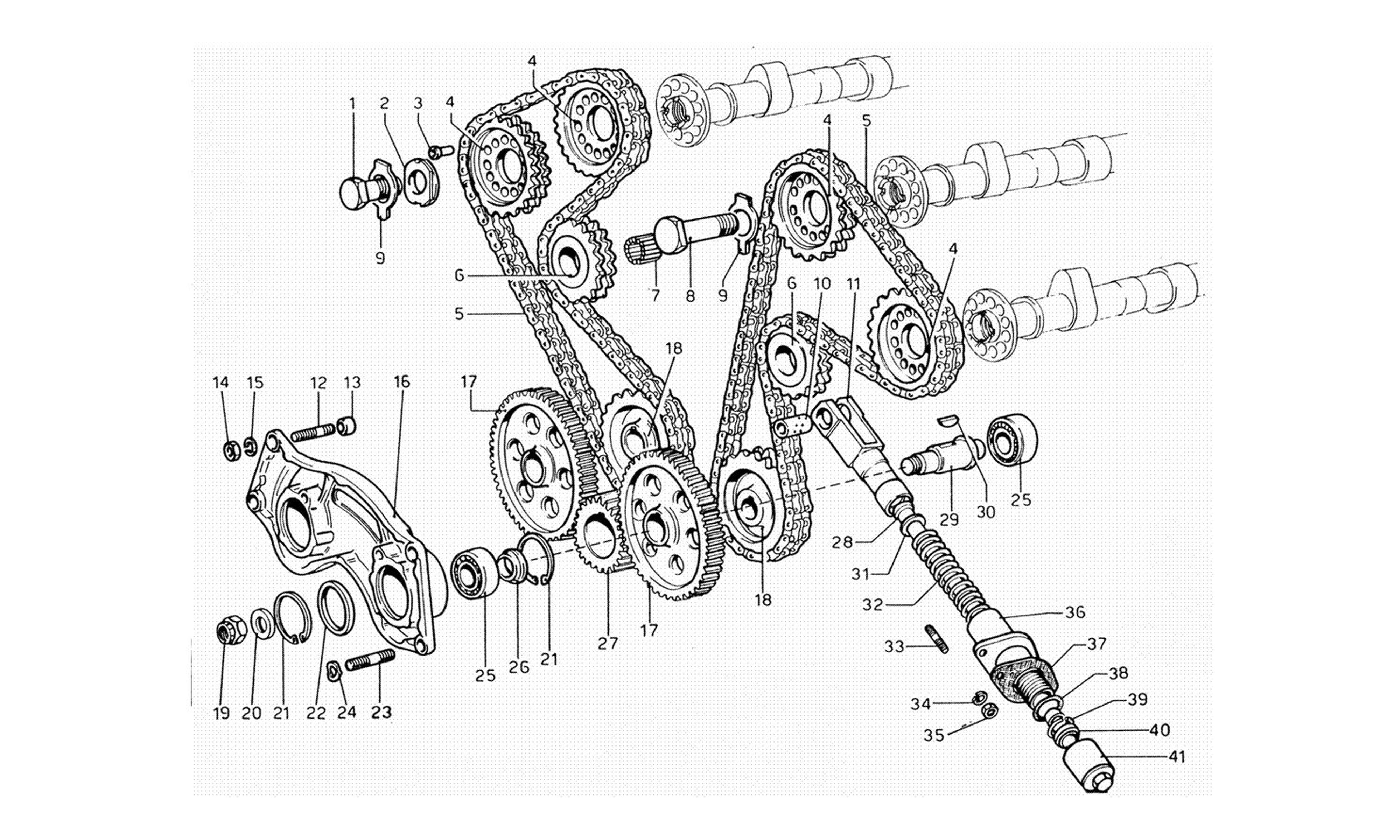

Schematic: Timing Control
Loc
Part
Cond       Price
1
SCREW
4146779 (3) Full qty
2
WASHER
4146764 (3) Full qty
3
Centering dowel
102827 (8) Full qty
4
GEAR
4146757 (4) Full qty
5
New       £ 77.00
4181156 (2) Full qty
TC14128n
6
TOOTHED GEAR
4181158 (2) Full qty
7
NEEDLE ROLLER
28044380 (38) Full qty
8
SCREW
4146765 (1) Full qty
9
New       £ 7.44
102777 (4) Full qty
CH11654n
10
PIVOT
4160884 (2) Full qty
11
SUPPORT
4195781 (2) Full qty
12
THREADED STUD
4146766 (2) Full qty
13
CENTERING DOWEL
4146789 (2) Full qty
14
NUT
16102411 (4) Full qty
15
WASHER
11198077 (4) Full qty
16
SUPPORT
4182708 (1) Full qty
17
DRIVEN GEAR
4146748 (2) Full qty
18
GEAR COMMAND
4146753 (2) Full qty
19
Nut
16109221 (2) Full qty
20
WASHER
4177555 (2) Full qty
21
Seeger Ring
11059475 (4) Full qty
22
WASHER
4182710 (2) Full qty
23
THREADED STUD
4146767 (2) Full qty
24
WASHER
12601570 (2) Full qty
25
New       Price on Enquiry
121145 (4) Full qty
CS11800n
25
New       £ 7.87
121145 (4) Full qty
ST00277n
26
SPACER
4146780 (2) Full qty
27
GEAR MOTOR SULL''ALBERO
4146749 (1) Full qty
28
PIN
4195791 (2) Full qty
29
SHAFT
4177554 (2) Full qty
30
KEY
10205920 (4) Full qty
31
WASHER
4195785 (2) Full qty
32
SPRING
4195784 (2) Full qty
33
Stud
13540921 (4) Full qty
34
WASHER
11197777 (4) Full qty
35
Nut
New       Price on Enquiry
15896211 (4) Full qty
CH11996n
36
BODY CHAIN ??TENSIONER
4195783 (2) Full qty
37
New       Price on Enquiry
4195788 (2) Full qty
TC14006n
38
New       Price on Enquiry
4195786 (2) Full qty
GE00384n
39
RING
4195790 (2) Full qty
40
BUSH
4195789 (2) Full qty
41
TENSIONER COMPLETE
4195782 (2) Full qty
41
NUT
4195787 (2) Full qty
