Body Shell - Inner Elements - Cabriolet

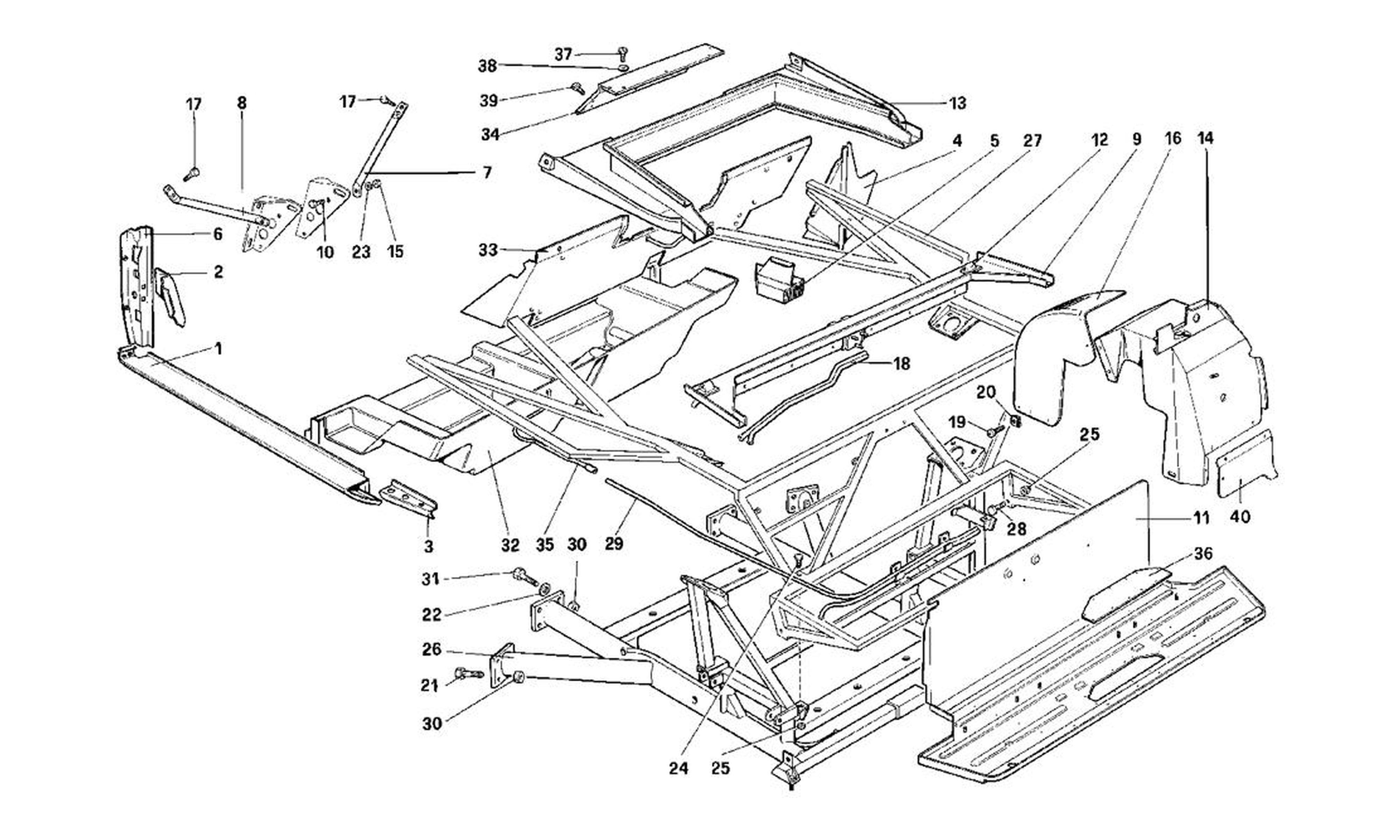

Schematic: Body Shell - Inner Elements - Cabriolet
Schematic: Body Shell - Inner Elements - Cabriolet
Loc
Part
Cond       Price
1
Framework, right underdoor
61436100 (1) Full qty
1
Framework, left underdoor
61436200 (1) Full qty
2
Footrest
119435 (1) Full qty
3
Support for left rear body sid…
116014 (1) Full qty
3
Support for right rear body si…
116013 (1) Full qty
4
Left shieldpanel
61641600 (1) Full qty
4
Right shieldpanel
61641400 (1) Full qty
5
L.H. wood stopper
61292900 (1) Full qty
5
R.H. wood stopper
61292800 (1) Full qty
6
Left seat for door hinge
60645500 (1) Full qty
6
R.H. seat for door hinge
60645400 (1) Full qty
6
L.H. seat for door hinge
60903500 (1) Full qty
7
Right tie rod
122014 (1) Full qty
7
Right tie rod
123418 (1) Full qty
8
Left tie rod
122015 (1) Full qty
8
L.H. tie rod
133059 (1) Full qty
8
Left tie rod
123419 (1) Full qty
9
Gasket support
61922100 (1) Full qty
9
Union between luggage room and…
61869200 (1) Full qty
10
Screw
10902221 (2) Full qty
11
Bottom plate for trunk
61778900 (1) Full qty
11
Bottom plate for trunk
61968800 (1) Full qty
11
Bottom plate for trunk
61839400 (1) Full qty
11
Bottom plate for trunk
62434400 (1) Full qty
12
Fixed hinge for trunk bonnet
60523700 (2) Full qty
13
Seat for top
61206400 (1) Full qty
14
Right rear wheelhouse
61841000 (1) Full qty
15
Nut
12574211 (2) Full qty
15
Right rear wheelhouse
61779100 (1) Full qty
16
Left rear wheelhouse
61779200 (1) Full qty
16
Front section of rear R.H. whe…
61158600 (1) Full qty
17
Front section of rear R.H. whe…
61265600 (1) Full qty
17
Screw
15924806 (4) Full qty
18
Cable for engine bonnet
61307200 (1) Full qty
18
Front section for L.H. wheelho…
61800600 (1) Full qty
19
Front section for L.H. wheelho…
61981200 (1) Full qty
19
Screw
15903802 (18) Full qty
20
Clip
60517200 (18) Full qty
21
Screw
15540621 (8) Full qty
22
Washer
12646921 (8) Full qty
23
Washer
12639701 (2) Full qty
24
Screw
11255921 (2) Full qty
25
Nut
12575811 (4) Full qty
26
(B) Removable frame
128021 (1) Full qty
27
Rear frame
124351 (1) Full qty
27
(B) Removable frame
128024 (1) Full qty
28
(B) Removable frame
128013 (1) Full qty
28
Screw
15977521 (2) Full qty
28
Rear frame
122866 (1) Full qty
29
(A) Removable frame
135904 (1) Full qty
29
Cable duct for trunk bonnet
61221100 (1) Full qty
30
Removable frame
135849 (1) Full qty
30
Nut
16105011 (16) Full qty
30
Cable duct for trunk bonnet
61436600 (1) Full qty
31
Removable frame
136473 (1) Full qty
31
Screw
15540521 (8) Full qty
32
Removable frame
136474 (1) Full qty
32
Housing for rear seats
61223200 (1) Full qty
33
Shieldpanel between passenger
61327100 (1) Full qty
34
Cover
61242300 (1) Full qty
35
Front cable duct for trunk bon…
61344700 (1) Full qty
36
Luggage bottom cover
60810000 (1) Full qty
37
Screw
13277011 (5) Full qty
38
Flat Washer
12643701 (5) Full qty
39
Screw
12377111 (5) Full qty
40
R.H. rear gravel
61816200 (1) Full qty
40
L.H. rear gravel
61816100 (1) Full qty
40
Left door seat
61696200 (1) Full qty
40
L.H. door seat
61214900 (1) Full qty
40
Right door seat
61214800 (1) Full qty
