Ac System - Water And Freon

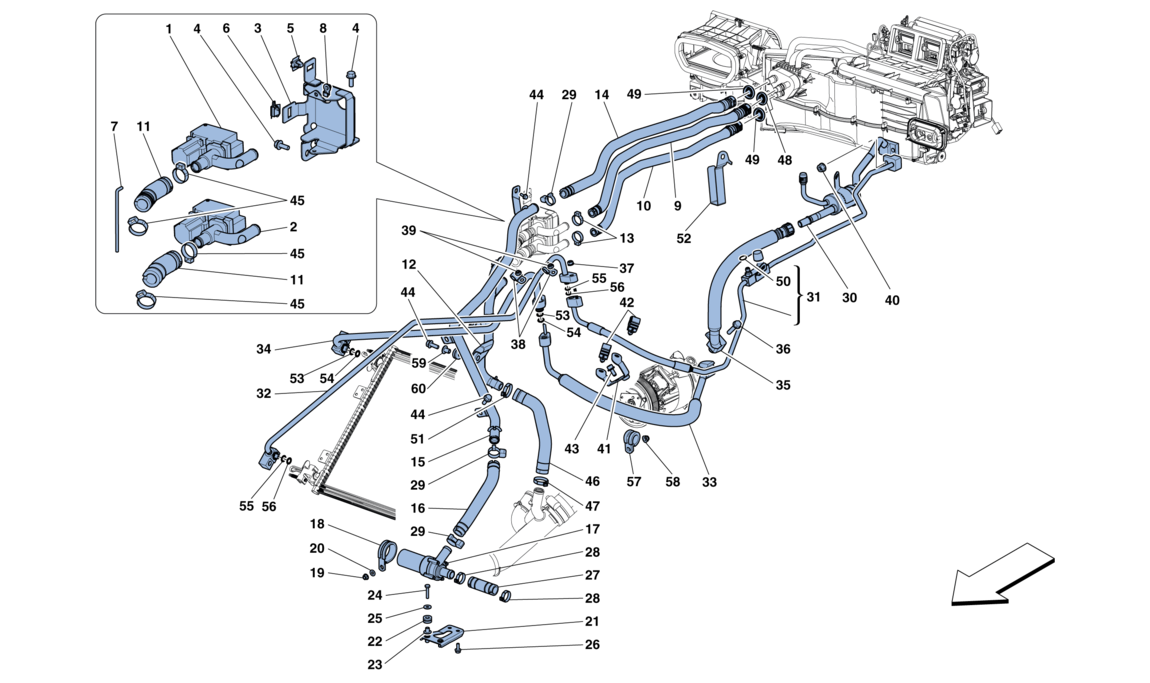

Schematic: Ac System - Water And Freon
Schematic: Ac System - Water And Freon
Loc
Part
Cond       Price
1
RH CYLINDER BANK TGK VALVE
67635900 (1) Full qty
2
LH CYLINDER BANK TGK VALVE
67444900 (1) Full qty
3
TGK VALVE MOUNTING BRACKET
84066200 (1) Full qty
4
SCREW
16286024 (3) Full qty
5
CLIP
253769 (1) Full qty
6
CLIP
252473 (1) Full qty
7
TGK VALVE FASTENER ROD
67933600 (1) Full qty
8
TIE-ROD RETAINER CLIP
64215300 (1) Full qty
9
PIPE FROM HEATER TO UPPER TGK …
266390 (1) Full qty
10
PIPE FROM HEATER TO LOWER TGK …
266391 (1) Full qty
11
CONNECTOR PIPE
267540 (2) Full qty
12
PIPE FROM TGK TO ENGINE
272507 (1) Full qty
13
COLLAR
13432670 (2) Full qty
13
COLLAR
10860270 (2) Full qty
14
PIPE FROM PUMP TO AC UNIT
276915 (1) Full qty
15
METAL PIPE TO PUMP
271752 (1) Full qty
16
CONNECTOR PIPE
267538 (1) Full qty
17
WATER RECIRCULATION PUMP
65460300 (1) Full qty
18
Bracket
107002 (1) Full qty
19
NUT
14059214 (1) Full qty
20
WASHER
12620477 (1) Full qty
21
PUMP MOUNTING BRACKET
268073 (1) Full qty
22
Cable Grommet
New       Price on Enquiry
103549 (2) Full qty
AC00210n
23
Spacer
New       Price on Enquiry
149707 (2) Full qty
CS11902n
24
SCREW
10902824 (2) Full qty
25
WASHER
12643724 (2) Full qty
26
SCREW
16286024 (2) Full qty
27
CONNECTOR PIPE
260083 (1) Full qty
28
COLLAR
13432970 (2) Full qty
29
COLLAR
13097190 (3) Full qty
30
PIPE WITH JACKET
266282 (1) Full qty
31
FILLER PIPE
266283 (1) Full qty
32
PIPE FROM CONDENSER TO DISCONN…
268518 (1) Full qty
33
PIPE FROM COMPRESSOR TO DISCON…
268369 (1) Full qty
34
PIPE FROM DISCONNECTOR UNION T…
268519 (1) Full qty
35
PIPE BETWEEN DISCONNECTOR UNIO…
257933 (1) Full qty
36
SCREW -M8 X 40-
16044024 (1) Full qty
37
NUT
14040614 (2) Full qty
38
Clamp
10441290 (1) Full qty
38
BRACKET WITH SHEATH -D. 12-
10441390 (1) Full qty
39
NUT
13046012 (2) Full qty
40
NUT
14066021 (1) Full qty
41
BRACKET -Fastening AC pipes to…
268487 (1) Full qty
42
CLIP
259508 (1) Full qty
42
CLIP
267177 (1) Full qty
43
SCREW -M6 X 14-
231616 (1) Full qty
44
SCREW
16286024 (5) Full qty
45
CLAMP
178053 (4) Full qty
45
COLLAR
10860270 (4) Full qty
46
CONNECTOR PIPE
273206 (1) Full qty
47
CLAMP
178053 (1) Full qty
47
RING CLAMP
13433370 (1) Full qty
47
COLLAR
10860270 (1) Full qty
48
GASKET
81970900 (1) Full qty
49
GASKET
81895900 (2) Full qty
50
O-RING
66309300 (1) Full qty
51
Clamp
13000390 (1) Full qty
51
COLLAR
10860270 (1) Full qty
52
BRACKET
272548 (1) Full qty
